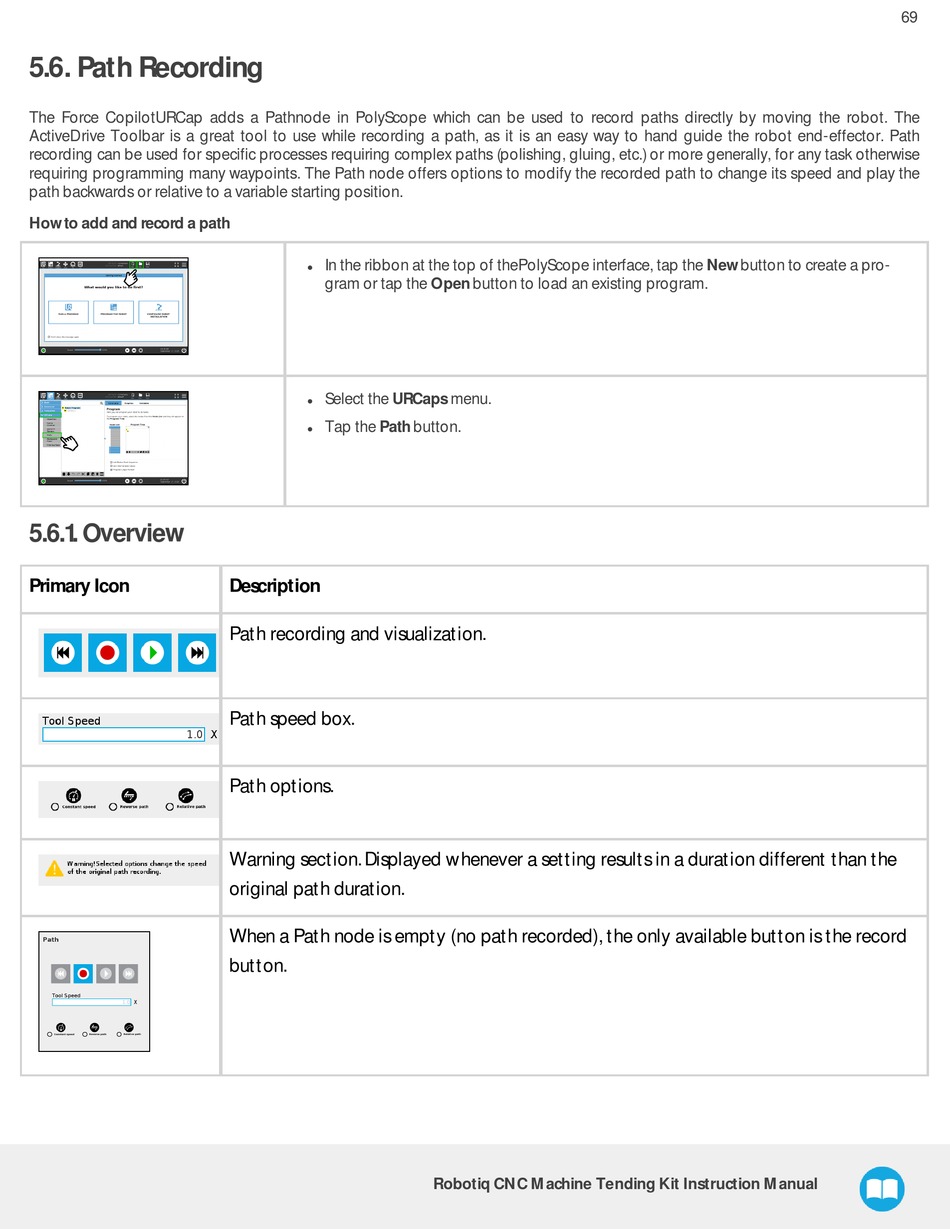

5.6. Path Recording

The Force CopilotURCap adds a Pathnode in PolyScope which can be used to record paths directly by moving the robot. The
ActiveDrive Toolbar is a great tool to use while recording a path, as it is an easy way to hand guide the robot end-effector. Path
recording can be used for specific processes requiring complex paths (polishing, gluing, etc.) or more generally, for any task otherwise
requiring programming many waypoints. The Path node offers options to modify the recorded path to change its speed and play the
path backwards or relative to a variable starting position.
How to add and record a path
5.6.1 . Overview
Primary Icon
In the ribbon at the top of thePolyScope interface, tap the New button to create a pro-
l
gram or tap the Open button to load an existing program.
Select the URCaps menu.
l
Tap the Path button.
l
Description
Path recording and visualization.
Path speed box.
Path options.
Warning section. Displayed whenever a setting results in a duration different than the
original path duration.
When a Path node is empty (no path recorded), the only available button is the record
button.
