the port of the installed card whose statistics you want to view—in
n
this case one of the Fast Ethernet ports of an installed CoreBuilder
7600 Fast Ethernet Interface card
the type of statistics you want to view
n
the sampling rate
n

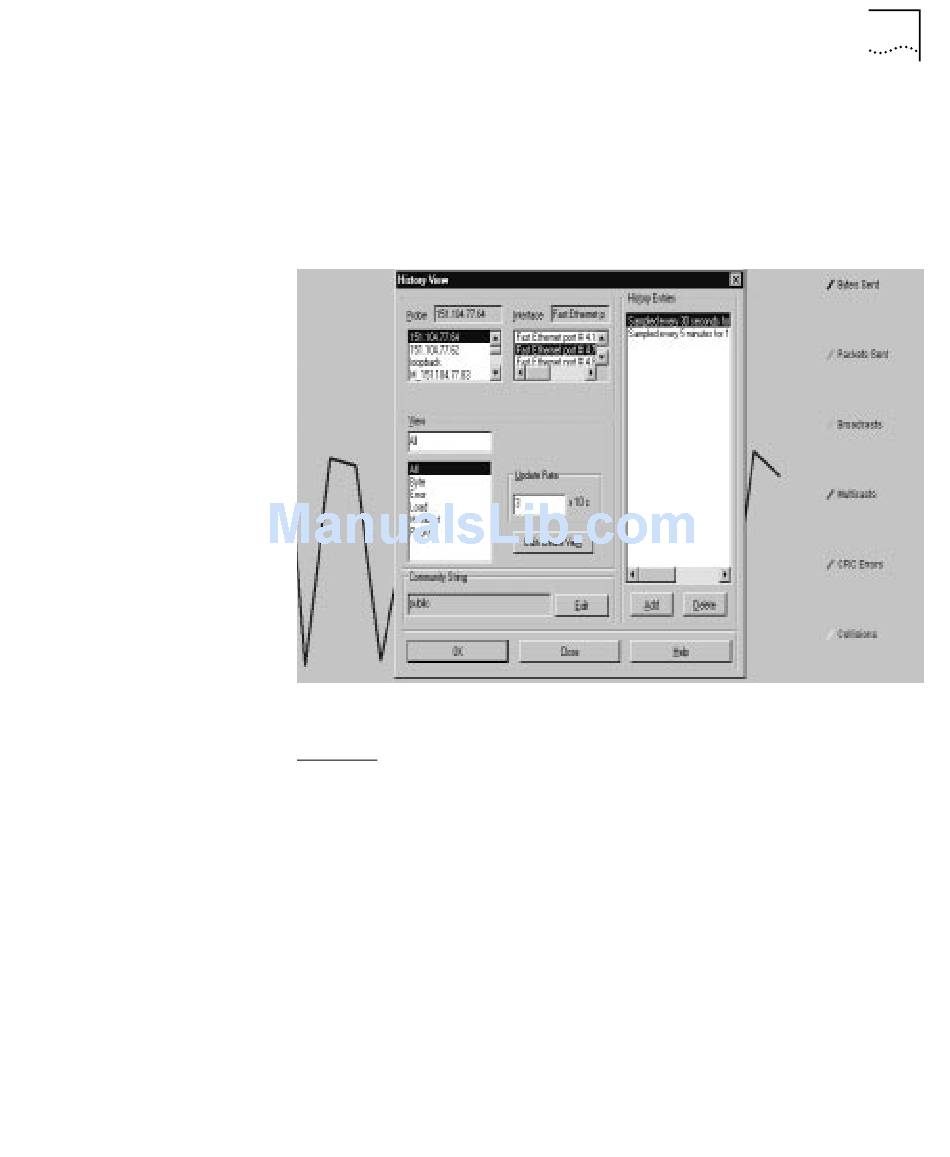

Figure 61 RMon History Selector
Figure 62 shows the LAN Sentry
variables. The graph shown shows the history of the rate of bytes sent
through the selected Fast Ethernet port. You can use the cursor to extract
the rate at a specific time. The blue boxes shown on the graph are places
where the cursor has been used to extract the rate.
Chassis Management — Single IP
TM display of RMON history of all selected
