Virtual LANs for
Three Workgroups
N
ETWORKS

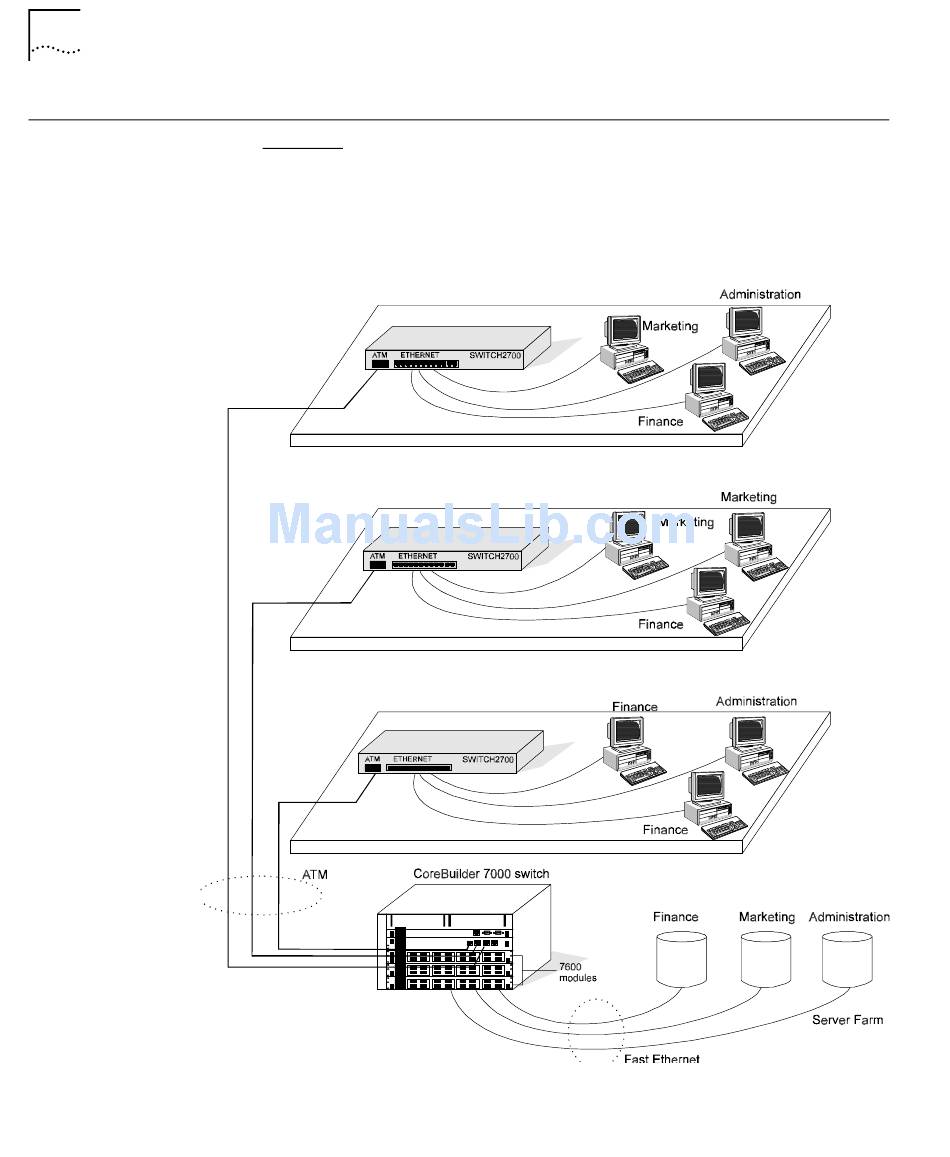

Figure 58 shows a network divided into three VLANs: Marketing, Finance,
and Administration. Even though these workgroups are distributed over
different floors, LAN Emulation allows them to be managed as if the users
were in the same physical location. Each VLAN communicates with its
server.
Figure 58 A Network With VLANs
