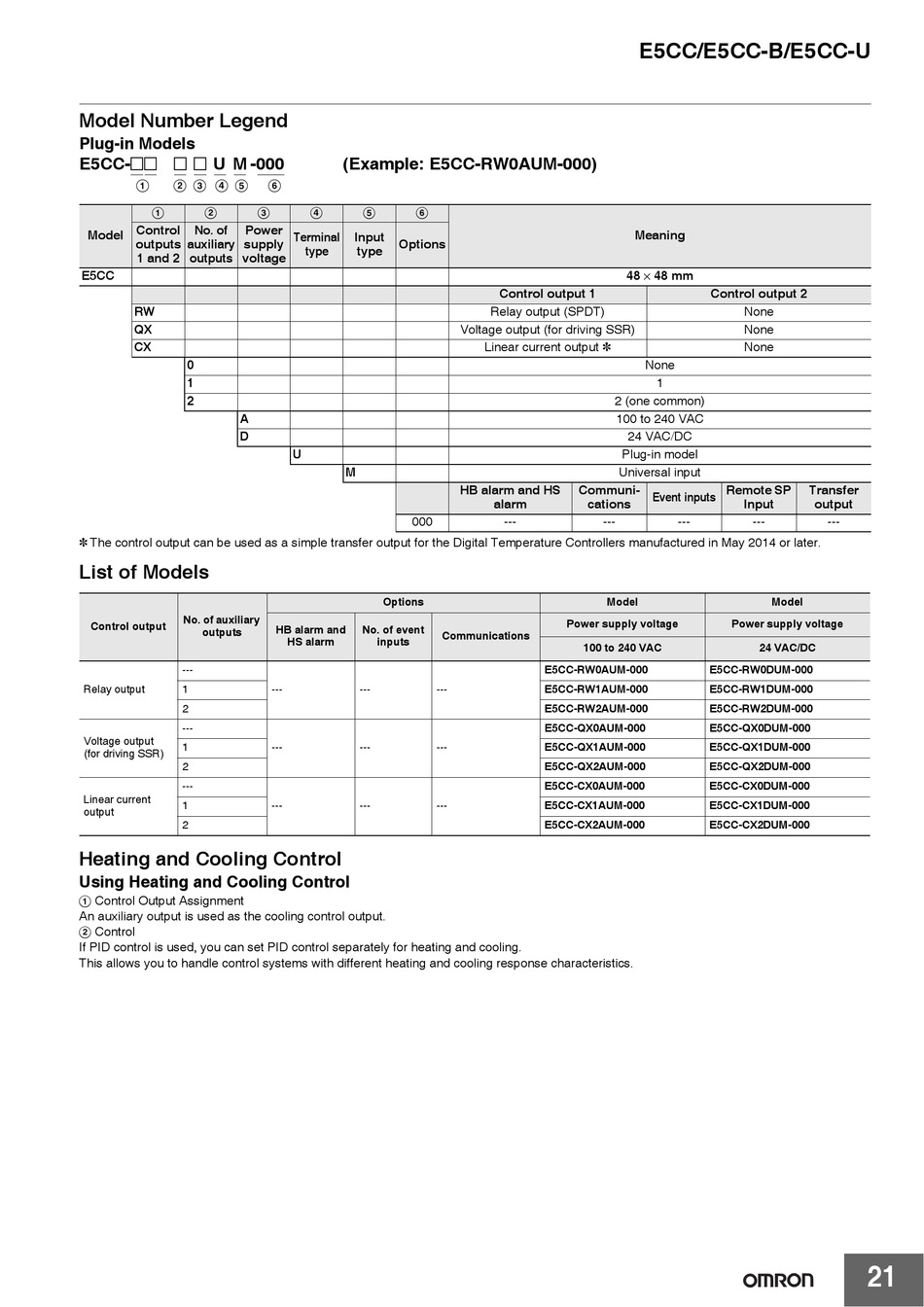

Model Number Legend
Plug-in Models
E5CC-@@ @ @ U M -000
A B C D E
A B
Control No. of Power
Model
outputs auxiliary supply
1 and 2 outputs voltage
E5CC
RW
QX
CX
0
1
2
A
D
* The control output can be used as a simple transfer output for the Digital Temperature Controllers manufactured in May 2014 or later.

List of Models

No. of auxiliary
Control output
outputs
---
Relay output 1
2
---
Voltage output
1
(for driving SSR)
2
---
Linear current
1
output
2
Heating and Cooling Control
Using Heating and Cooling Control
A Control Output Assignment
An auxiliary output is used as the cooling control output.
B Control
If PID control is used, you can set PID control separately for heating and cooling.
This allows you to handle control systems with different heating and cooling response characteristics.
(Example: E5CC-RW0AUM-000)
F
C D E F
Terminal Input
Options
type type
U
M
000
Options
HB alarm and No. of event
HS alarm inputs
--- ---
--- ---
--- ---
Control output 1
Relay output (SPDT)
Voltage output (for driving SSR)
Linear current output *
HB alarm and HS Communi-
alarm cations
--- ---
Model
Power supply voltage
Communications
100 to 240 VAC
E5CC-RW0AUM-000
--- E5CC-RW1AUM-000
E5CC-RW2AUM-000
E5CC-QX0AUM-000
--- E5CC-QX1AUM-000
E5CC-QX2AUM-000
E5CC-CX0AUM-000
--- E5CC-CX1AUM-000
E5CC-CX2AUM-000
E5CC/E5CC-B/E5CC-U
Meaning
48 × 48 mm
Control output 2
None
None
None
None
1
2 (one common)
100 to 240 VAC
24 VAC/DC
Plug-in model
Universal input
Remote SP
Event inputs
Input
--- ---
Model
Power supply voltage
24 VAC/DC
E5CC-RW0DUM-000
E5CC-RW1DUM-000
E5CC-RW2DUM-000
E5CC-QX0DUM-000
E5CC-QX1DUM-000
E5CC-QX2DUM-000
E5CC-CX0DUM-000
E5CC-CX1DUM-000
E5CC-CX2DUM-000
Transfer
output
---
21
