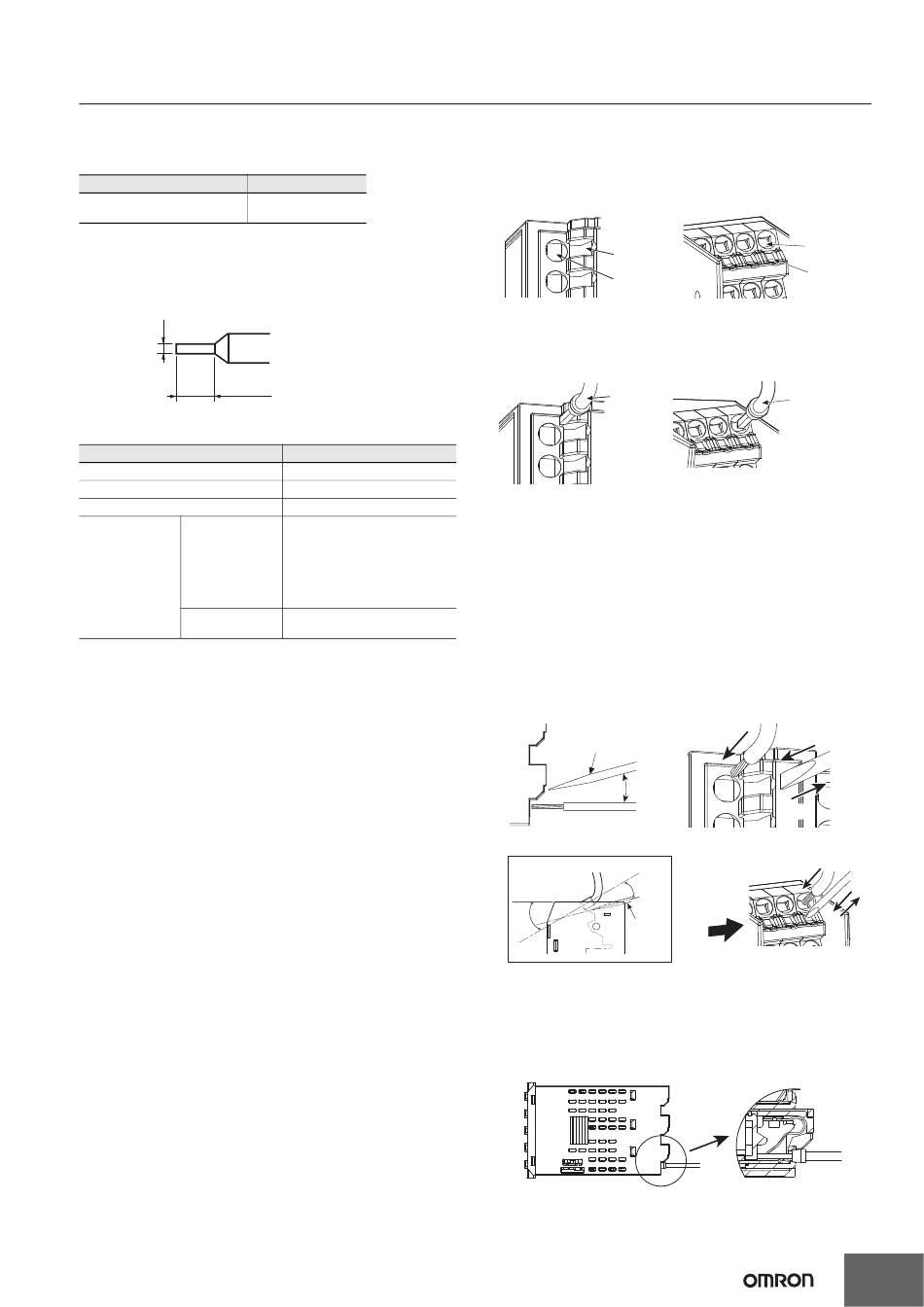

3. Recommended Wire Size and Ferrules
Wire Size
Use the wire sizes and stripping lengths given in the following table.
Wire Size
AWG24 to AWG18
(0.21 to 0.82 mm 2 )
Ferrules
Ferrules must be 0.8 to 1.4 mm in diameter.
The exposed conductor inserted into the terminal must be 8 to 12 mm
in length.
0.8 to 1.4mm
8 to 12mm
Recommended ferrules
Manufacturer name
Altech Corp.
Daido Solderless Terminal Mfg. Co.
J.S.T. Mfg. Co.
Single (1 wire)
Nichifu Co., Ltd.
Double (2 wires)
Stripping length
8 to 12 mm
Model number
2623.0
AVA-0.5
TUB-0.5
TGNTC-1.25-9T
TGVTC-1.25-11T
TGNTC-1.25-11T
TC0.3-9.5
TC1.25-11S-ST
TC1.25-11S
TC2-11S
TGWVTC-1.25-9T
TGWVTC-1.25-11T
E5@C-B (Controllers with Push-In Plus Terminal
Blocks)
1. Connecting Wires to the Push-In Plus Terminal Block
Part Names of the Terminal Block
E5CC-B/EC-B
Release hole
Terminal
(Insertion) hole
Connecting Wires with Ferrules and Solid Wires
Insert the solid wire or ferrule straight into the terminal block until the
end touches the terminal block.
E5CC-B/EC-B
Ferrules and
Solid Wires
If a wire is difficult to connect because it is too thin, use a flat-blade
screwdriver in the same way as when connecting stranded wire.
Connecting Stranded Wires
Use the following procedure to connect the wires to the terminal block.
1. Hold a flat-blade screwdriver at an angle and insert it into the
release hole. The angle should be between 10° and 15°.
If the flat-blade screwdriver is inserted correctly, you will feel the
spring in the release hole.
2. With the flat-blade screwdriver still inserted into the release hole,
insert the wire into the terminal hole until it strikes the terminal
block.
3. Remove the flat-blade screwdriver from the release hole.
E5CC-B/EC-B
Flat-blade screwdriver
10 to 15°
E5DC-B
∗
Side view of the product
10 to 15°
30°
Flat-blade
screwdriver
Checking Connections
• After the insertion, pull gently on the wire to make sure that it will
not come off and the wire is securely fastened to the terminal block.
• To prevent short circuits, insert stripped part of a stranded or solid
wire or the conductor part of a ferrule until it is hidden inside the
terminal insertion hole. (See the following diagram.)
E5@C/E5@C-T
E5DC-B
Terminal
(Insertion) hole
Release hole
E5DC-B
Ferrules and
Solid Wires
If a wire is difficult to
connect because it is
too thin, use a
flat-blade screwdriver
in the same way as
when connecting
stranded wire.
(2)
(1)
(3)
(2)
(3)
∗
Side view
of the product
(1)
