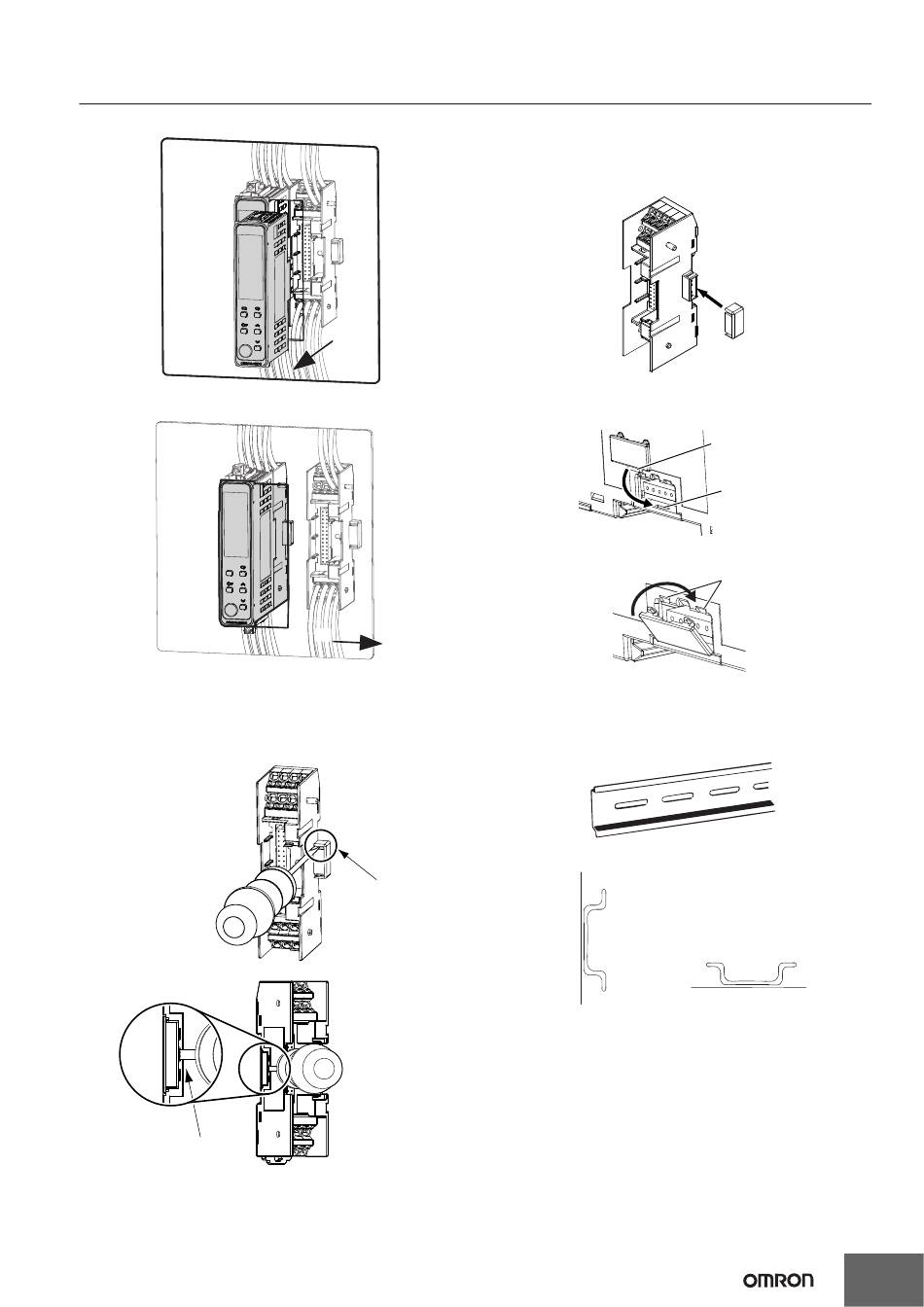

2. Remove the Main Unit from the Terminal Unit.
3. Remove the Terminal Units.
Removing the Connector Cover
E5DC-B
1. For both male and female covers, insert the tip of a flat-blade
screwdriver into the cutout on the connector cover to remove the
connector cover.
Male connector cover
Female connector cover
Cutout
(2)
(3)
Cutout
Attaching the Connector Cover
E5DC-B
For male connector covers
1. Press on the connector cover until it clicks into place. There is no
vertical direction for male connector covers.
For female connector covers
1. Insert the projecting part on the female connector cover into the
groove on the terminal unit.
(1)
2. Press on the female connector cover until it clicks into place in the
cutout.
(2)
Mounting the DIN Track
Attach the DIN Track to the inside of the control panel with screws to
at least three locations.
• DIN Track (sold separately)
PFP-50N (50 cm) and PFP-100N (100 cm)
Install the DIN Track vertically to the ground.
Vertical: OK
E5@C/E5@C-T
(1)
Projection Part
Groove
Cutout
Horizontal: NG
