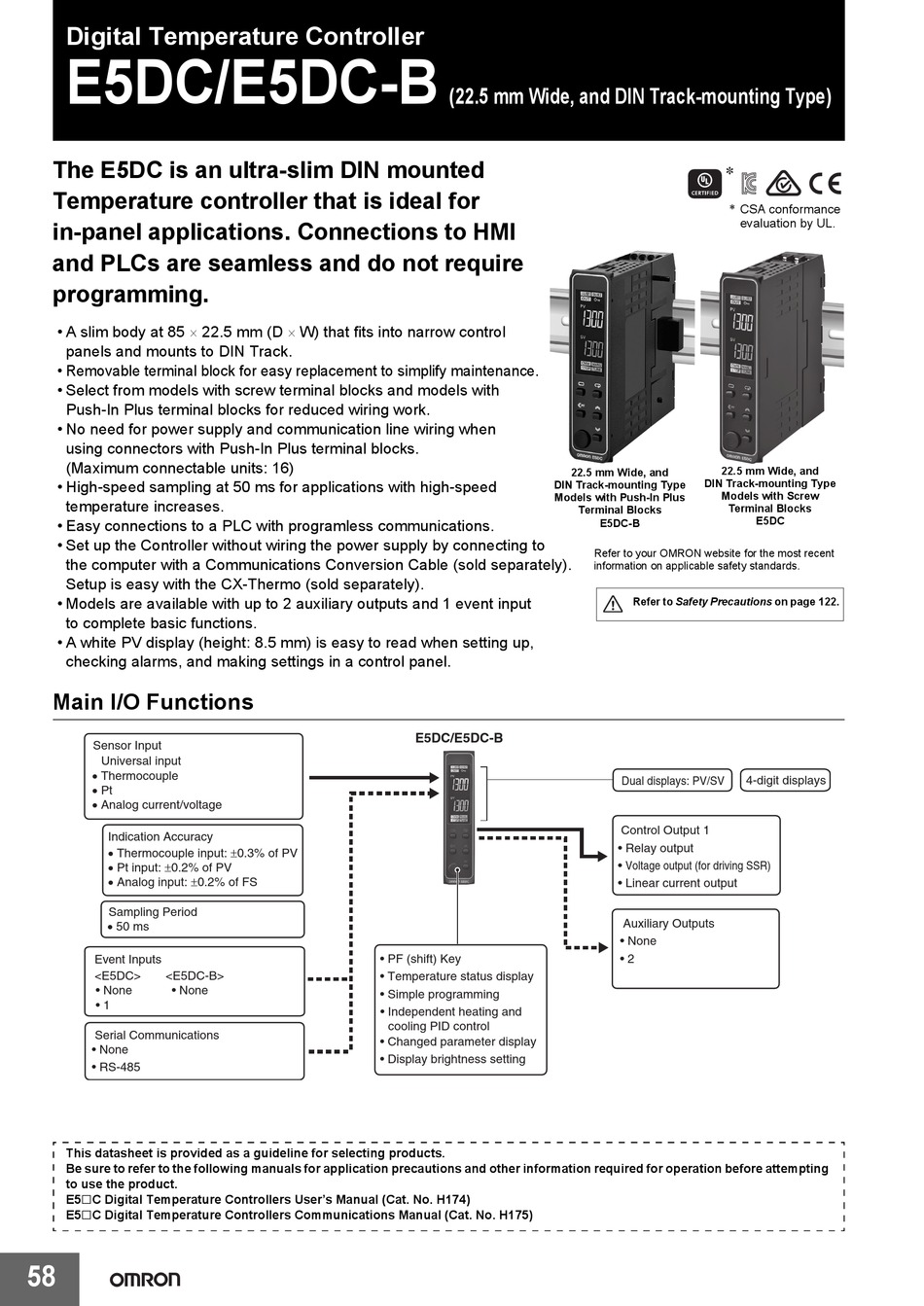

Digital Temperature Controller
E5DC/E5DC-B
The E5DC is an ultra-slim DIN mounted
Temperature controller that is ideal for
in-panel applications. Connections to HMI
and PLCs are seamless and do not require
programming.
• A slim body at 85  22.5 mm (D W) that fits into narrow control
panels and mounts to DIN Track.
• Removable terminal block for easy replacement to simplify maintenance.
• Select from models with screw terminal blocks and models with
Push-In Plus terminal blocks for reduced wiring work.
• No need for power supply and communication line wiring when
using connectors with Push-In Plus terminal blocks.
(Maximum connectable units: 16)
• High-speed sampling at 50 ms for applications with high-speed
temperature increases.
• Easy connections to a PLC with programless communications.
• Set up the Controller without wiring the power supply by connecting to
the computer with a Communications Conversion Cable (sold separately).
Setup is easy with the CX-Thermo (sold separately).
• Models are available with up to 2 auxiliary outputs and 1 event input
to complete basic functions.
• A white PV display (height: 8.5 mm) is easy to read when setting up,
checking alarms, and making settings in a control panel.
Main I/O Functions
Sensor Input
Universal input
• Thermocouple
• Pt
• Analog current/voltage
Indication Accuracy
• Thermocouple input: ±0.3% of PV
• Pt input: ±0.2% of PV
• Analog input: ±0.2% of FS
Sampling Period
• 50 ms
Event Inputs
<E5DC> <E5DC-B>
• None • None
• 1
Serial Communications
• None
• RS-485
This datasheet is provided as a guideline for selecting products.
Be sure to refer to the following manuals for application precautions and other information required for operation before attempting
to use the product.
□
E5 C Digital Temperature Controllers User's Manual (Cat. No. H174)
□
E5 C Digital Temperature Controllers Communications Manual (Cat. No. H175)
58
(22.5 mm Wide, and DIN Track-mounting Type)
DIN Track-mounting Type
E5DC/E5DC-B
• PF (shift) Key
• Temperature status display
• Simple programming
• Independent heating and
cooling PID control
• Changed parameter display
• Display brightness setting
*
* CSA conformance
22.5 mm Wide, and
22.5 mm Wide, and
DIN Track-mounting Type
Models with Screw
Models with Push-In Plus
Terminal Blocks
Terminal Blocks
E5DC-B
Refer to your OMRON website for the most recent
information on applicable safety standards.
Refer to Safety Precautions on page 122.
Dual displays: PV/SV
Control Output 1
• Relay output
• Voltage output (for driving SSR)
• Linear current output
Auxiliary Outputs
• None
• 2
evaluation by UL.
E5DC
4-digit displays
