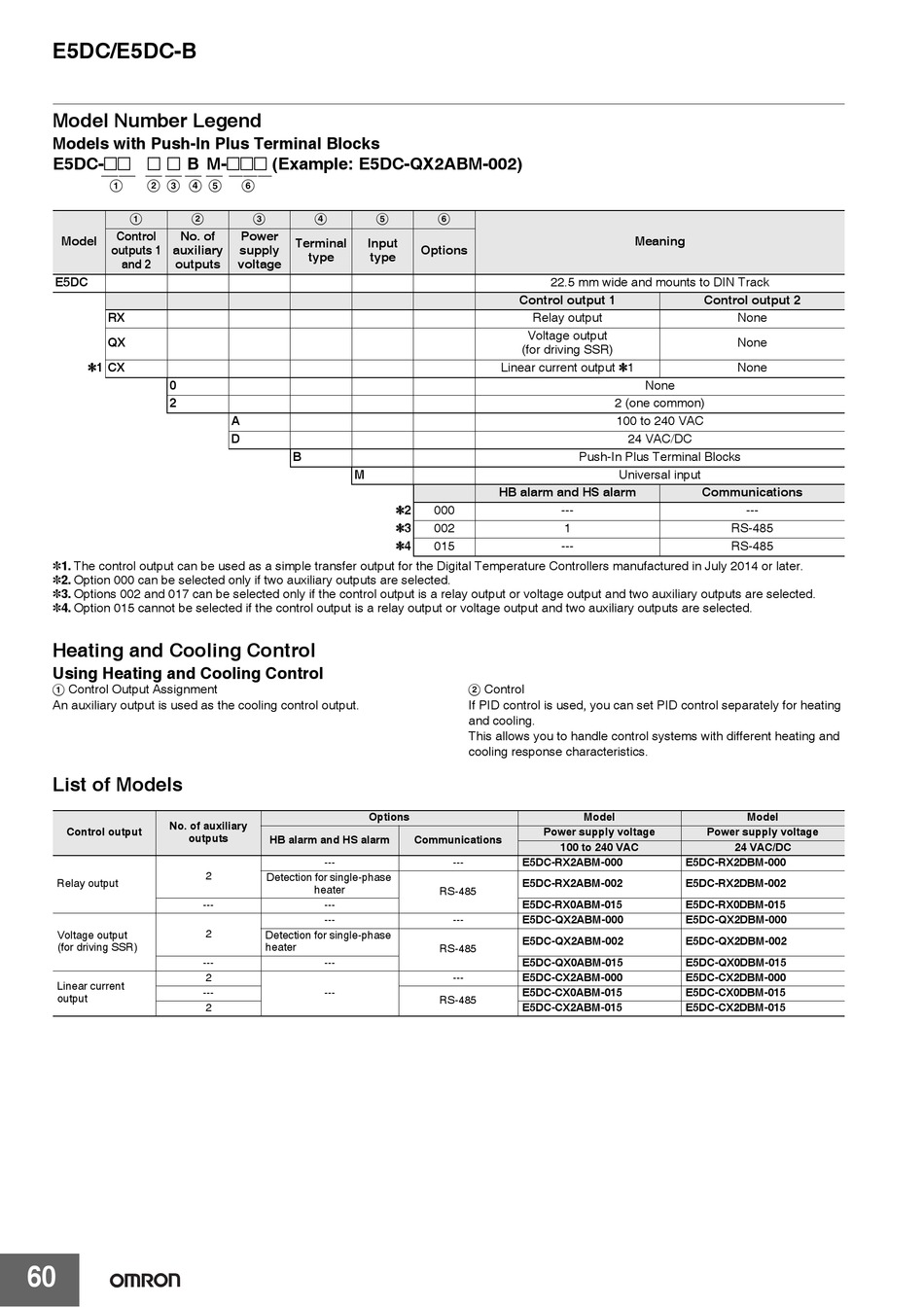

E5DC/E5DC-B
Model Number Legend
Models with Push-In Plus Terminal Blocks
E5DC-@@ @ @ B M-@@@ (Example: E5DC-QX2ABM-002)
−− − − − − −−−
A B C D E
A B
Control No. of
Model
outputs 1 auxiliary
and 2 outputs
E5DC
RX
QX
*1 CX
0
2
*1. The control output can be used as a simple transfer output for the Digital Temperature Controllers manufactured in July 2014 or later.
*2. Option 000 can be selected only if two auxiliary outputs are selected.
*3. Options 002 and 017 can be selected only if the control output is a relay output or voltage output and two auxiliary outputs are selected.
*4. Option 015 cannot be selected if the control output is a relay output or voltage output and two auxiliary outputs are selected.
Heating and Cooling Control
Using Heating and Cooling Control
A Control Output Assignment
An auxiliary output is used as the cooling control output.
List of Models
No. of auxiliary
Control output
outputs
Relay output
Voltage output
(for driving SSR)
Linear current
output
60
F
C D E
Power
Terminal Input
supply
type type
voltage
A
D
B
M
Options
HB alarm and HS alarm
---
2
Detection for single-phase
heater
--- ---
---
2
Detection for single-phase
heater
--- ---
2
--- ---
2
F
Options
22.5 mm wide and mounts to DIN Track
Control output 1
Relay output
Voltage output
(for driving SSR)
Linear current output *1
HB alarm and HS alarm
*2
000 ---
*3
002 1
*4
015 ---
B Control
If PID control is used, you can set PID control separately for heating
and cooling.
This allows you to handle control systems with different heating and
cooling response characteristics.
Power supply voltage
Communications
100 to 240 VAC
--- E5DC-RX2ABM-000
E5DC-RX2ABM-002
RS-485
E5DC-RX0ABM-015
--- E5DC-QX2ABM-000
E5DC-QX2ABM-002
RS-485
E5DC-QX0ABM-015
--- E5DC-CX2ABM-000
E5DC-CX0ABM-015
RS-485
E5DC-CX2ABM-015
Meaning
Control output 2
None
None
None
None
2 (one common)
100 to 240 VAC
24 VAC/DC
Push-In Plus Terminal Blocks
Universal input
Communications
---
RS-485
RS-485
Model Model
Power supply voltage
24 VAC/DC
E5DC-RX2DBM-000
E5DC-RX2DBM-002
E5DC-RX0DBM-015
E5DC-QX2DBM-000
E5DC-QX2DBM-002
E5DC-QX0DBM-015
E5DC-CX2DBM-000
E5DC-CX0DBM-015
E5DC-CX2DBM-015
