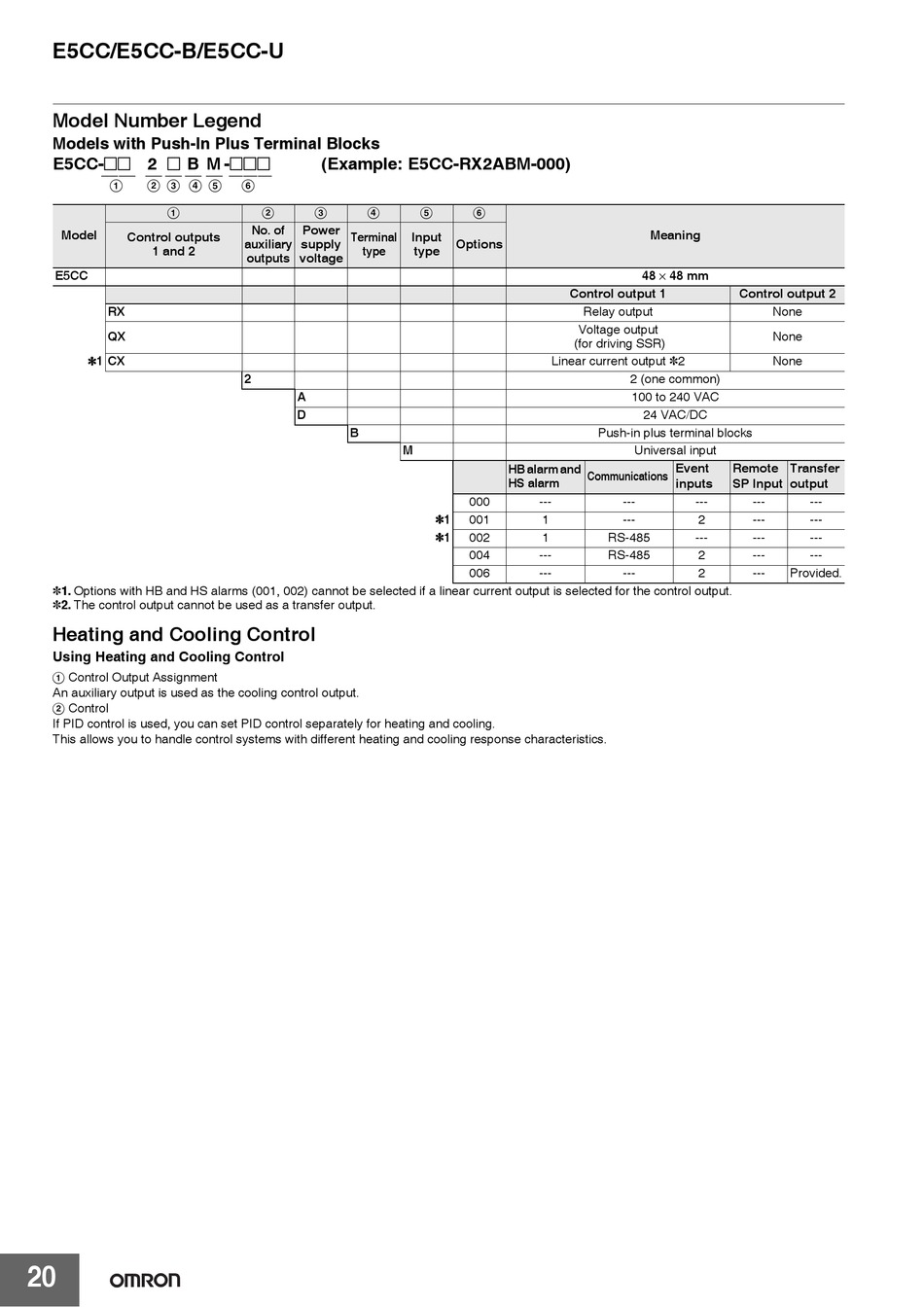

E5CC/E5CC-B/E5CC-U
Model Number Legend
Models with Push-In Plus Terminal Blocks
E5CC-@@ 2 @ B M -@@@
−− − − − − −−−
A B C D E
A
Model
Control outputs
1 and 2
E5CC
RX
QX
*1 CX
*1. Options with HB and HS alarms (001, 002) cannot be selected if a linear current output is selected for the control output.
*2. The control output cannot be used as a transfer output.
Heating and Cooling Control
Using Heating and Cooling Control
A Control Output Assignment
An auxiliary output is used as the cooling control output.
B Control
If PID control is used, you can set PID control separately for heating and cooling.
This allows you to handle control systems with different heating and cooling response characteristics.
20
(Example: E5CC-RX2ABM-000)
F
B C D
No. of Power
Terminal Input
auxiliary supply
type type
outputs voltage
2
A
D
B
M
E F
Options
Control output 1
Relay output
Voltage output
(for driving SSR)
Linear current output *2
HB alarm and
Communications
HS alarm
000 ---
*1
001 1
*1
002 1
004 ---
006 ---
Meaning
48 × 48 mm
Control output 2
None
None
None
2 (one common)
100 to 240 VAC
24 VAC/DC
Push-in plus terminal blocks
Universal input
Event Remote
inputs SP Input
--- --- ---
--- 2 ---
RS-485 --- ---
RS-485 2 ---
--- 2 ---
Transfer
output
---
---
---
---
Provided.
