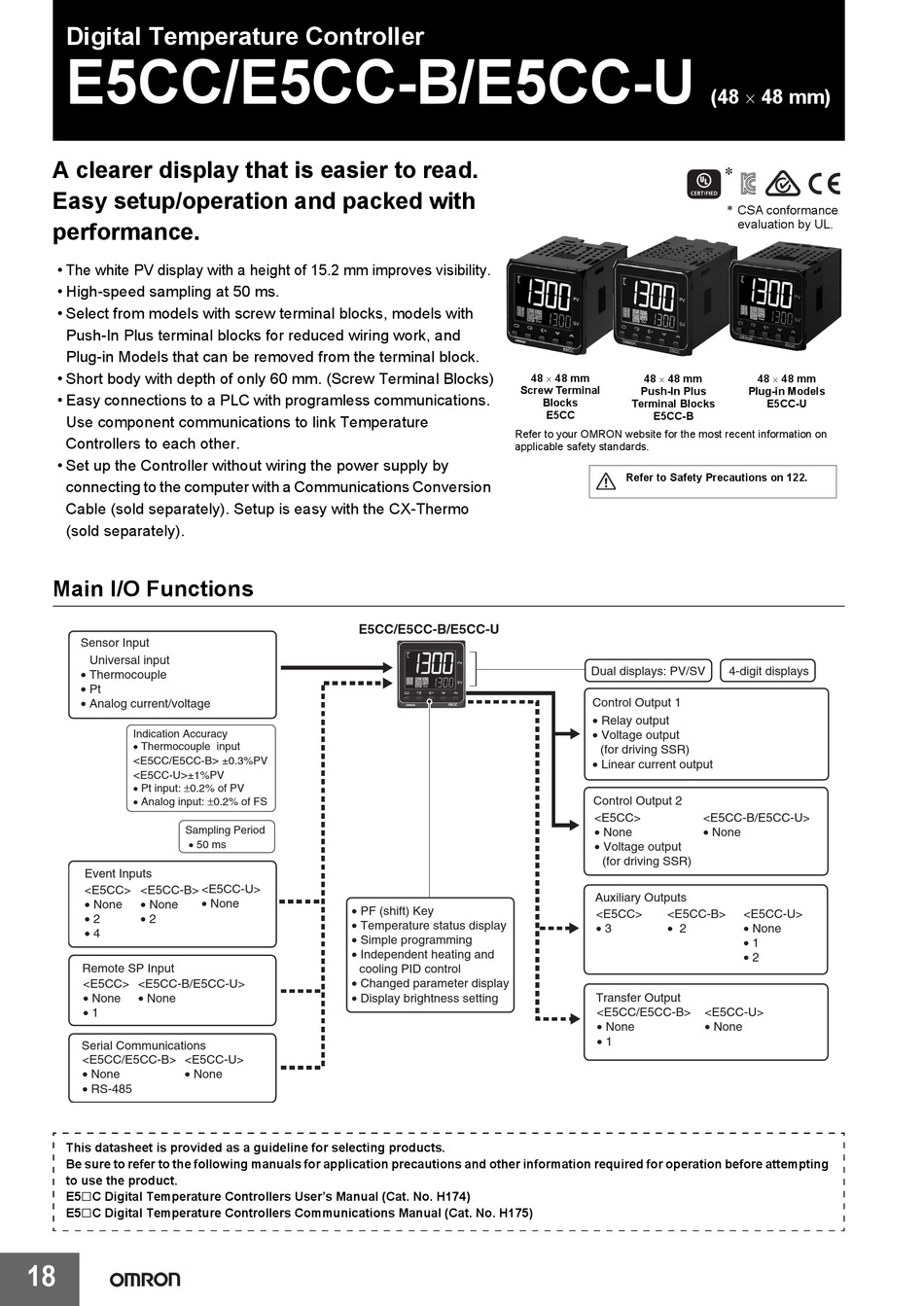

Digital Temperature Controller

E5CC/E5CC-B/E5CC-U
A clearer display that is easier to read.
Easy setup/operation and packed with
performance.
• The white PV display with a height of 15.2 mm improves visibility.
• High-speed sampling at 50 ms.
• Select from models with screw terminal blocks, models with
Push-In Plus terminal blocks for reduced wiring work, and
Plug-in Models that can be removed from the terminal block.
• Short body with depth of only 60 mm. (Screw Terminal Blocks)
• Easy connections to a PLC with programless communications.
Use component communications to link Temperature
Controllers to each other.
• Set up the Controller without wiring the power supply by
connecting to the computer with a Communications Conversion
Cable (sold separately). Setup is easy with the CX-Thermo
(sold separately).
Main I/O Functions
Sensor Input
Universal input
• Thermocouple
• Pt
• Analog current/voltage
Indication Accuracy
• Thermocouple input
<
E5CC/E5CC-B
< >
E5CC-U ±1%PV
• Pt input: ±0.2% of PV
• Analog input: ±0.2% of FS
Sampling Period
• 50 ms
Event Inputs
<E5CC> <E5CC-B>
• None • None
• 2 • 2
• 4
Remote SP Input
<E5CC> <E5CC-B/E5CC-U>
• None • None
• 1
Serial Communications
<E5CC/E5CC-B> <E5CC-U>
• None • None
• RS-485
This datasheet is provided as a guideline for selecting products.
Be sure to refer to the following manuals for application precautions and other information required for operation before attempting
to use the product.
□
E5 C Digital Temperature Controllers User's Manual (Cat. No. H174)
□
E5 C Digital Temperature Controllers Communications Manual (Cat. No. H175)
18
E5CC/E5CC-B/E5CC-U
>
±0.3%PV
<E5CC-U>
• None
• PF (shift) Key
• Temperature status display
• Simple programming
• Independent heating and
cooling PID control
• Changed parameter display
• Display brightness setting
48  48 mm 48  48 mm
Screw Terminal
Push-In Plus
Blocks
Terminal Blocks
E5CC
E5CC-B
Refer to your OMRON website for the most recent information on
applicable safety standards.
Refer to Safety Precautions on 122.
Dual displays: PV/SV
Control Output 1
• Relay output
• Voltage output
(for driving SSR)
• Linear current output
Control Output 2
<E5CC>
• None
• Voltage output
(for driving SSR)
Auxiliary Outputs
<E5CC> <E5CC-B>
• 3 • 2
Transfer Output
<E5CC/E5CC-B>
• None
• 1
(48  48 mm)
*
* CSA conformance
evaluation by UL.
48  48 mm
Plug-in Models
E5CC-U
4-digit displays
<E5CC-B/E5CC-U>
• None
<E5CC-U>
• None
• 1
• 2
<E5CC-U>
• None
