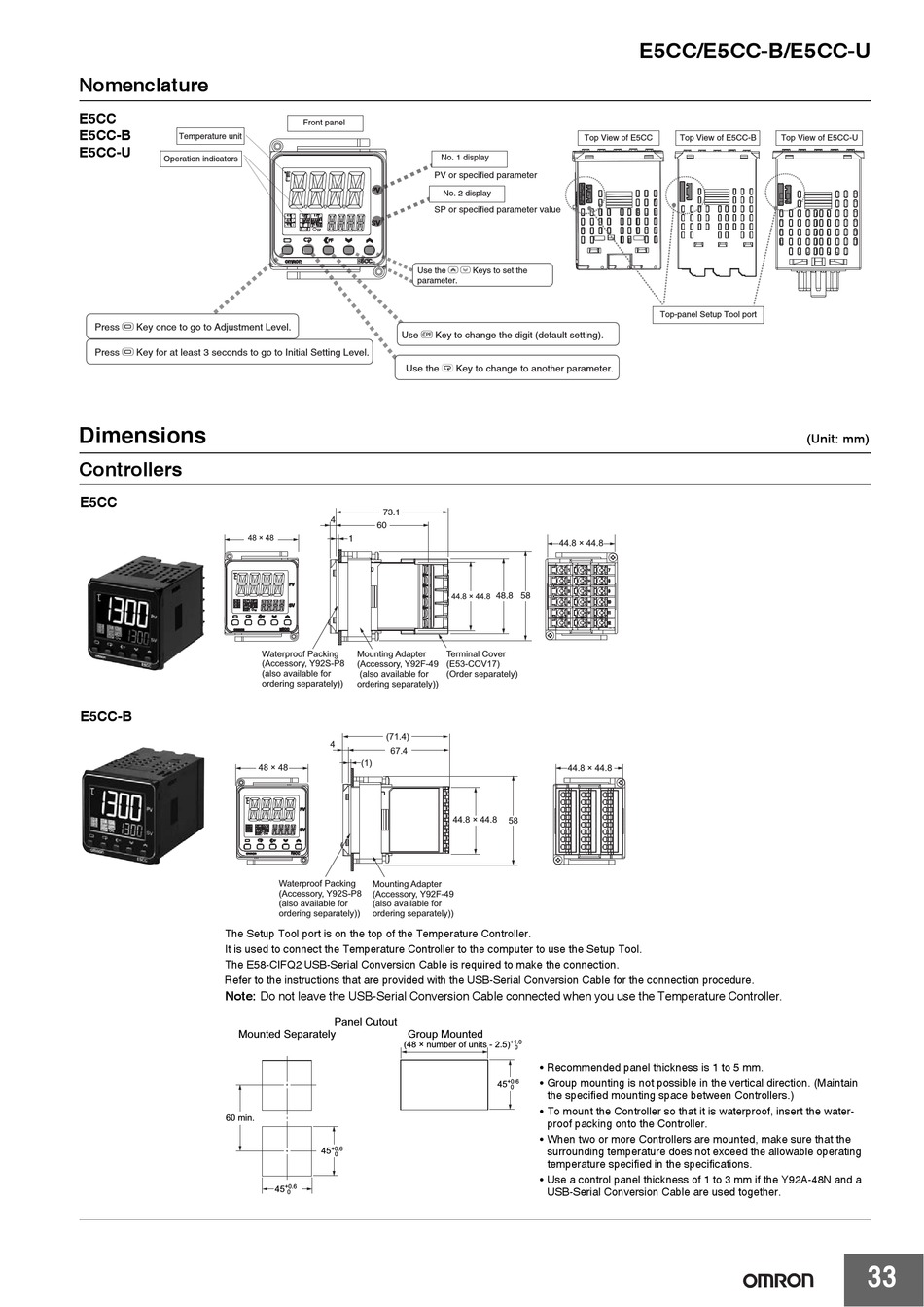

Nomenclature
E5CC
E5CC-B
Temperature unit
E5CC-U
Operation indicators
Press O Key once to go to Adjustment Level.
Press O Key for at least 3 seconds to go to Initial Setting Level.
Dimensions
Controllers
E5CC
48 × 48
E5CC-B
The Setup Tool port is on the top of the Temperature Controller.
It is used to connect the Temperature Controller to the computer to use the Setup Tool.
The E58-CIFQ2 USB-Serial Conversion Cable is required to make the connection.
Refer to the instructions that are provided with the USB-Serial Conversion Cable for the connection procedure.
Note: Do not leave the USB-Serial Conversion Cable connected when you use the Temperature Controller.
Mounted Separately
60 min.
Front panel
Use the U D Keys to set the
parameter.
Use S Key to change the digit (default setting).
Use the M Key to change to another parameter.
73.1
4
60
1
Waterproof Packing Mounting Adapter
(Accessory, Y92S-P8 (Accessory, Y92F-49
(also available for (also available for
ordering separately))
ordering separately))
(71.4)
4
67.4
(1)
48 × 48
Waterproof Packing Mounting Adapter
(Accessory, Y92S-P8 (Accessory, Y92F-49
(also available for
(also available for
ordering separately)) ordering separately))
Panel Cutout
Group Mounted
(48 × number of units - 2.5)
+0.6
45
0
+0.6
45
0
Top View of E5CC
No. 1 display
PV or specified parameter
No. 2 display
SP or specified parameter value
44.8 × 44.8
48.8 58
44.8 × 44.8
Terminal Cover
(E53-COV17)
(Order separately)
44.8 × 44.8
44.8 × 44.8
58
+1.0
0
• Recommended panel thickness is 1 to 5 mm.
• Group mounting is not possible in the vertical direction. (Maintain
+0.6
45
0
the specified mounting space between Controllers.)
• To mount the Controller so that it is waterproof, insert the water-
proof packing onto the Controller.
• When two or more Controllers are mounted, make sure that the
surrounding temperature does not exceed the allowable operating
temperature specified in the specifications.
• Use a control panel thickness of 1 to 3 mm if the Y92A-48N and a
USB-Serial Conversion Cable are used together.
E5CC/E5CC-B/E5CC-U
Top View of E5CC-B Top View of E5CC-U
Top-panel Setup Tool port
(Unit: mm)
