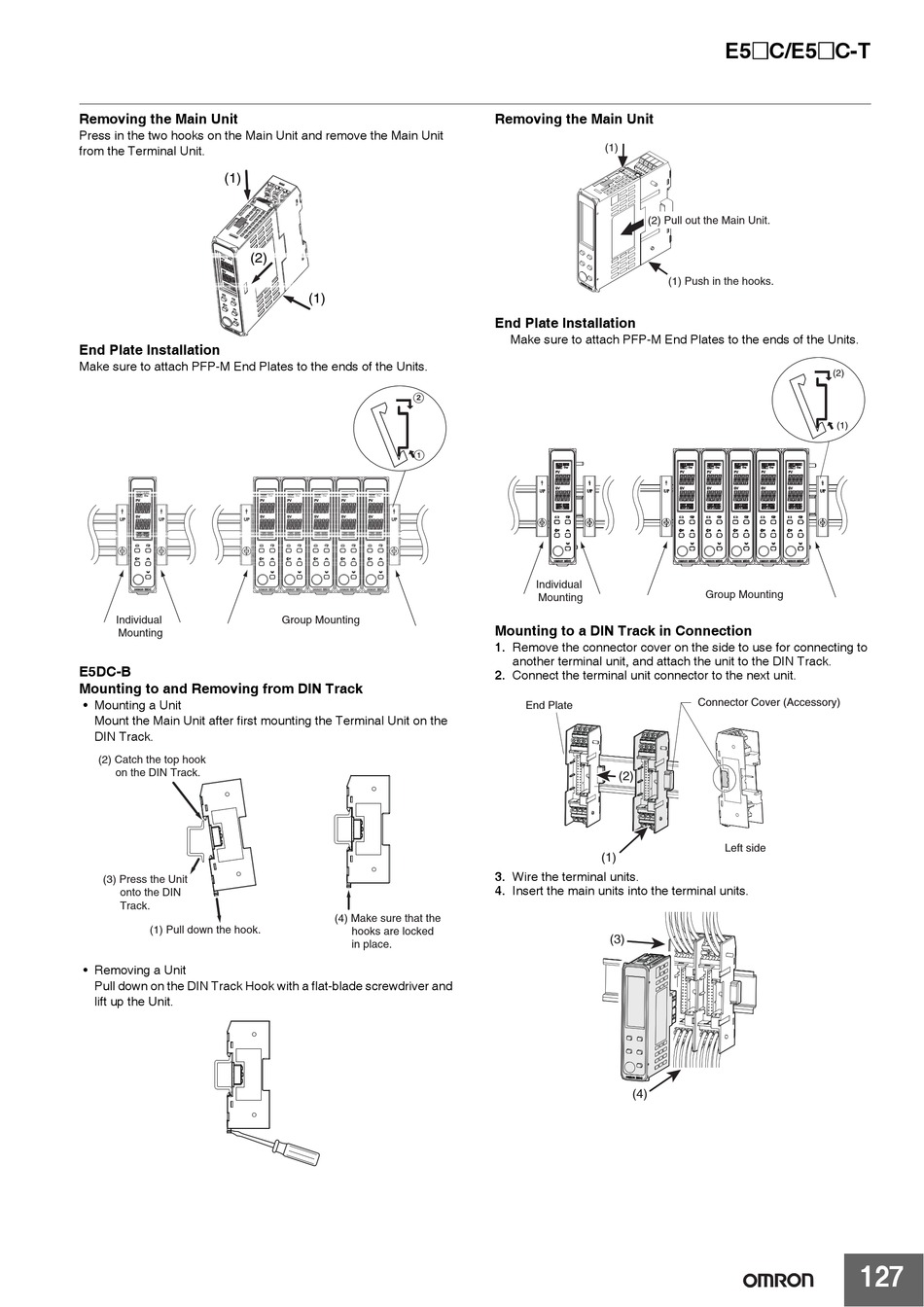

Removing the Main Unit

Press in the two hooks on the Main Unit and remove the Main Unit
from the Terminal Unit.
(1)
(2)
End Plate Installation
Make sure to attach PFP-M End Plates to the ends of the Units.
Individual
Mounting
E5DC-B
Mounting to and Removing from DIN Track
• Mounting a Unit
Mount the Main Unit after first mounting the Terminal Unit on the
DIN Track.
(2) Catch the top hook
on the DIN Track.
(3) Press the Unit
onto the DIN
Track.
(1) Pull down the hook.
• Removing a Unit
Pull down on the DIN Track Hook with a flat-blade screwdriver and
lift up the Unit.
(1)
B
A
Group Mounting
(4) Make sure that the
hooks are locked
in place.
Removing the Main Unit
(1)
(2) Pull out the Main Unit.
(1) Push in the hooks.
End Plate Installation
Make sure to attach PFP-M End Plates to the ends of the Units.
Individual
Mounting
Mounting to a DIN Track in Connection
1. Remove the connector cover on the side to use for connecting to
another terminal unit, and attach the unit to the DIN Track.
2. Connect the terminal unit connector to the next unit.
End Plate
(2)
(1)
3. Wire the terminal units.
4. Insert the main units into the terminal units.
(3)
(4)
E5@C/E5@C-T
(2)
(1)
Group Mounting
Connector Cover (Accessory)
Left side
