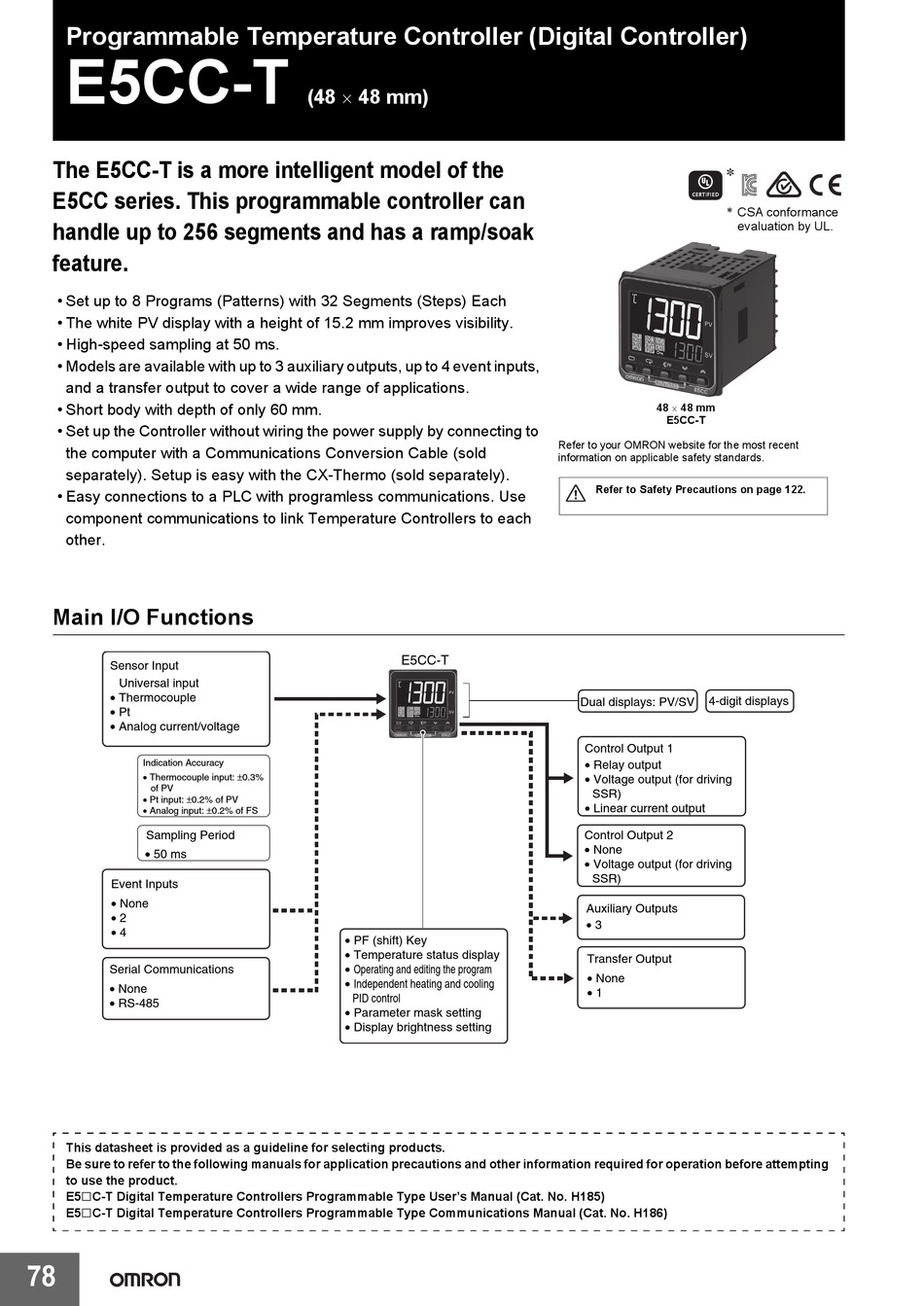

Omron E5 C Series Manual page 78

Programmable Temperature Controller (Digital Controller)
E5CC-T
The E5CC-T is a more intelligent model of the
E5CC series. This programmable controller can
handle up to 256 segments and has a ramp/soak
feature.
• Set up to 8 Programs (Patterns) with 32 Segments (Steps) Each
• The white PV display with a height of 15.2 mm improves visibility.
• High-speed sampling at 50 ms.
• Models are available with up to 3 auxiliary outputs, up to 4 event inputs,
and a transfer output to cover a wide range of applications.
• Short body with depth of only 60 mm.
• Set up the Controller without wiring the power supply by connecting to
the computer with a Communications Conversion Cable (sold
separately). Setup is easy with the CX-Thermo (sold separately).
• Easy connections to a PLC with programless communications. Use
component communications to link Temperature Controllers to each
other.
Main I/O Functions
Sensor Input
Universal input
• Thermocouple
• Pt
• Analog current/voltage
Indication Accuracy
• Thermocouple input: ±0.3%
of PV
• Pt input: ±0.2% of PV
• Analog input: ±0.2% of FS
Sampling Period
• 50 ms
Event Inputs
• None
• 2
• 4
Serial Communications
• None
• RS-485
This datasheet is provided as a guideline for selecting products.
Be sure to refer to the following manuals for application precautions and other information required for operation before attempting
to use the product.
□
E5 C-T Digital Temperature Controllers Programmable Type User's Manual (Cat. No. H185)
□
E5 C-T Digital Temperature Controllers Programmable Type Communications Manual (Cat. No. H186)
78
(48  48 mm)
E5CC-T
• PF (shift) Key
• Temperature status display
• Operating and editing the program
• Independent heating and cooling
PID control
• Parameter mask setting
• Display brightness setting
*
* CSA conformance
48  48 mm
E5CC-T
Refer to your OMRON website for the most recent
information on applicable safety standards.
Refer to Safety Precautions on page 122.
4-digit displays
Dual displays: PV/SV
Control Output 1
• Relay output
• Voltage output (for driving
SSR)
• Linear current output
Control Output 2
• None
• Voltage output (for driving
SSR)
Auxiliary Outputs
• 3
Transfer Output
• None
• 1
evaluation by UL.
