Installation and Assembly
ensor Cable
4.3 S
4.3.1

General

The sensor is connected to the controller by the sensor cable.
The connection is made by simple plugging. The connector locks automatically with type C and B connectors. The tight fit can be
checked by pulling the connector housing (cable bushing). The lock can be released and the connector can be opened by pulling the
knurled housing sleeve of the cable bushing.
4.3.2

Cable with Type C Connector

Type Model
Tread-proof, with protec-
CCgx,xC/PT
tive metal tubing
CCgx,xC
Industrial applications
CCgx,xC/90
3.8 (.15)
11.1 (.44)
19.6 (.77)
30.5 (1.20)

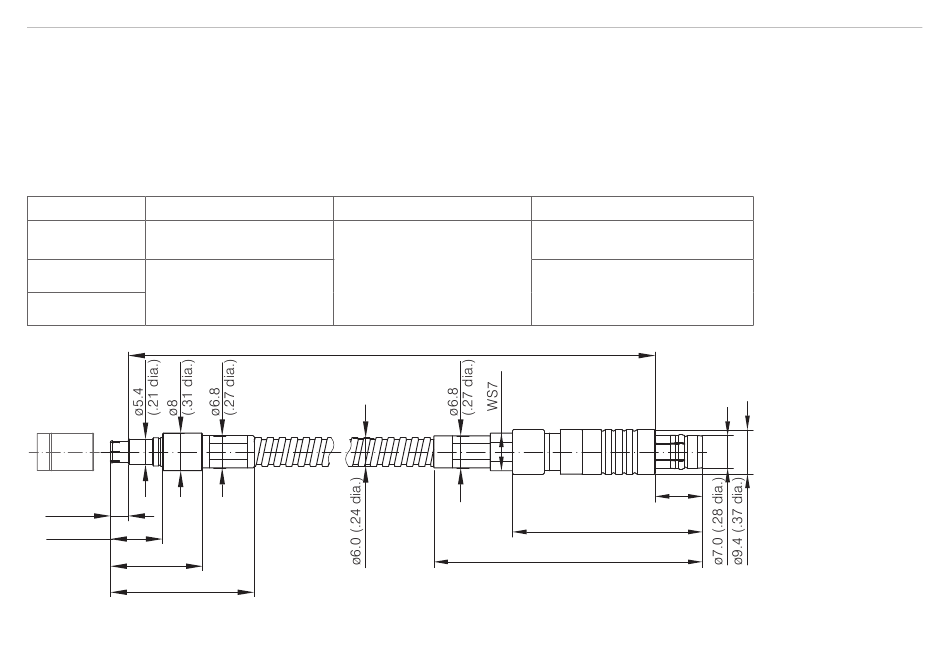

Fig. 13 Dimensional drawing sensor cable CCgxC/PT, dimensions in mm (inches)
capaNCDT 61xx/IP
Cable length
1 m, 2 m, 4 m, 6 m, 8m
Cable length x
Bending radius
static >20 mm
dynamic >30 mm
static >10 mm
dynamic >22 mm
(recommended 30 mm)
10
(.39)
40.3 (1.59)
+1
57 (2.24)
-0
Sensor cable suitable
for sensors
CSE05,
CSE05/M8,
CSE1
