MICRO-EPSILON capaNCDT 6110 IP Operating Instructions Manual page 21

Installation and Assembly
CSF2-CRg4,0
0.7
(0.03)
5.2 ±0.1
(.20)
ø3.1 ±0.1
(.12 dia.)
ø9.4
(.37 dia.)
Active measuring surface sensor

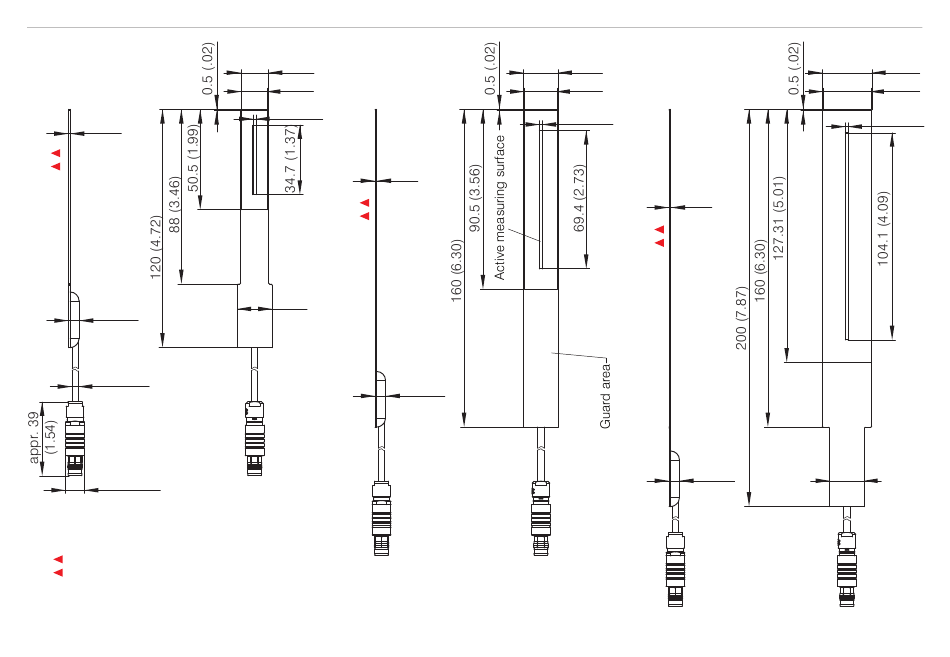

Fig. 12 Flat sensors with integrated cable, dimensions in mm (inches)
capaNCDT 61xx/IP
14 (.55) CSF4-CRg4,0
(.51)
13
1.5 (.06)
0.7
17.5
(.69)
5.2 ±0.1
17.5 (.69) CSF6-CRg4,0
16.5 (.65)
1.5 (.06)
0.7
5.2
25 (.98)
24.2 (.95)
1.5 (.06)
±0.1 17.5
(.69)
Seite 21
