Cable With Type B Connector - MICRO-EPSILON capaNCDT 6110 IP Operating Instructions Manual

Installation and Assembly
4.3.3

Cable with Type B Connector

Type Model
Tread-proof, with protec-
CCgx,xB/PT
tive metal tubing
CCgx,xB
Industrial applications
CCgx,xB/90

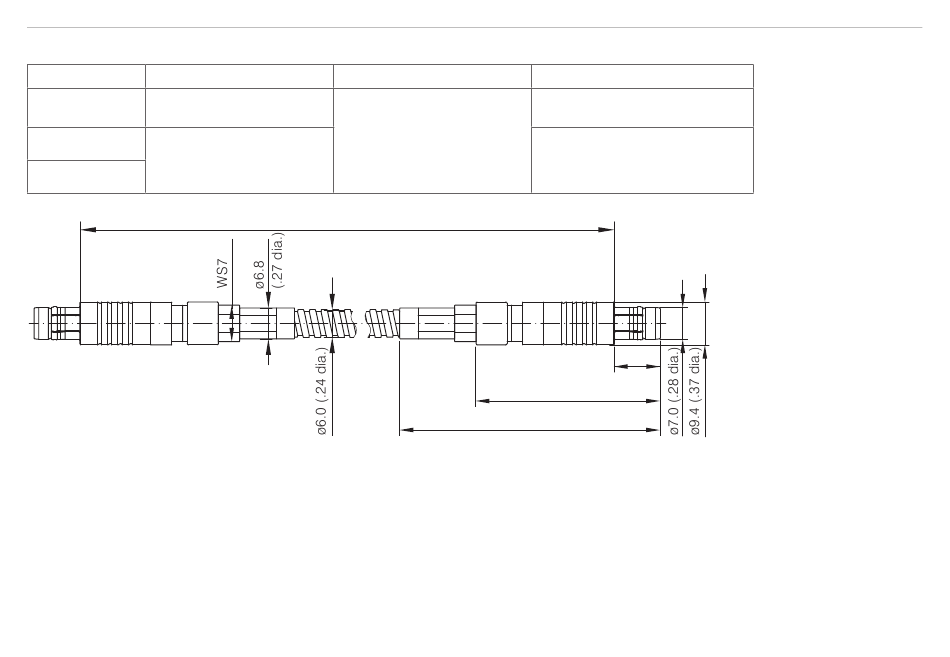

Fig. 15 Dimensional drawing sensor cable CCgxB/PT
i
Sensor cables with connector type B enable to connect to each end both a sensor and a controller.
Dimensions in mm (inches)
capaNCDT 61xx/IP
Cable length
1 m, 2 m, 4 m, 6 m, 8m
Cable length x
Bending radius
static >20 mm
dynamic >30 mm
static >10 mm
dynamic >22 mm
(recommended 30 mm)
10
(.39)
40.3 (1.59)
+1
57 (2.24)
-0
Sensor cable suitable
for sensors
CSE1,25/M12,
CSE2, CSE2/M16,
CSE3, CSE3/M24
