MICRO-EPSILON capaNCDT 6110 IP Operating Instructions Manual page 19

Installation and Assembly
CSE05/M8
ø6.0
(.24 dia.)
ø5.7
M8x0.5

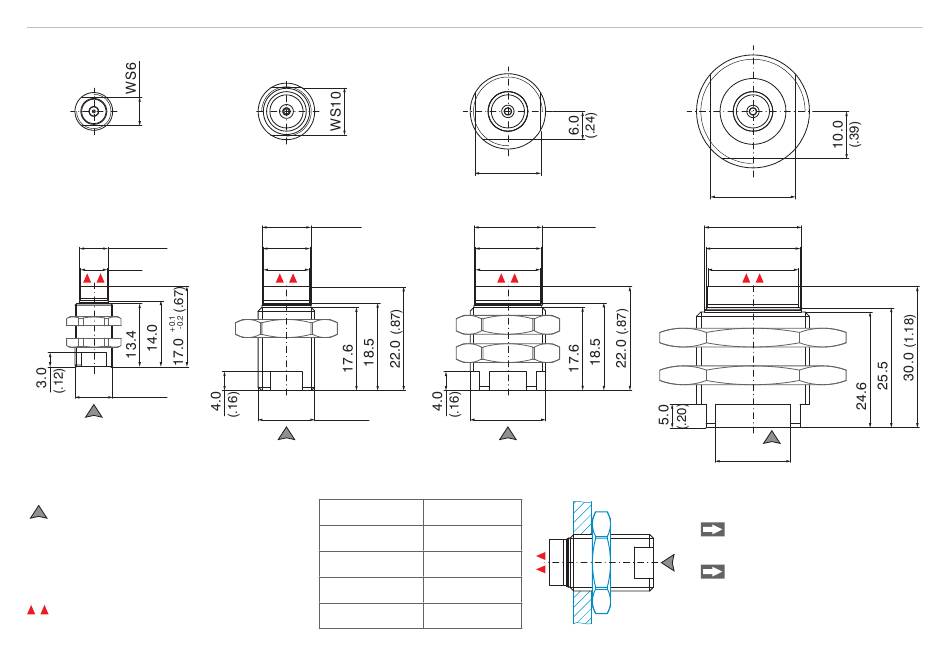

Fig. 10 Cylindrical sensors with thread and male connector,
Connector side
Dimensions in mm (inches),
dimensional drawings of other sensors
are available on request.
Active measuring surface sensor
capaNCDT 61xx/IP
CSE1,25/M12
ø10.4
(.41 dia.)
ø10
ø9.7
M12x1
Sensor
CSE05/M8
CSE1,5/M12
CSE2/M16
CSE3/M24
CSE2/M16
WS14
ø14.4
(.57 dia.)
ø14.0
ø13.7
M16x1
dimensions in mm (inches)
Torque
2.5 Nm max.
10 Nm max.
20 Nm max.
70 Nm max.
CSE3/M24
WS18
ø20.6
(.81 dia.)
ø20.0
ø19.2
M24x1.5
Preferred mounting:
Screw the sensor into the
sensor holder.
Turn the mounting nut on.
Do not exceed torques.
