Ground Connection, Grounding; Power Supply, Display/Output Device, Sensor Connection - MICRO-EPSILON capaNCDT 6110 IP Operating Instructions Manual

Installation and Assembly
4.5
Make sure you have a sufficient grounding of the measuring object, for example connect it with the sensor
or the supply ground.
4.6
Pin
1
2
3
4
5
6
Shield
SCAC3/6/IP is a 3 m long, pre-assembled power supply and output cable.
1) Digital interface with DT6120/IP/U or DT6120/IP/I only
2) Voltage or current output

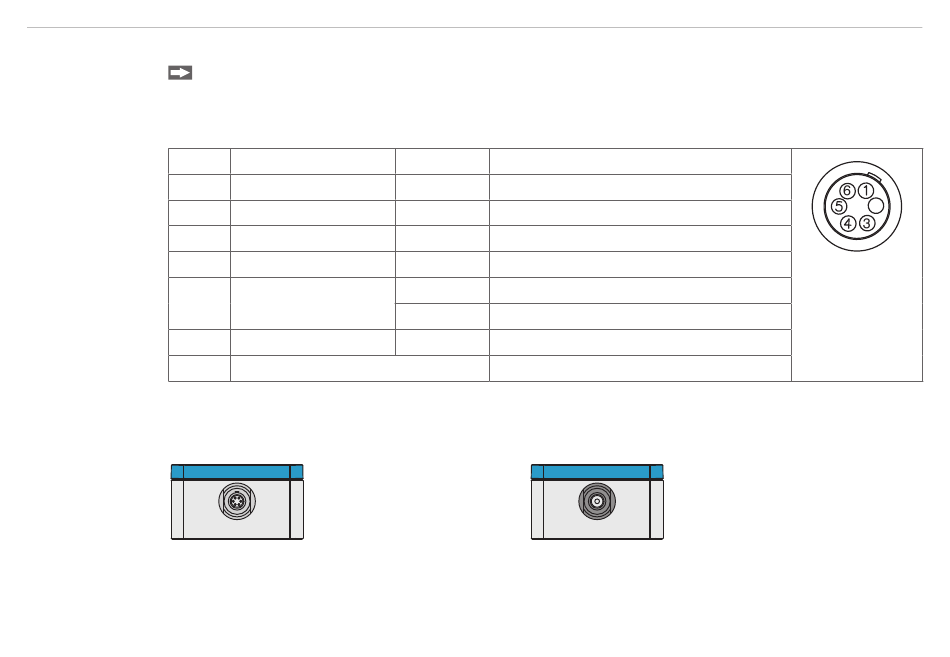

Fig. 20 Connection power supply
and signal output
capaNCDT 61xx/IP

Ground Connection, Grounding

Power Supply, Display/Output Device, Sensor Connection

Color SCAC3/6/IP
white
grey
pink
green
brown
blue
POWER/SIGNAL
Signal Description
+24 V +24 V power supply
GND Supply ground
RS485_A RS485 interface
1
AGND Analog ground (for signal output)
U-out Voltage output (R min 10 kOhm)
I-out Current output (max. 500 Ohm load)
2
RS485_B RS485 interface
1
Cable shield, housing
Fig. 21 Connection sensor cable
SENSOR
2
View on solder
pin side,
6-pin. female
connector
