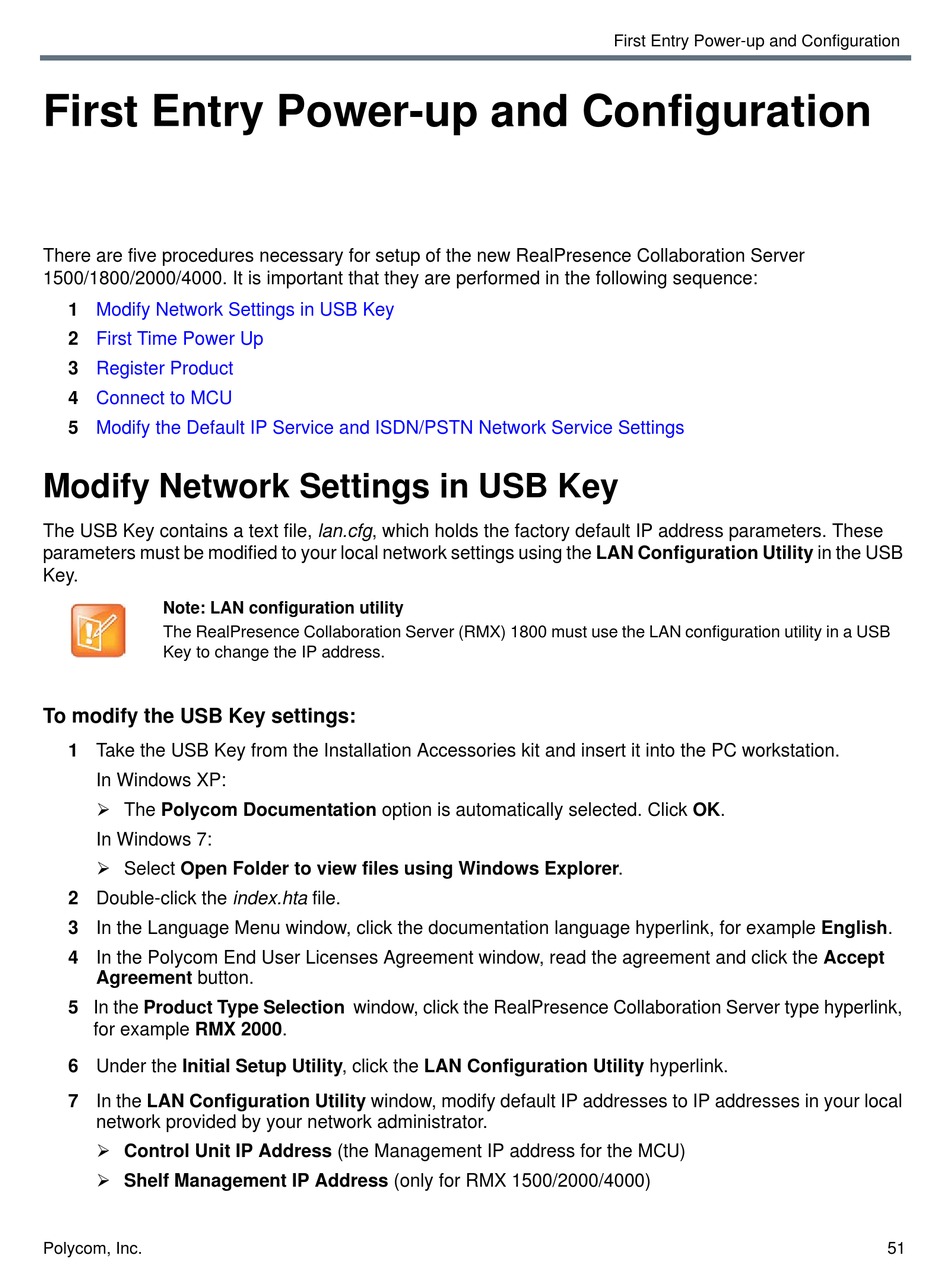

First Entry Power-up and Configuration

There are five procedures necessary for setup of the new RealPresence Collaboration Server
1500/1800/2000/4000. It is important that they are performed in the following sequence:
1

Modify Network Settings in USB Key

2 First Time Power Up
3 Register Product
4 Connect to MCU
5 Modify the Default IP Service and ISDN/PSTN Network Service Settings
Modify Network Settings in USB Key
The USB Key contains a text file, lan.cfg, which holds the factory default IP address parameters. These
parameters must be modified to your local network settings using the LAN Configuration Utility in the USB
Key.
Note: LAN configuration utility
The RealPresence Collaboration Server (RMX) 1800 must use the LAN configuration utility in a USB
Key to change the IP address.
To modify the USB Key settings:
1 Take the USB Key from the Installation Accessories kit and insert it into the PC workstation.
In Windows XP:
 The Polycom Documentation option is automatically selected. Click OK.
In Windows 7:
 Select Open Folder to view files using Windows Explorer.
2 Double-click the index.hta file.
3 In the Language Menu window, click the documentation language hyperlink, for example English.
4 In the Polycom End User Licenses Agreement window, read the agreement and click the Accept
Agreement button.
5 In the Product Type Selection window, click the RealPresence Collaboration Server type hyperlink,
for example RMX 2000.
6 Under the Initial Setup Utility, click the LAN Configuration Utility hyperlink.
7 In the LAN Configuration Utility window, modify default IP addresses to IP addresses in your local
network provided by your network administrator.
 Control Unit IP Address (the Management IP address for the MCU)
 Shelf Management IP Address (only for RMX 1500/2000/4000)
Polycom, Inc.
First Entry Power-up and Configuration
51
