Install the Telescopic Rail Runners on the Rack

Rack Rail Runners require a minimum of 48 cm and a maximum of 80cm within the rack for installation.
To install the Telescopic rail runners on the rack:
1 Determine the location of the Collaboration Server on the rack:
 Allow for a 1U gap above and below the system for ventilation.
 Use the Rack Spacer (item no. 3) to predetermine its position on the rack post, making sure that
square studs of the spacer fit into the rack post's square/rounded mounting holes. Mark the
spacer's location on the rack post. Repeat this process for the 3 remaining vertical posts ensuring
that the system can be horizontally seated.

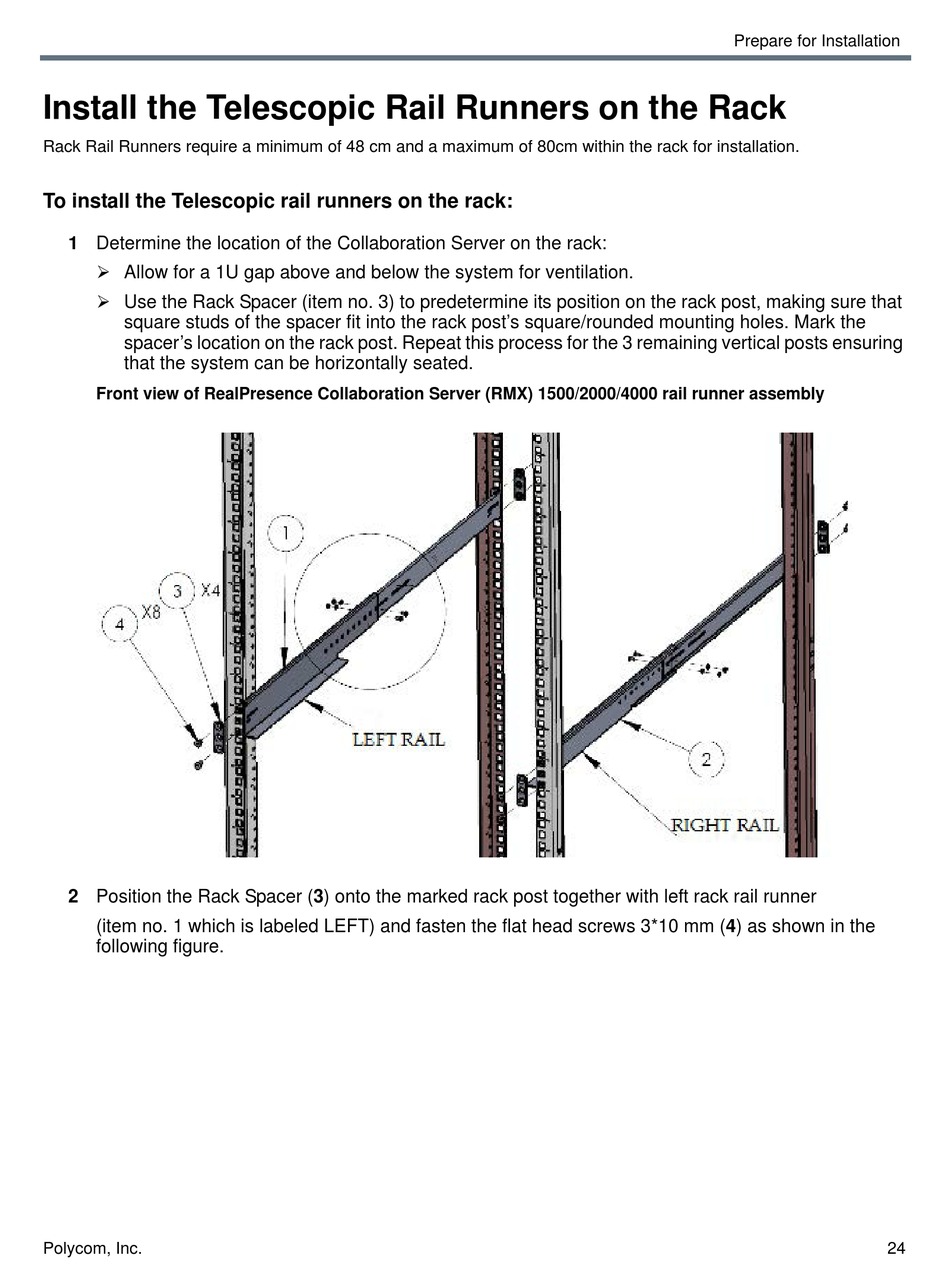

Front view of RealPresence Collaboration Server (RMX) 1500/2000/4000 rail runner assembly
2 Position the Rack Spacer (3) onto the marked rack post together with left rack rail runner
(item no. 1 which is labeled LEFT) and fasten the flat head screws 3*10 mm (4) as shown in the
following figure.
