Side Panels - Teldat V Installation Manual

A

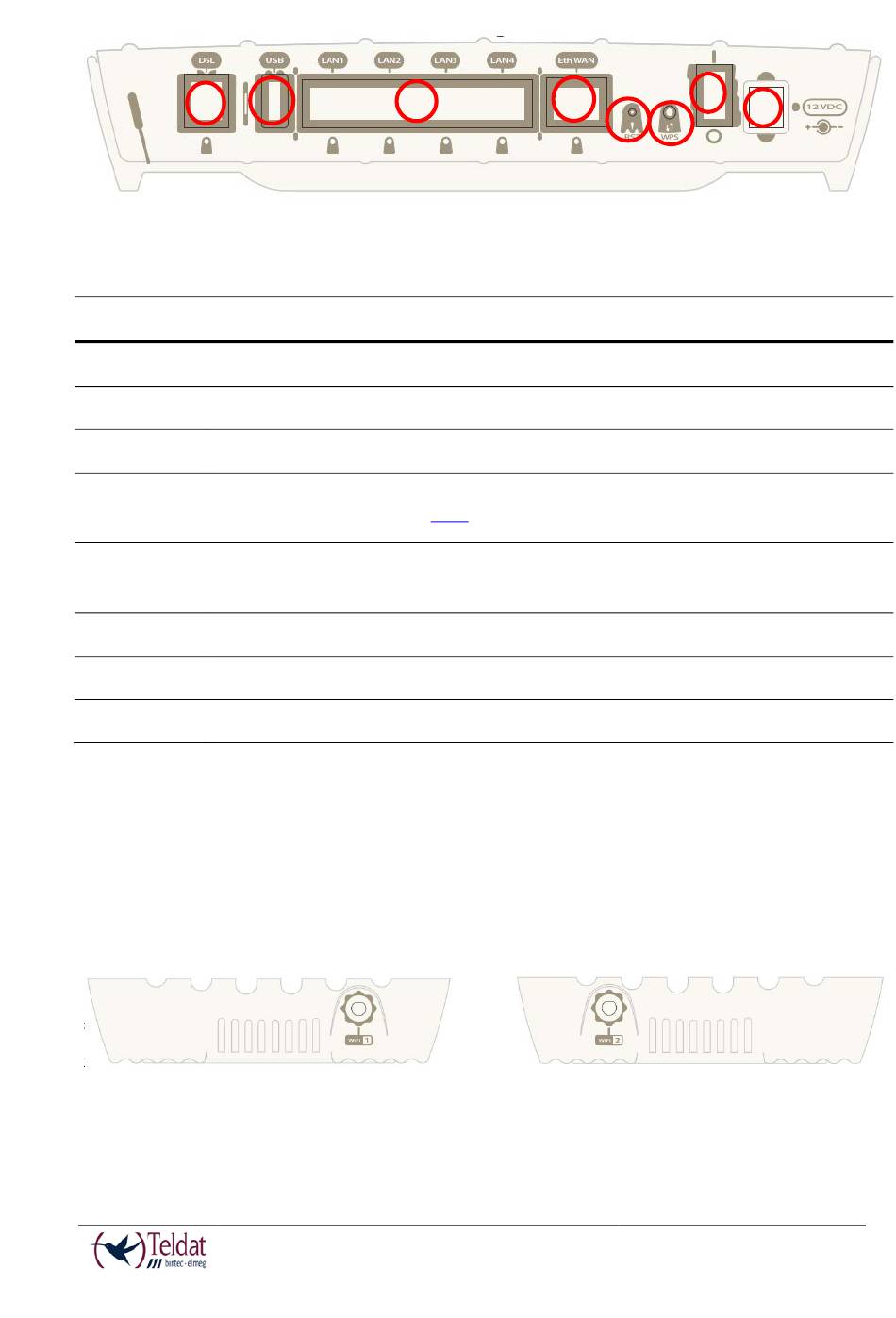

The following table provides information on each connector as well as a description:
Item Descripción
A DSL. DSL connector.
B USB. Slot where you can insert a 3G USB modem.
C 4-port Gigabit Ethernet Switch.
D RST. Reset button. For further information on how the reset button works,
please see the section on
E WPS (Wireless Protected Setup). This allows for easy and secure configuration
of the WiFi network parameters.
F Eth WAN. WAN Gigabit Ethernet.
G On/Off switch.
H Power source connection (PSU).

Side Panels

Two WiFi antennas are located on the side panels, one on either side.
F 3. R
IGURE IGHT HAND SIDE PANEL
B
C
F
IGURE
"RST
T 2. R
ABLE
TELDAT V
– Installation Manual
I - 6
F
2. R P
EAR ANEL
Button" in this chapter.
EAR PANEL ELEMENTS
F
IGURE
G
H
D
E
4. L
EFT HAND SIDE PANEL
Doc.DM567-I
Rev.4.0
