LAN Switch
Eth WAN
Cell
Coverage
(1, 2, 3, 4)

3.1.2 Rear Panel

The following figure shows the rear panel. Here you will find most of the Teldat Connect-104KF router connectors.

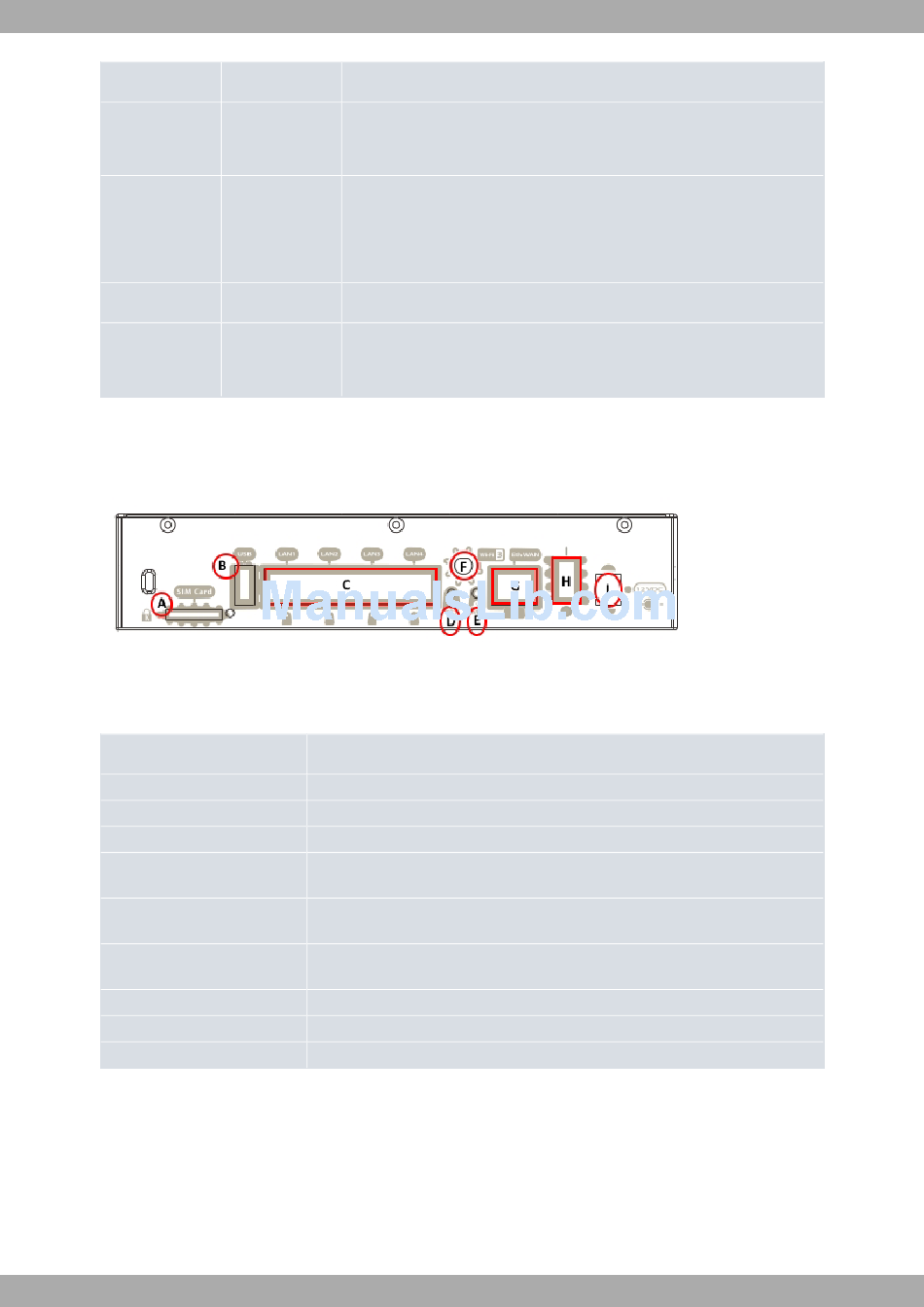

Fig. 2: Rear panel
The following table describes the various connectors:
Rear panel elements
Item
A
B
C
D
E
F
G
H
I

3.1.3 Side Panels

Each side panel contains one Wifi antenna connector and one 3G antenna connector.
Teldat Router Connect-104KF
Blinking (green/red) -> activity/maintenance.
Tricolor Green -> connected. Blinks with connection data activity.
Red -> disconnected.
Tricolor Green -> connected. Blinks with connection data activity.
Amber -> blinking: auto-test.
Red -> disconnected.
Tricolor This is not used on this router.
Monochrome Blue This is not used on this router.
Description
SIM Card. This is not used on this router.
USB. This is not used on this router.
4-port Gigabit Ethernet Switch.
RST. Reset button. Please see the
information on how the reset button works.
WPS (Wireless Protected Setup). This allows for easy and secure configuration of
the WiFi network parameters.
WiFi antenna no. 3. Whether this connector is used or not depends on the type of
WiFi card in the router.
Eth WAN. Gigabit Ethernet WAN.
On/Off switch.
Power source connection (PSU).
RST Button on page 9 in this chapter for more
3 Components and Power Supply
