Rear panel elements
Item
A
B
C
D
E
F
G
H
I
J
K
L
M

3.1.3 Side Panels

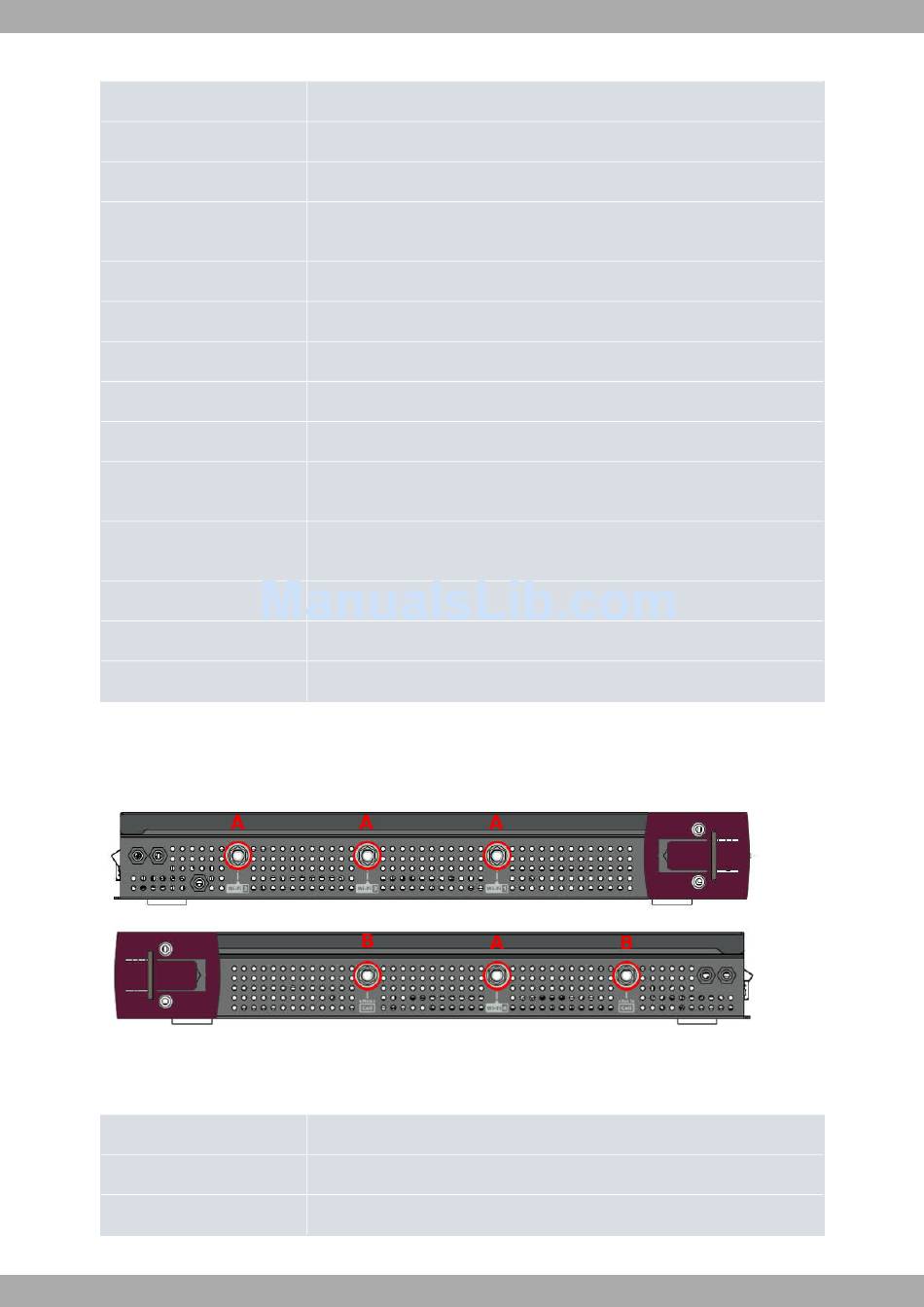

Four Wi-Fi and two 3G antenna connectors are located on the side panels.
Left and right side panels
Fig. 4:
The connectors are as follows:
Side panel connectors
Item
A
B
Teldat Router iM8
Description
SIM Card. Slot where you can insert the SIM card for the external 3G module.
SD. Slot where you can insert a SD card.
Aux. Provides access to the Teldat iM8 local console for configuring and monitor-
ing purposes.
USB. Slot where you can insert a 3G USB modem.
8-port Gigabit Ethernet Switch.
PoE. Connector for power supply through Ethernet (Power over Ethernet).
Eth WAN Base-T. WAN Gigabit Ethernet.
Eth WAN SFP.
WPS (Wireless Protected Setup). Makes it possible to configure the WiFi network
parameters easily and securely.
RST. Reset button. For further information on how the reset button works, please
see RST Button on page 16.
On/Off switch.
Power source connection (PSU).
Functional earthing. Usually disconnected.
Description
Wi-Fi antenna connectors.
3G antenna connectors.
