3.1.2 Rear Panel

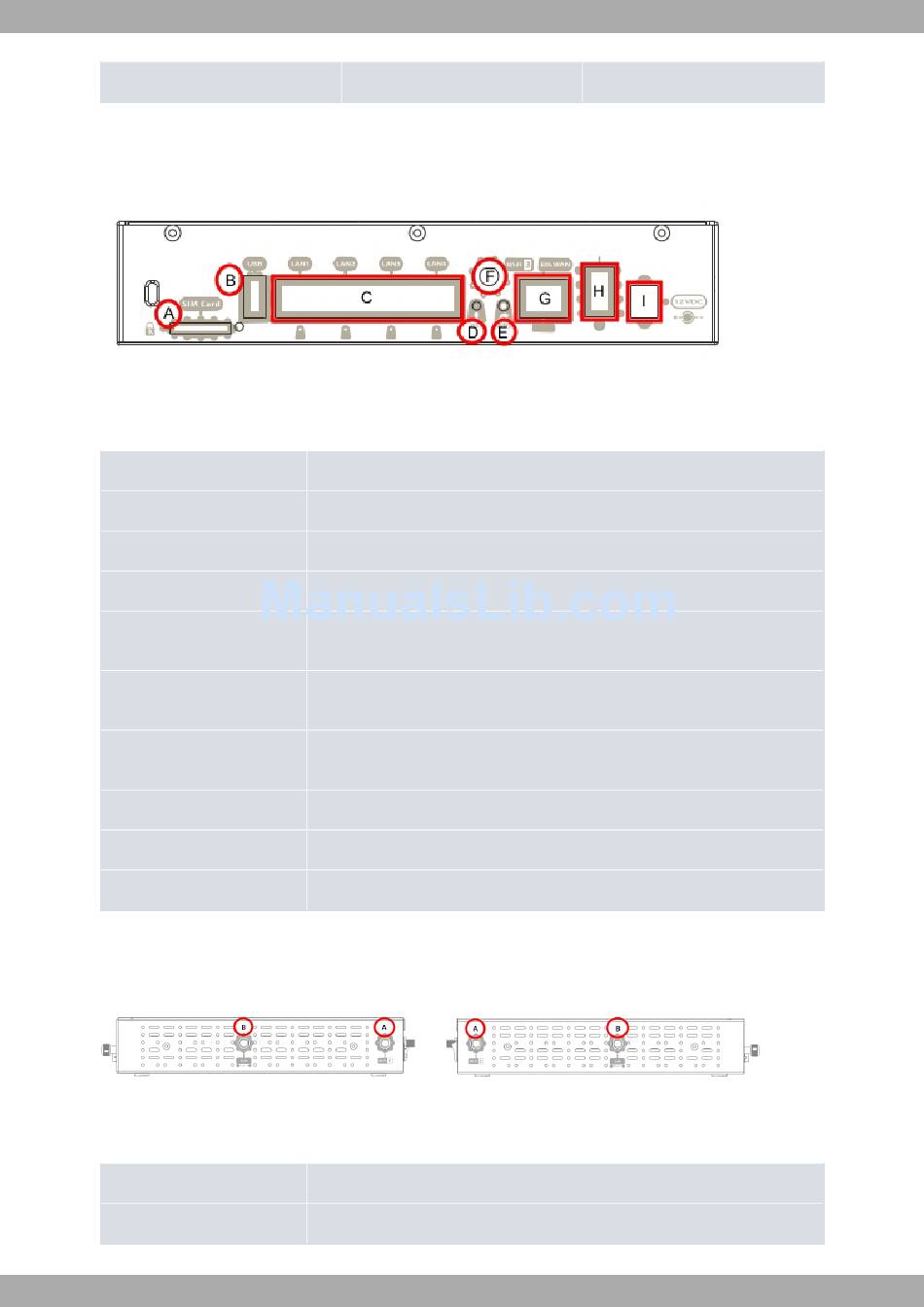

The following figure shows the rear panel. Here you will find the majority of the Teldat M1 router family connectors.
Rear panel
Fig. 2:
The following table provides information on each connector as well as a description:
Rear panel elements
Item
A
B
C
D
E
F
G
H
I

3.1.3 Side Panels

Two Wi-Fi and two 3G antenna connectors are located on the side panels, two each on either side:
Right hand side panel
Fig. 3:
The connectors are as follows:
Side panel connectors
Item
A
Teldat Router M1/M1L
Description
SIM Card. Slot where you can insert SIM card for the external 3G module.
USB. Slot where you can insert a 3G USB modem.
4-port Gigabit Ethernet Switch.
RST. Reset button. For further information on how the reset button works, please
see RST Button on page 13.
WPS (Wireless Protected Setup). This allows for easy and secure configuration of
the WiFi network parameters.
Wi-Fi Antenna nº3. This connector is used or not, depending on the Wi-Fi card the
router has.
Eth WAN. WAN Gigabit Ethernet.
On/Off switch.
Power source connection (PSU).
Left hand side panel
and Fig. 4:
Description
Wi-Fi antenna connectors.
