3.1.3 Side panels
On models RS123w and RS123w-4G, two 3G/4G antenna connectors are located on the side panels, one on each
side:

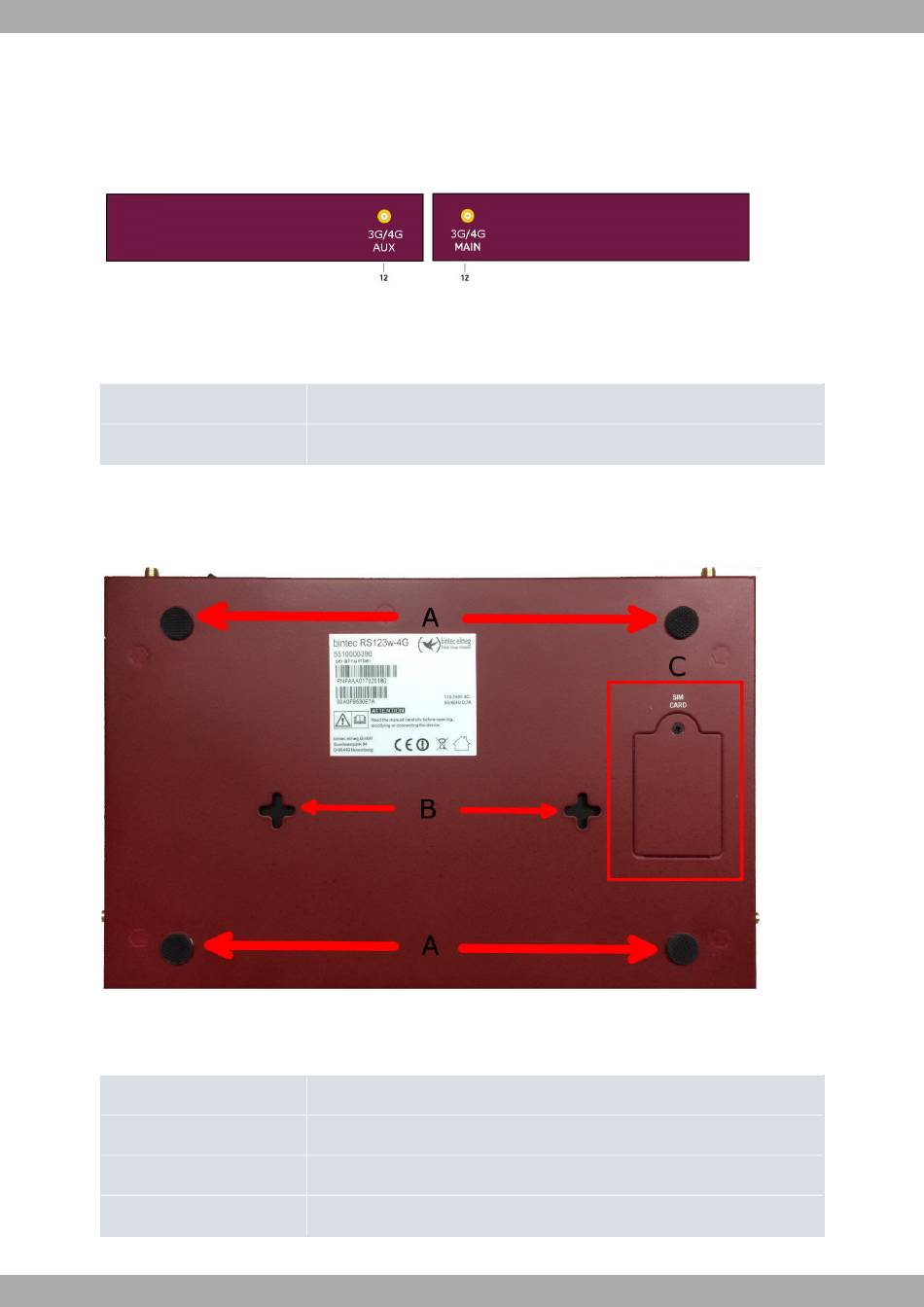

Fig. 6: Side panels
The connectors are as follows:
Side panel connectors
Item
12
3.1.4 Underside panel
The following components can be found on the underside panel:
Underside panel
Fig. 7:
The following table contains details on the significant components of the underside panel:
Underside panel components
Item
A
B
C
RS123 Router
Description
WWAN 3G/4G MAIN and AUX antenna connectors. Only on RS123w-4G.
Description
Rubber feet.
Holes for wall mounting.
Internal module SIM tray.
