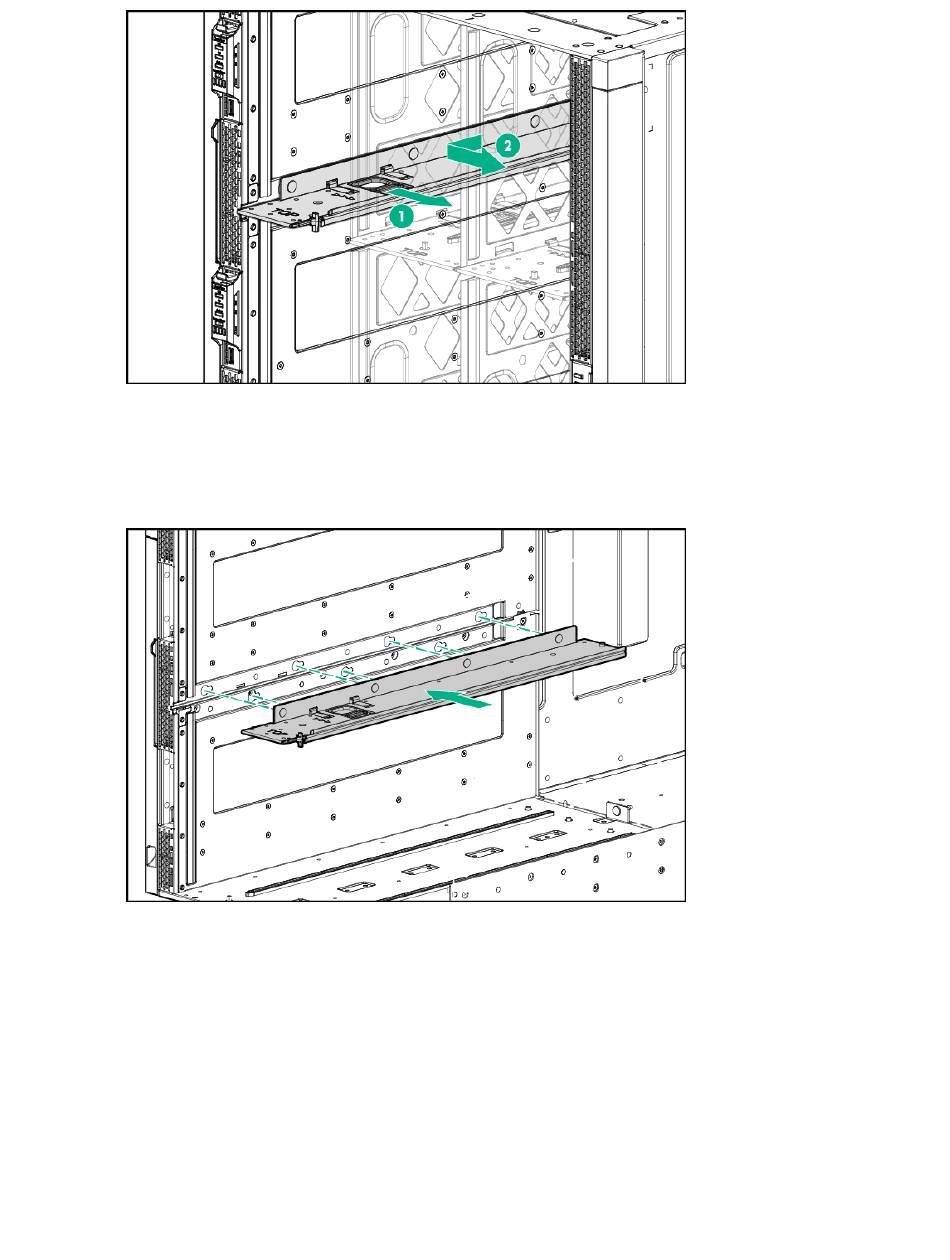

Replacing the half shelf
Procedure
1. Align the spools to the keyhole slots in the frame.
2. Insert the spools into the keyhole slots and slide the half shelf towards the rear of the frame until it locks into place.
Installation
59
