HPE Synergy 12000 Frame Setup And Installation Manual page 56

• If you are using a module bay blank that came with the frame, the coupler plate can be found with the contents of
the full-height device shipping box.
• If you are using a device bay blank that you purchased as an option, remove the coupler plate from inside the
blank.

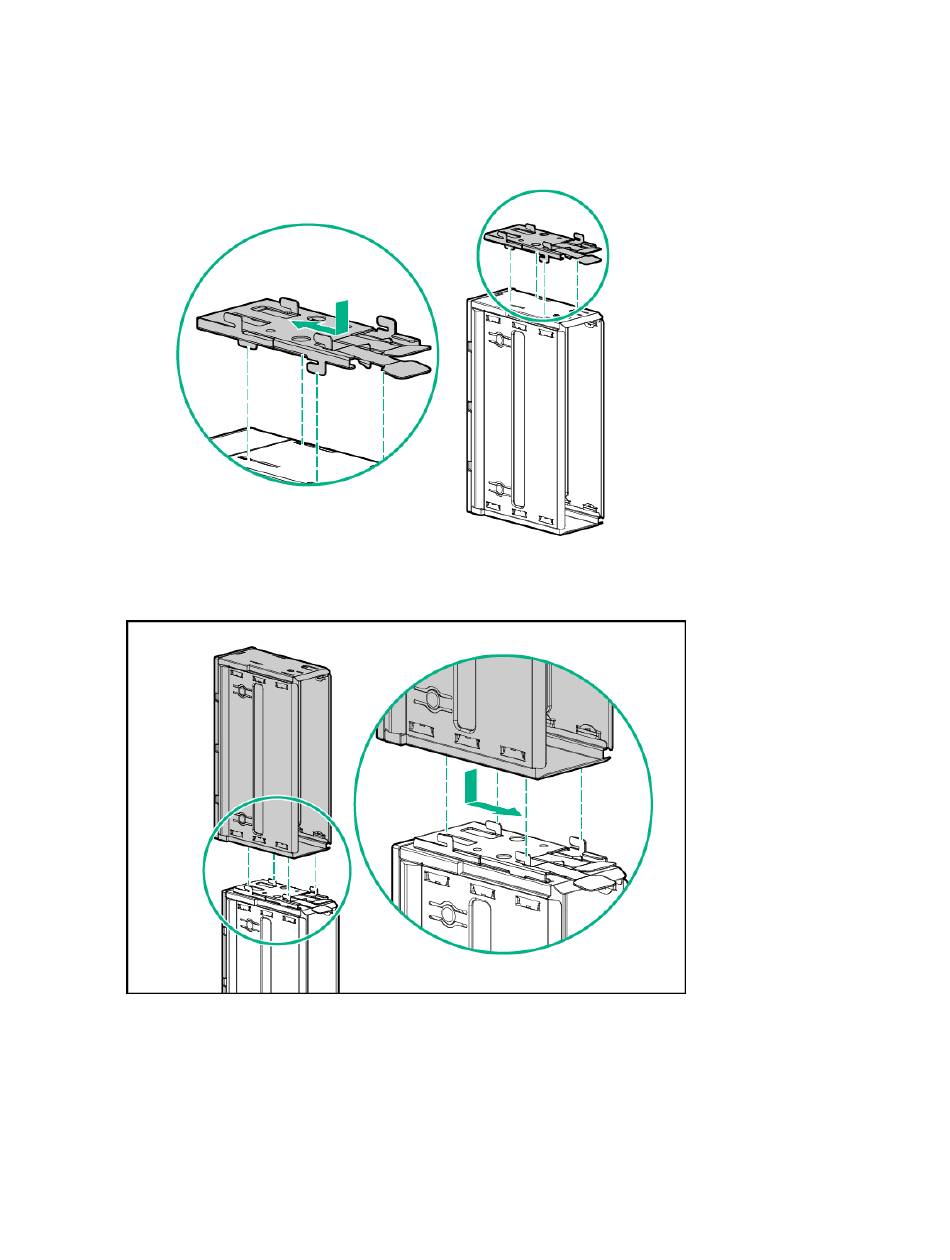

2. Fit the coupler plate into the slots on top of the blank, and then slide the coupler plate back until it snaps into place.
3. Fit the slots on the bottom of the second blank on to the coupler plate tabs, and then slide the second blank forward
until it snaps in place.
4. Install the full-height blank into the device bay.
56 Installation
