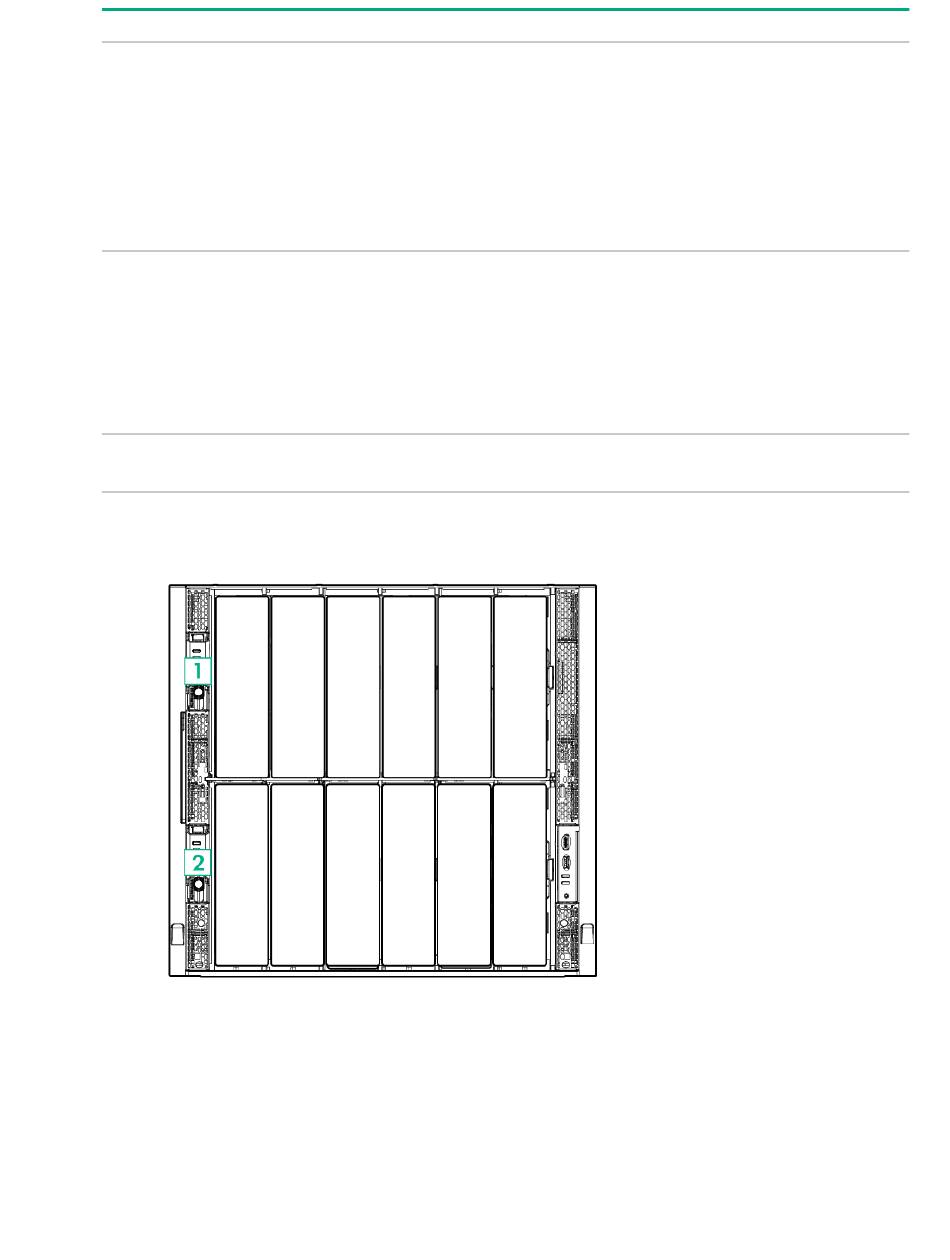

Appliance bay numbering
20
Component and LED identification
Description
Power LED
Reset button
USB port
Function
Indicates power to the appliance module.
•
Off — No power. Verify that the appliance module is fully inserted
into the frame link module.
•
Flashing amber — The appliance module is initializing.
•
Solid amber — The appliance module is powered off.
•
Solid green — The appliance module is powered on.
Using an applicator such as a paper clip, press the recessed button to
reset the appliance module.
•
Press and release — Resets the appliance module.
•
Press and hold until activity LED is flashing green — Initiates
reimaging of the appliance module from files on the USB flash drive
plugged into the appliance module.
USB 2.0/3.0 port for connecting a USB drive to flash a USB recovery
image.
