3. When the shelf is fully inserted, release the latches to lock the shelf in place.

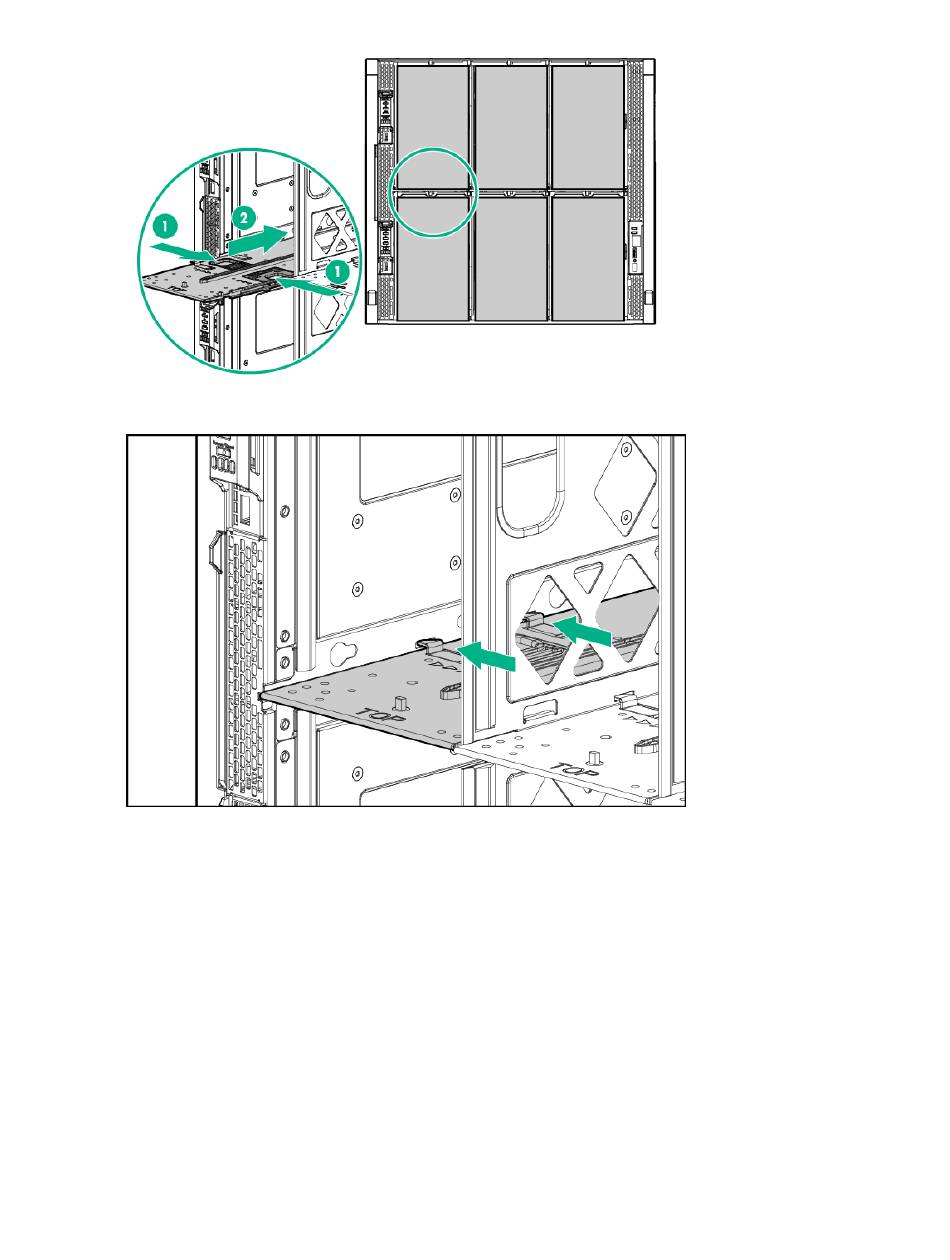

Removing the half shelf
Prerequisites
If installed, remove the full-height compute module from the adjacent bay before removing and replacing the half shelf.
Procedure
1. To release the locking mechanism, press and hold the shelf release latch.
2. Slide the half shelf towards the front of the frame, and then pull away from the frame.
58
Installation
