6.3 Cable

All cables supplied by Danfoss have a nameplate as per
the example in Illustration 6.33.
1
Danfoss ISD 510 Hybrid xxxx Cable
2
3
Ordering no. 175Gxxxx Rev. x.
4
Speci cation no. 175Rxxxx Rev. xxx.
5
yy.mm.dd
6
Length: xxxx
7
Power rating: 5 x 2.5mm 1000V 18A
8
Signal rating: 2 x 0.5mm
Signal rating Ethernet: 2 x 2 x AWG24 300V
9
6 6
1 7
1 Cable type
2 Ordering code
3 Revision of specification
4 Manufacturing date
5 Length
6 Power rating
7 Signal rating
8 Signal rating for Ethernet
9 Barcode
10 Manufacturer logo

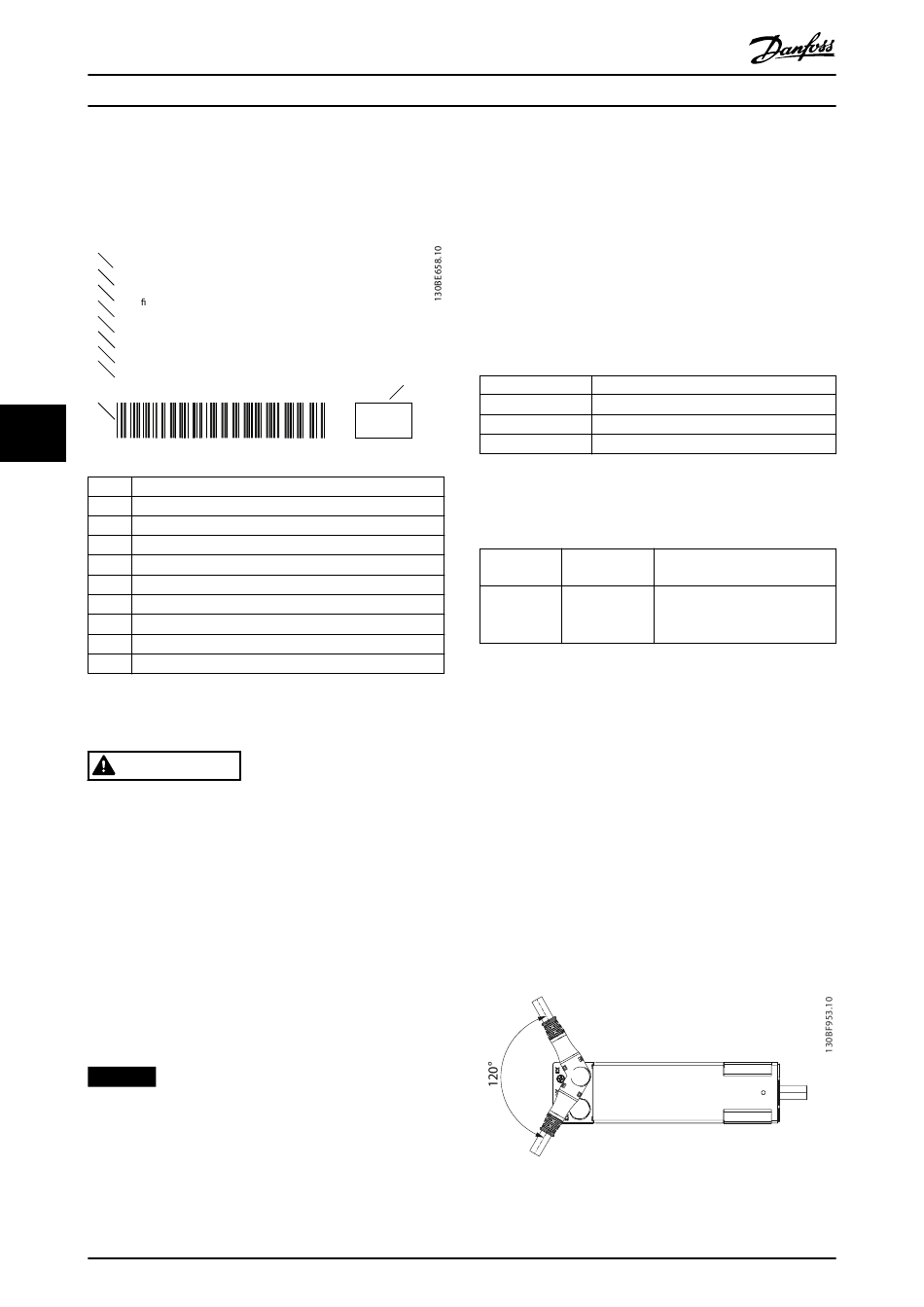

Illustration 6.33 Example of a Cable Nameplate
WARNING
HIGH VOLTAGE
®
The VLT Integrated Servo Drive ISD 510 System contains
components that operate at high voltage when
connected to the electrical supply network.
A hazardous voltage is present on the servo drives and
the SAB whenever they are connected to the mains
network.
There are no indicators on the servo drive or SAB that
indicate the presence of mains supply.
Incorrect installation, commissioning, or maintenance can
lead to death or serious injury.
•
Installation, commissioning, and maintenance
must only be performed by qualified personnel.
NOTICE
Do not use force to connect or fit the connector. This
causes permanent damage to connector and cables.
Before working on the power connector (connecting and
disconnecting M23), disconnect the mains supply and wait
for discharge time to elapse (see chapter 1.6 Safety).
74
VLT
2
2
300V
5 G 8 9 X X
Danfoss A/S © 08/2017 All rights reserved.
® ®
Integrated Servo Drive ISD
The interlocking of the hybrid feed-in cable and loop cable
with the servo drive is indicated by the marking OPEN on
the cable connector.
The advanced servo drive is delivered with M8, M12, and
M23 caps. These caps protect the servo drive connectors
during transportation and storage. Furthermore, they are a
part of the IP protection (IP67 for M8 and M12 covers; IP40
for M23 covers) and must remain fitted if the respective
connectors are not used. To achieve IP67 on the M23
connector, use the M23 blind cap.
Connector
10
M8
M12
M23
Table 6.27 Tightening Torques

6.3.1 Feed-In Cable

Shielded/
unshielded
Shielded
Table 6.28 Feed-In Cable
1) Maximum 100 m total length for each line of servo drives.
There are 2 types of connector for the feed-in cable:
•
M23 angled connector
•
M23 straight connector
See chapter 5.5.1.1 Feed-In Cable for ordering numbers.

6.3.1.1 Clearances

Illustration 6.35 and Illustration 6.36 show the dimensions of
2 types of M23 cable connectors installed on the servo
drive. A size 2 servo drive is used in this example and the
dimensions of other sizes differ.
The M23 angled connector can be adjusted or tilted up to
120°, as illustrated in Illustration 6.34.
Illustration 6.34 Adjustable Angle of the Angled Connector
510 System
Tightening torque [Nm]
0.2
0.4
0.8
Maximum Description
cable length
Hybrid cable (overall shield with
40 m 1)
additional fieldbus and safety
section shield).
MG36C102
