Specifications

6.1.2 Terminal Locations

6.1.2.1 Connectors on the Servo Drives

This chapter details all possible connections for the
standard and advanced servo drive. Refer to the tables in
this chapter for maximum cable lengths, ratings, and other
limits.
There are 5 connectors on the servo drives.
Connector Description
X1 M23 Feed-in or loop hybrid cable input
X2 M23 Loop hybrid cable output or fieldbus
extension cable
X3 (advanced version M8 Ethernet cable (minimum CAT5,
only) shielded)
X4 (advanced version M12 I/O and/or encoder cable (shielded)
only)
X5 (advanced version M8 LCP cable (shielded)
only)

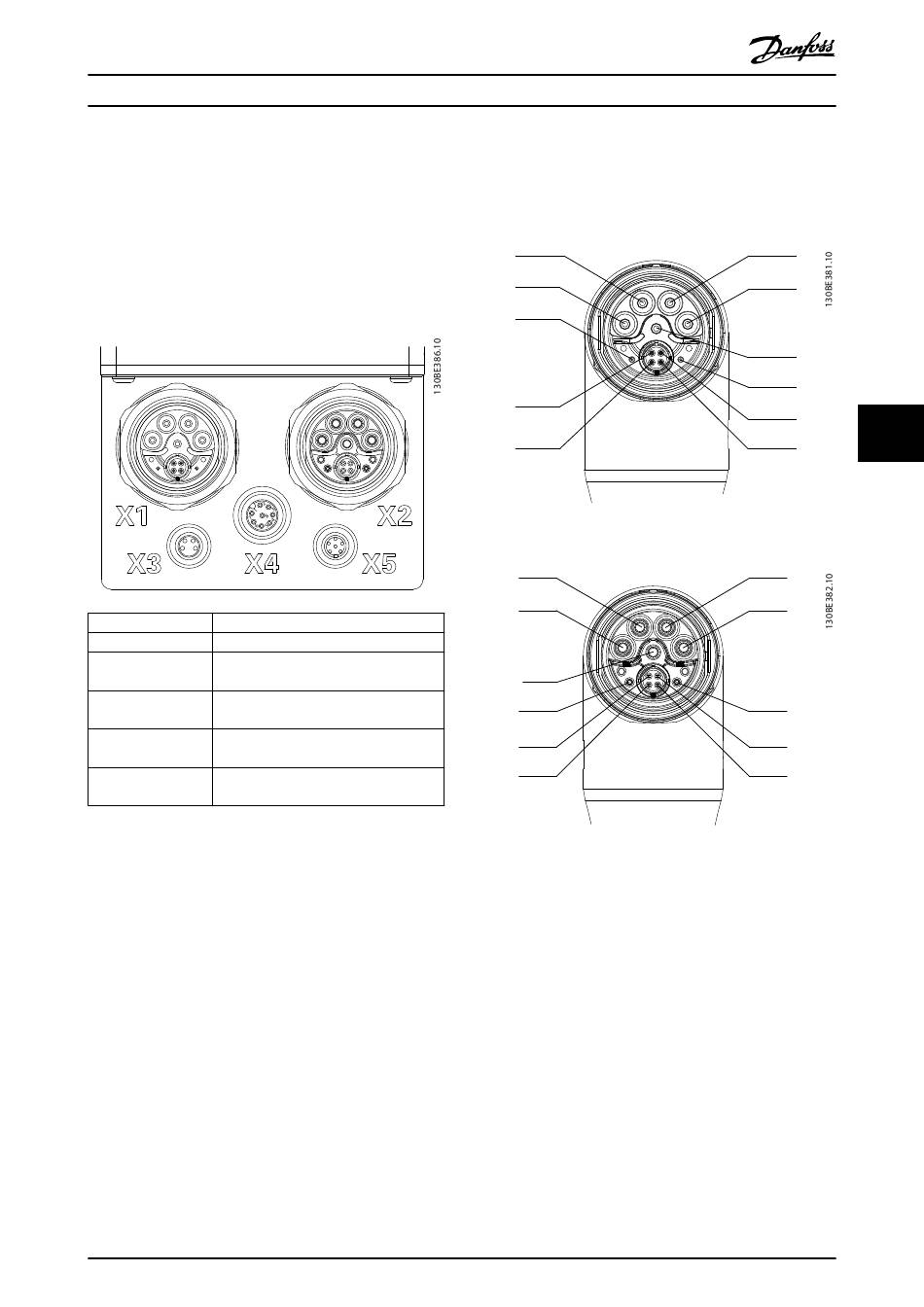

Illustration 6.5 Connectors on the Servo Drive
MG36C102
Design Guide
X1 and X2: Hybrid connector (M23)
The hybrid cable provides the supply (mains and auxiliary),
the communication lines, and the safety supply for each
line of servo drives. Input and output connectors are
connected inside the servo drive.
B
A
3
7
6
Illustration 6.6 X1: Male Hybrid Connector (M23)
C
D
PE
2
8
5
Illustration 6.7 X2: Female Connector (M23)
Danfoss A/S © 08/2017 All rights reserved.
C
D
PE
2
6 6
8
5
B
A
3
7
6
