Description
ISD Flange

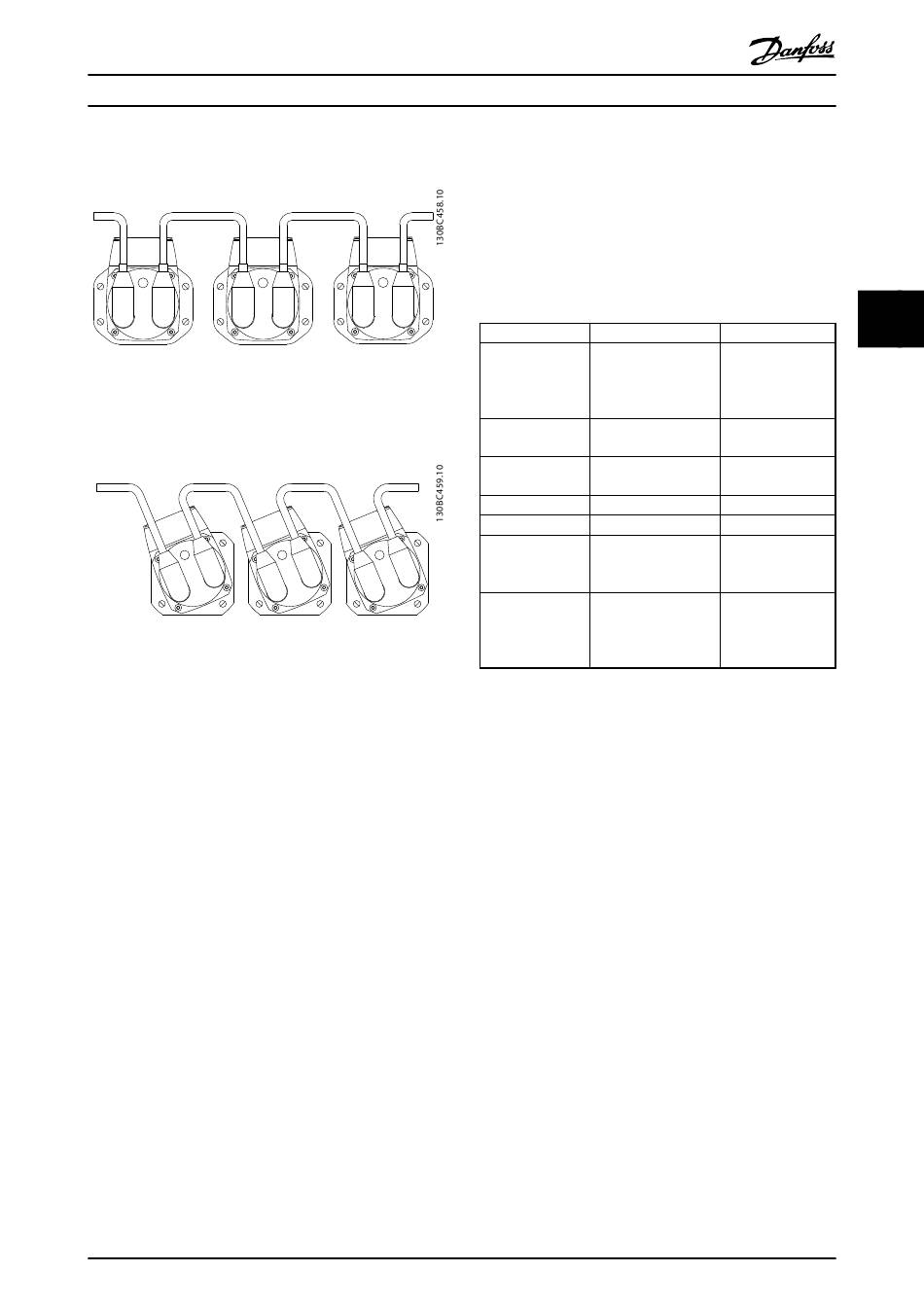

Illustration 4.8 Hybrid Cable Connection for ISD Flange
IEC Flange
Illustration 4.9 Hybrid Cable Connection for IEC Flange

4.3.1 Layout and Routing

Observe the following instructions for cable layout and
routing:
•
The total length of the cables in a system may
not exceed 100 m (maximum CAN bus length at
500 Kbit/s).
•
The cables should generally be routed to keep
the cable runs as short as possible.
•
Consult Danfoss if the length of the CAN bus
exceeds 100 m.
Routing in drag chains
The hybrid cable is compatible with drag chains and
therefore suitable for use in moving systems. The number
of bending cycles is strongly dependent on individual
conditions and must therefore be determined in advance
for each application.
®
VLT ISD 410 Servomotor Operating Instructions

4.3.2 Hybrid Cable

The ends of the connection cables are fitted with M23
connectors. The feed cable is pigtailed at the input end to
allow the individual wires to be connected to the
connection box.
Cable Design
Rated voltage
Test voltage
Load
Number of wires
Cross section
Characteristic
impedance of data
pair
Colour-coded wires Data pair: blue/white
Table 4.6 Cable Structure
®
MG75D102 - VLT is a registered Danfoss trademark
CAN Lines Power Cable
600 V (due to 600 V
enclosure in a
common sheath with
power wires)
According to standard According to
standard
<500 mA Max. 10 A
continuous current
2 x 2 twisted pairs 4
0.5 mm 2 1/2.5 mm
80-200 Ω
–
PE: green/yellow
Supply: red/black Phase: black with
printed numbers
(1, 2, 3)
4 4
