3.3.3 Cable Entry and Anchoring

Cables enter the unit through gland plate openings in the bottom. Illustration 3.8, Illustration 3.9, Illustration 3.10, and
Illustration 3.11 show gland entry locations and detailed views of anchoring hole dimensions.
3 3

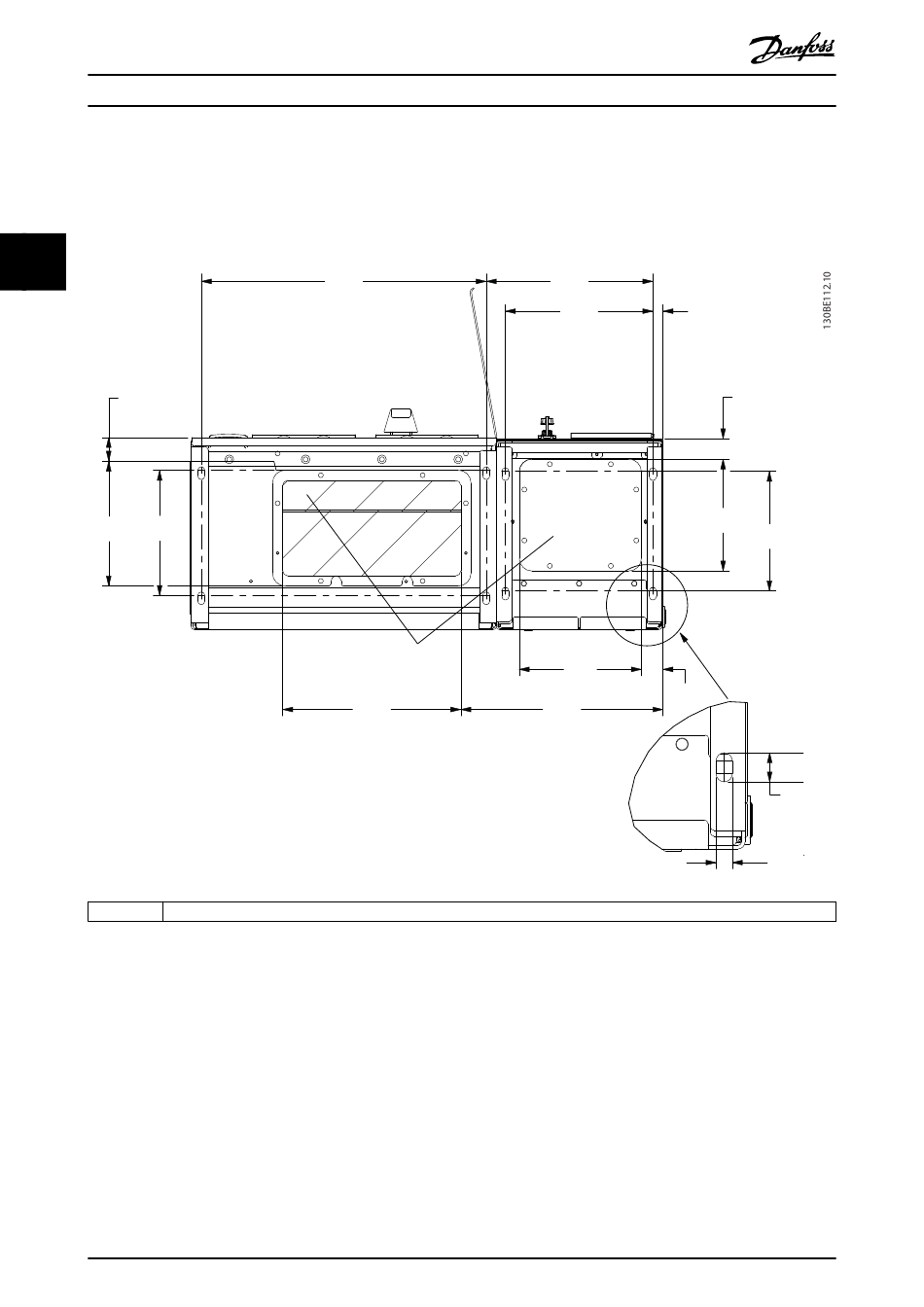

Bottom view, D1n/D2n
64.5
[2.5]
227.8 246.0
[9.0] [9.7]
1 Cable entry locations
Illustration 3.8 Cable Entry Diagram, Enclsoure Size D1n
