2.12.3 Operating LEDs on the VLT
Access Box

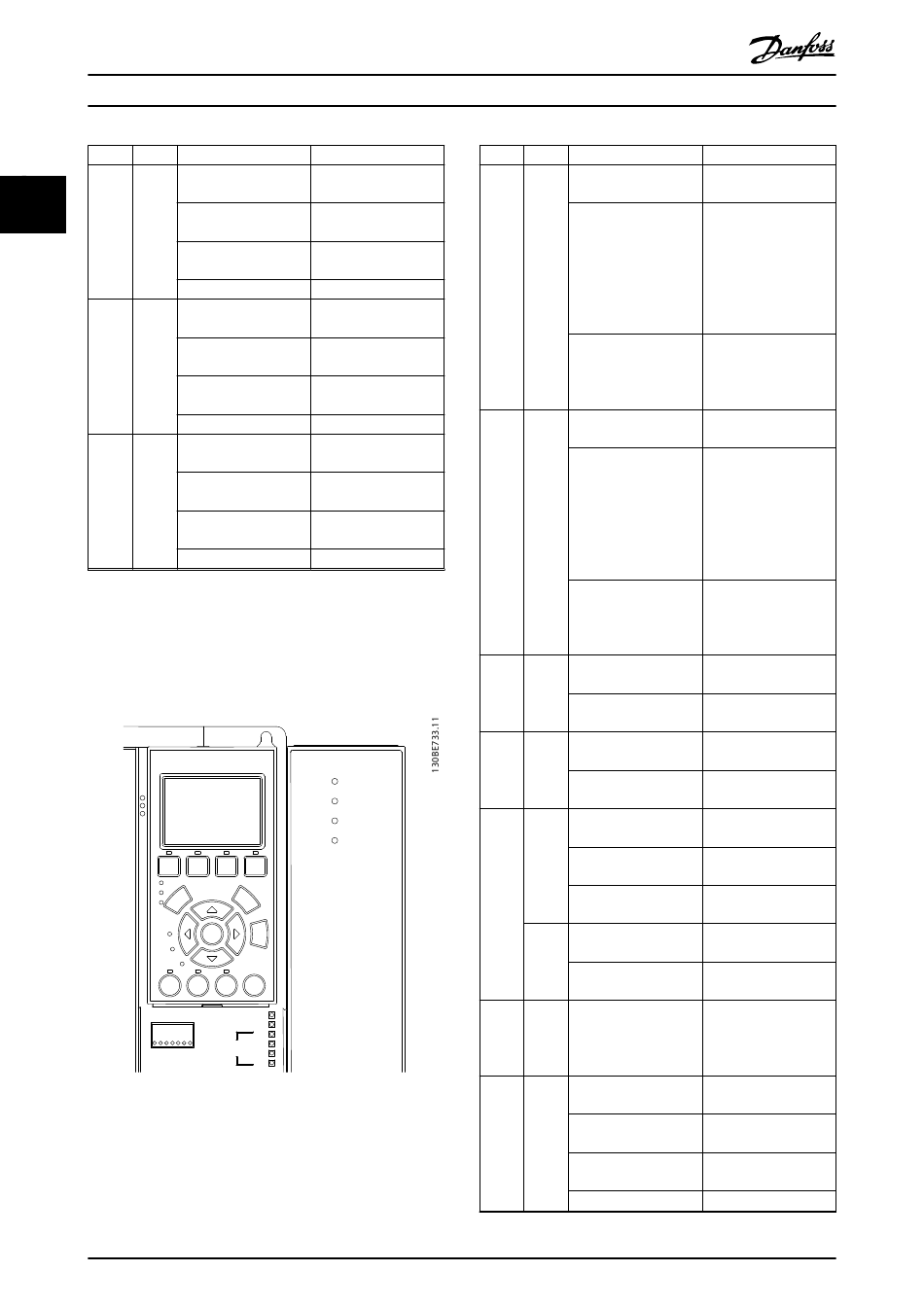

Illustration 2.20 Operating LEDs on the SAB
30
VLT
Flash status Description
– Link/activity status of
Hybrid In (X1)
On Ethernet link
established.
Flashing Ethernet link
established and active.
Off No link.
– Link/activity status of
Hybrid Out (X2)
On Ethernet link
established.
Flashing Ethernet link
established and active.
Off No link.
– Link/activity status of
the Ethernet port (X3).
On Ethernet link
established.
Flashing Ethernet link
established and active.
Off No link.
®
Aux 1
Aux 2
Safe 1
Safe 2
SAB STAT
NET STAT
X1
X2
LINK
ACT X3
X4
