Rear Transition Module (RTM)

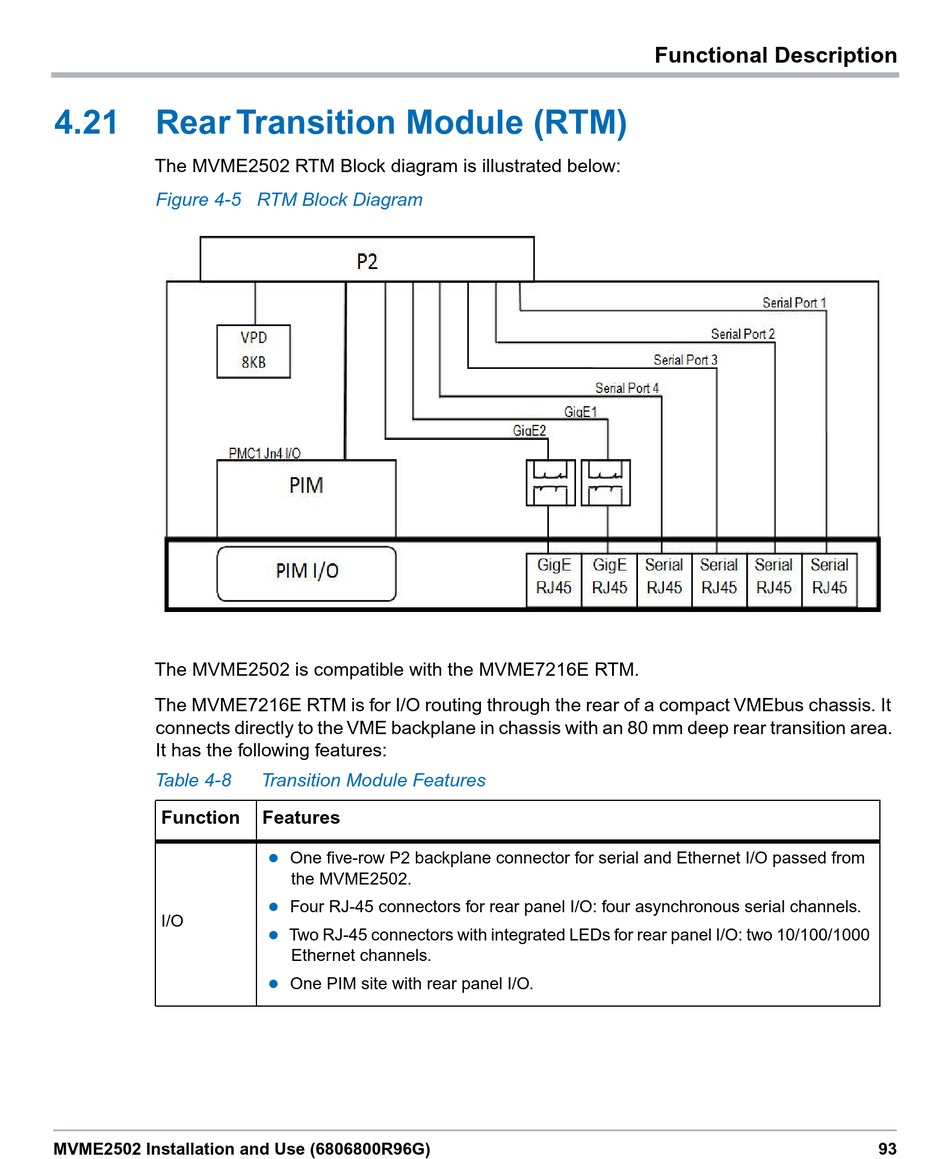

The MVME2502 RTM Block diagram is illustrated below:

Figure 4-5 RTM Block Diagram

The MVME2502 is compatible with the MVME7216E RTM.
The MVME7216E RTM is for I/O routing through the rear of a compact VMEbus chassis. It
connects directly to the VME backplane in chassis with an 80 mm deep rear transition area.
It has the following features:
Table 4-8
Function
I/O
MVME2502 Installation and Use (6806800R96G)
Transition Module Features
Features

One five-row P2 backplane connector for serial and Ethernet I/O passed from
the MVME2502.

Four RJ-45 connectors for rear panel I/O: four asynchronous serial channels.

Two RJ-45 connectors with integrated LEDs for rear panel I/O: two 10/100/1000
Ethernet channels.

One PIM site with rear panel I/O.
