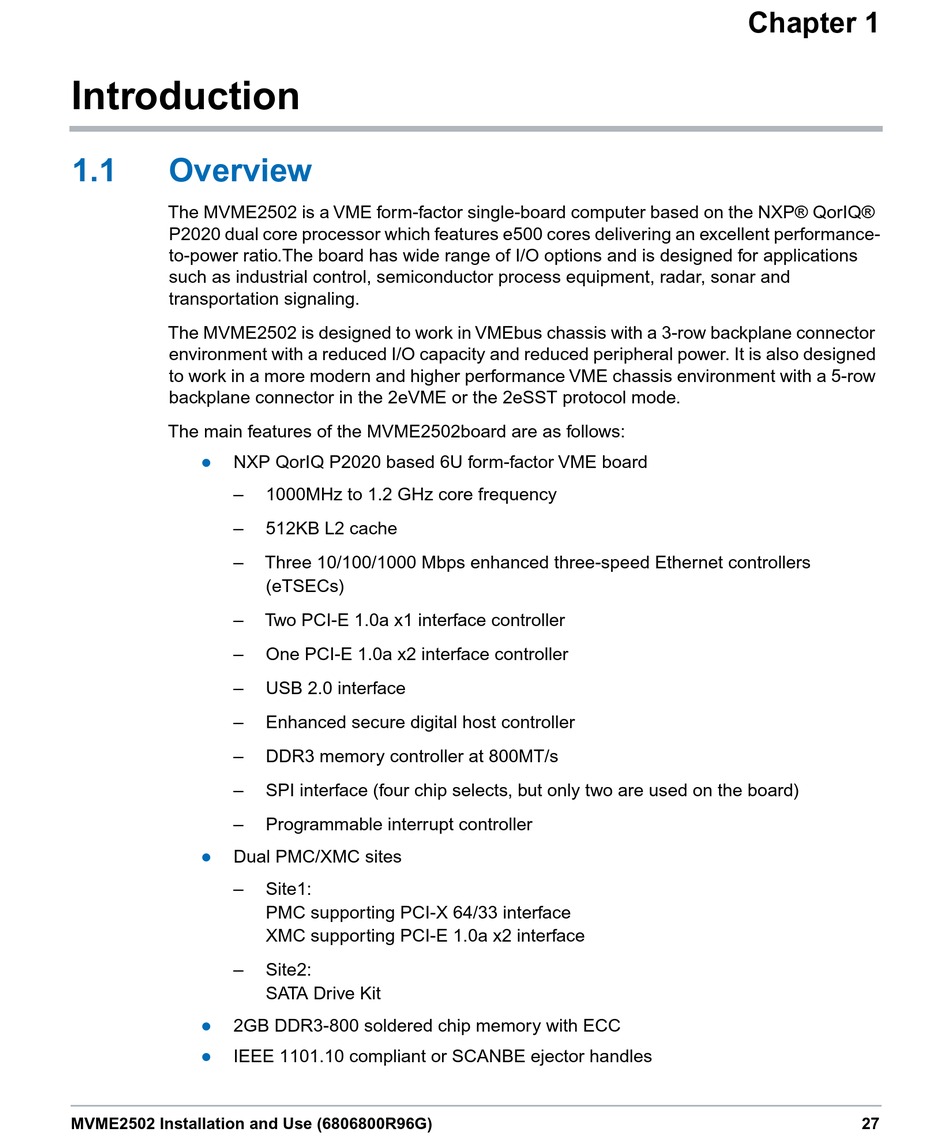

Introduction

1.1

Overview

The MVME2502 is a VME form-factor single-board computer based on the NXP® QorIQ®
P2020 dual core processor which features e500 cores delivering an excellent performance-
to-power ratio.The board has wide range of I/O options and is designed for applications
such as industrial control, semiconductor process equipment, radar, sonar and
transportation signaling.
The MVME2502 is designed to work in VMEbus chassis with a 3-row backplane connector
environment with a reduced I/O capacity and reduced peripheral power. It is also designed
to work in a more modern and higher performance VME chassis environment with a 5-row
backplane connector in the 2eVME or the 2eSST protocol mode.
The main features of the MVME2502board are as follows:
 NXP QorIQ P2020 based 6U form-factor VME board
–
–
–
–
–
–
–
–
–
–
 Dual PMC/XMC sites
–
–
 2GB DDR3-800 soldered chip memory with ECC
 IEEE 1101.10 compliant or SCANBE ejector handles
MVME2502 Installation and Use (6806800R96G)
1000MHz to 1.2 GHz core frequency
512KB L2 cache
Three 10/100/1000 Mbps enhanced three-speed Ethernet controllers
(eTSECs)
Two PCI-E 1.0a x1 interface controller
One PCI-E 1.0a x2 interface controller
USB 2.0 interface
Enhanced secure digital host controller
DDR3 memory controller at 800MT/s
SPI interface (four chip selects, but only two are used on the board)
Programmable interrupt controller
Site1:
PMC supporting PCI-X 64/33 interface
XMC supporting PCI-E 1.0a x2 interface
Site2:
SATA Drive Kit
