Functional Description
4.16

Clock Structure

A total of three IDT chips, a discrete oscillator and crystal to support all the clock
requirements of MVME2502.

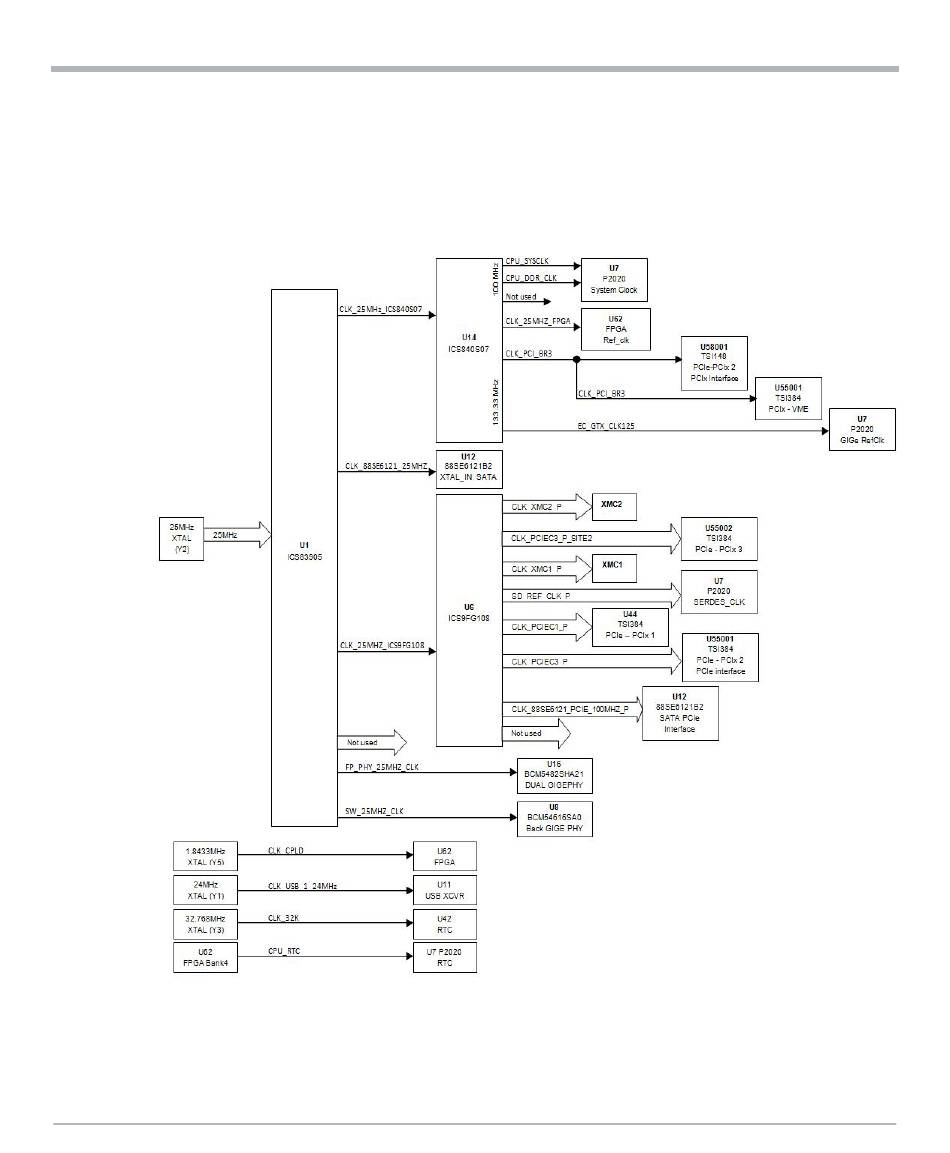

Figure 4-3 Clock Distribution Diagram

MVME2502 Installation and Use (6806800R96G)
89
