Hardware Preparation and Installation

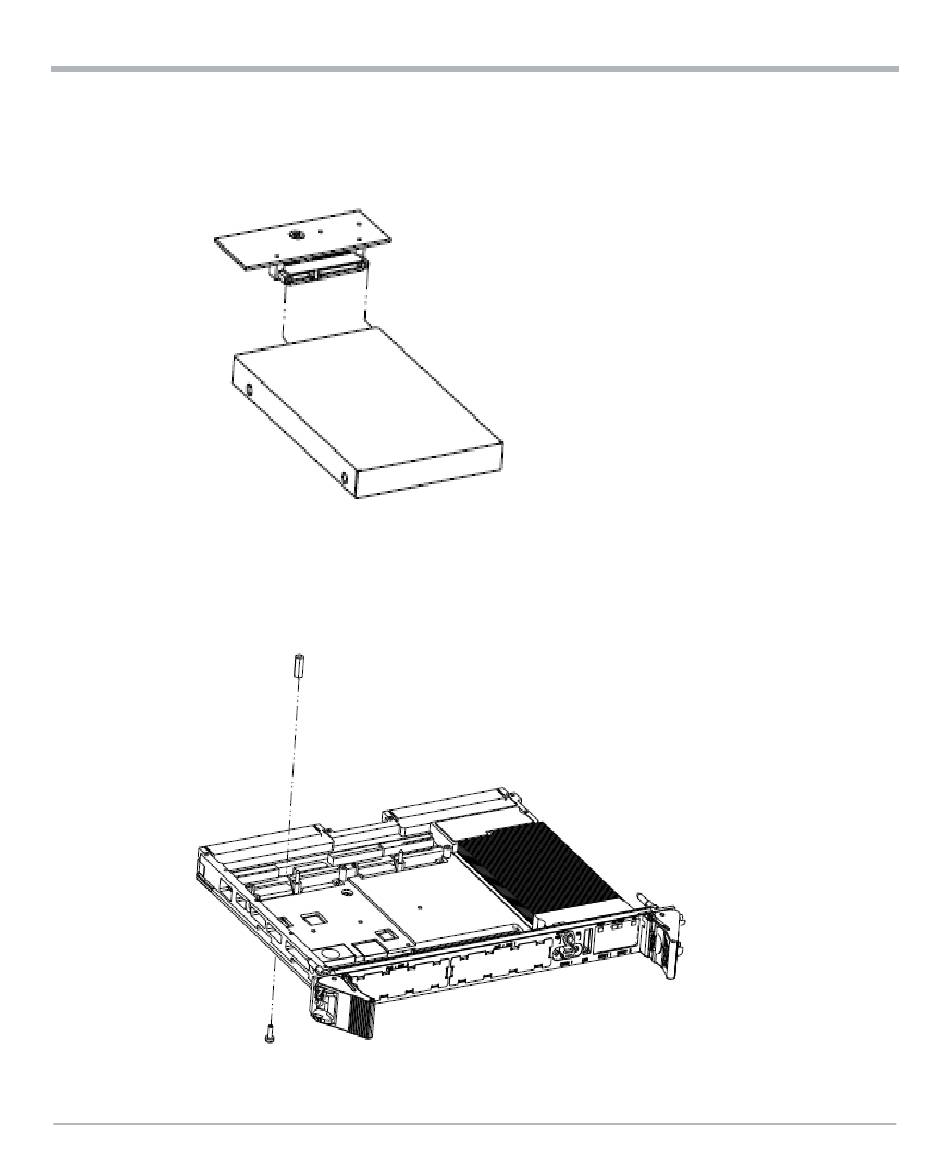

2. Assemble the SATA adapter board to the blade and ensure that it is properly aligned
with the standoff. Attach the screws to anchor the SATA adapter board to the blade.
NOTE: The 3.3V key must be removed to install the SATA kit.
3. Attach hex standoff to main board.
MVME2502 Installation and Use (6806800R96G)
41
