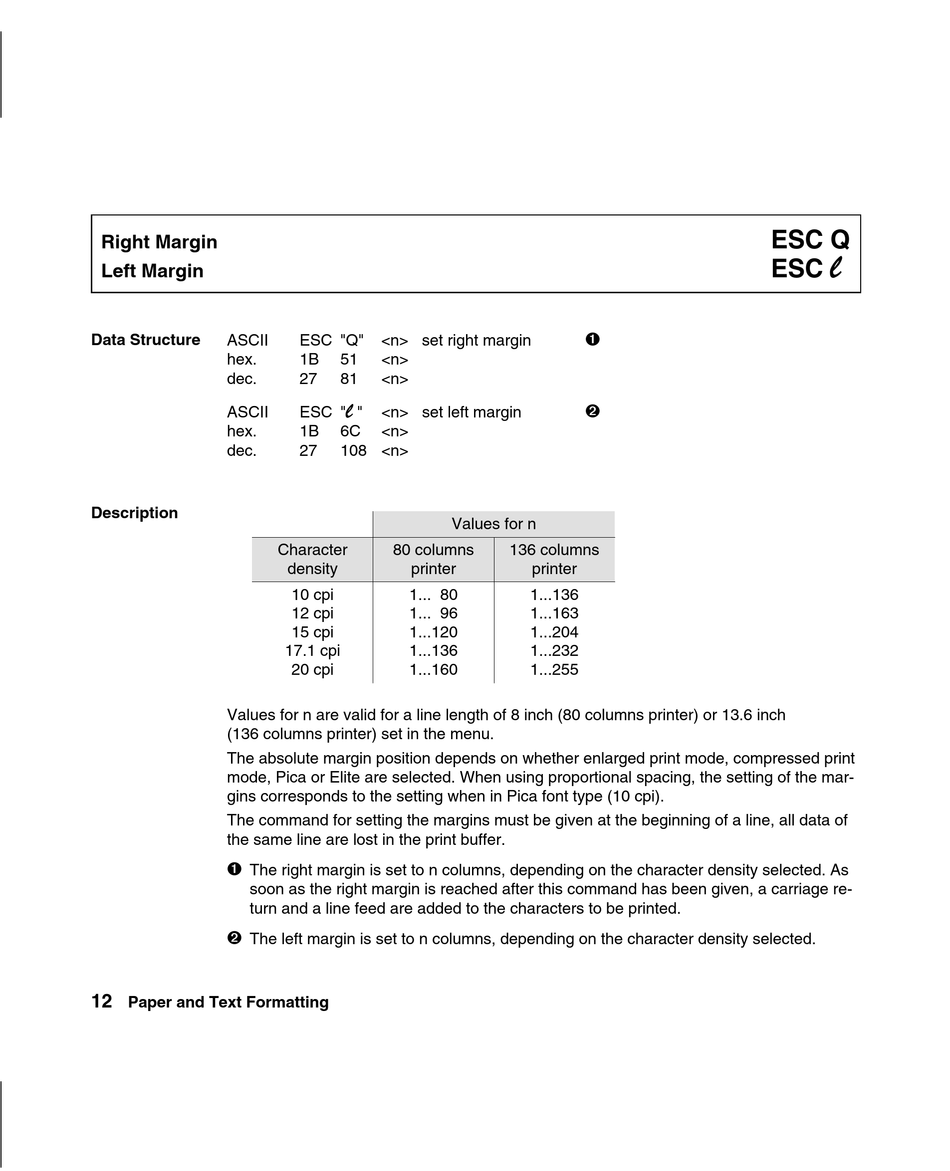

Right Margin; Left Margin - TallyGenicom Matrix Printer Programmer's Manual

Right Margin

Left Margin

Data Structure ASCII
hex.
dec.
ASCII
hex.
dec.
Description
Values for n are valid for a line length of 8 inch (80 columns printer) or 13.6 inch
(136 columns printer) set in the menu.
The absolute margin position depends on whether enlarged print mode, compressed print
mode, Pica or Elite are selected. When using proportional spacing, the setting of the mar-
gins corresponds to the setting when in Pica font type (10 cpi).
The command for setting the margins must be given at the beginning of a line, all data of
the same line are lost in the print buffer.
–
The right margin is set to n columns, depending on the character density selected. As
soon as the right margin is reached after this command has been given, a carriage re-
turn and a line feed are added to the characters to be printed.
—
The left margin is set to n columns, depending on the character density selected.
12
Paper and Text Formatting
ESC "Q" <n> set right margin
1B 51 <n>
27 81 <n>
l
ESC " " <n> set left margin
1B 6C <n>
27 108 <n>
Character 80 columns
density printer
10 cpi 1... 80
12 cpi 1... 96
15 cpi 1...120
17.1 cpi 1...136
20 cpi 1...160
–
—
Values for n
136 columns
printer
1...136
1...163
1...204
1...232
1...255
ESC Q
l
ESC
