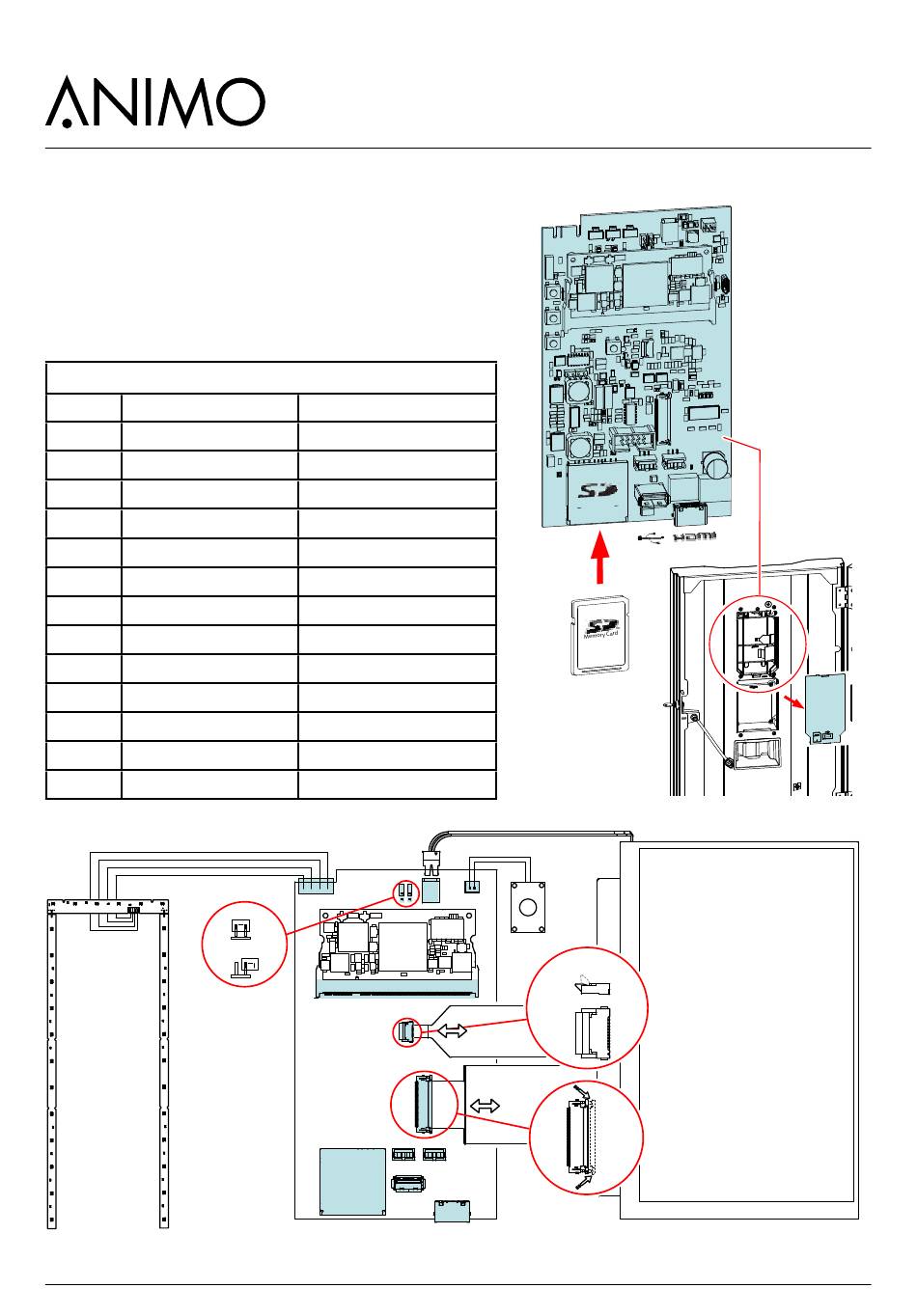

9.2 Interface / Display

The interface connects all the components located in
and on the door and is connected by a cable to the
main control.
9.2.1 Connections
Interface & Display
Conn
OptiLight connection to Optilight
Jmp 1 jumper 1
Jmp 2 jumper 2
Backlight backlight Touchpanel
Speaker loudspeaker
SOM System on module
Touch connection touch surface
LCD connection lcd
Cup 1 cup sensor left (opional)
Cup 2 cup sensor right (optional)
SD SD card holder
USB USB stick connection
HDMI connection to mainboard
LED
OptiLight
LED
LED
Notes
Cup sensor A= Yes / B= No
no function
see dismantling instructions
see dismantling instructions
coffee spout position
hot water spout position
Jmp 1 2
Optilight
A
SOM module
B
Touch
LCD
Cup 1 Cup 2
USB
SD
Backlight LCD
Speaker
Speaker
Open
Close
HDMI
Main board
114
OptiFresh (Bean) Touch
Touchpanel/LCD
Attention:
handle the foil
connectors with
high care!
Open
2017/09 Rev. 0.0
