OptiFresh (Bean) Touch

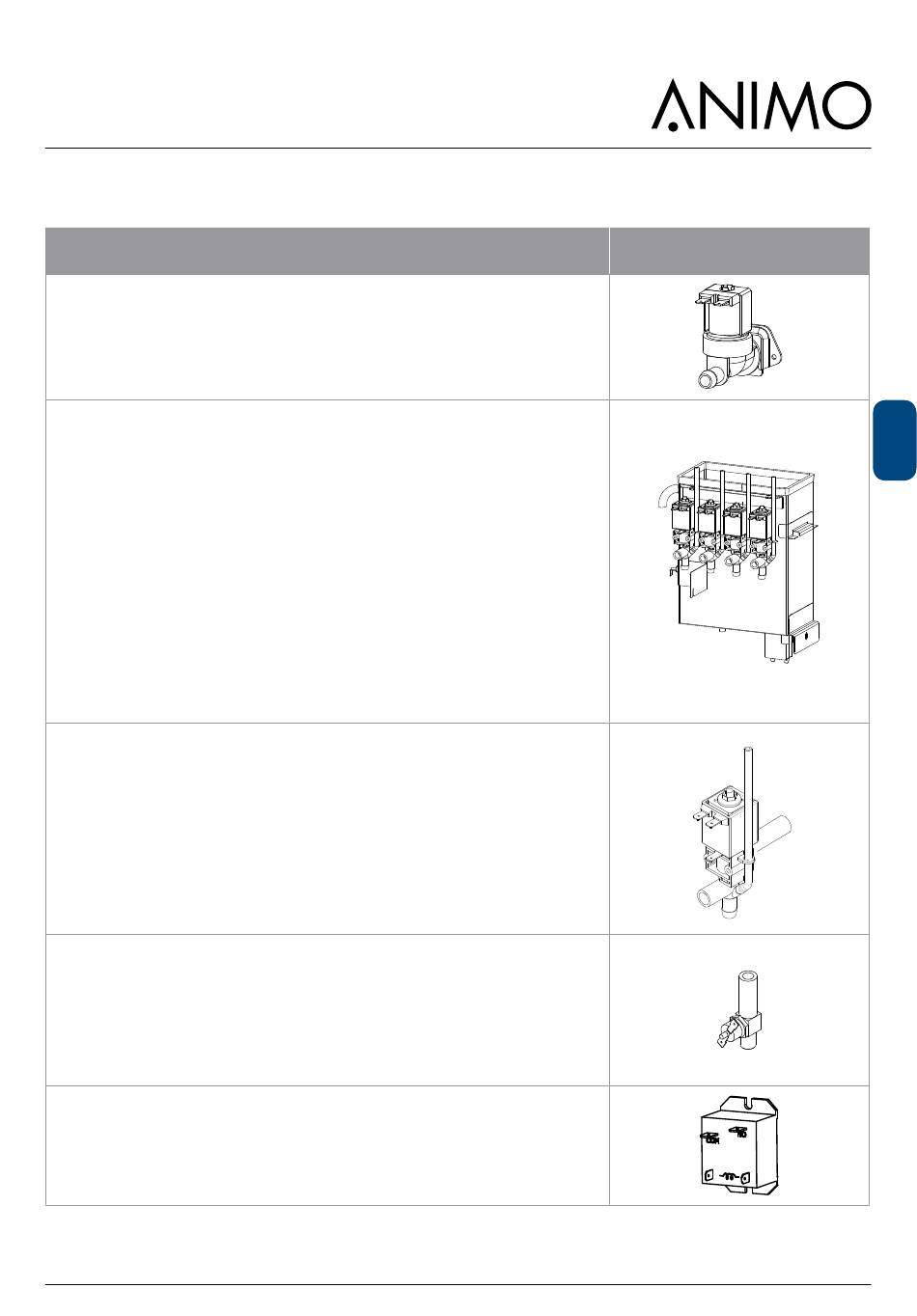

3.2 Components

Opens and closes the water supply, 24 Vdc coil closure.
Water flow abt. 2,5 Litre/min.
Open 3L boiler manufactured entirely from material AISI 316L ,
Temperature sensor [1000740]
Screw thread M12x1 / material AISI 316L / 100 kΩ/25°C
Heating element H1 [03216]
Boil-dry protection [03093]
Activation temperature 135°C / 1 pole / manual reset
See chapter 3.7 Water boiler for operation.
Dispensing valve [03250]
Supplies water to the fresh brew unit and mixers.
See chapter 3.7.1 Dispensing valves for operation.
Steam thermostat [03484]
The steam thermostat contact is in series with the solid state.
This thermostat prevents the boiler from boiling empty when the
solid state breaks down in a operating condition. The thermostat
switches the heating element OFF when steam escapes from the
boiler. The thermostat must be manually reset.
The heating element, brewer motor and pump is controlled by a
2017/09 Rev. 0.0
Component
Inlet valve KW1 [02801]
Boiler
insulated.
230V 2200W
Power Relais [1004596]
power relay.
