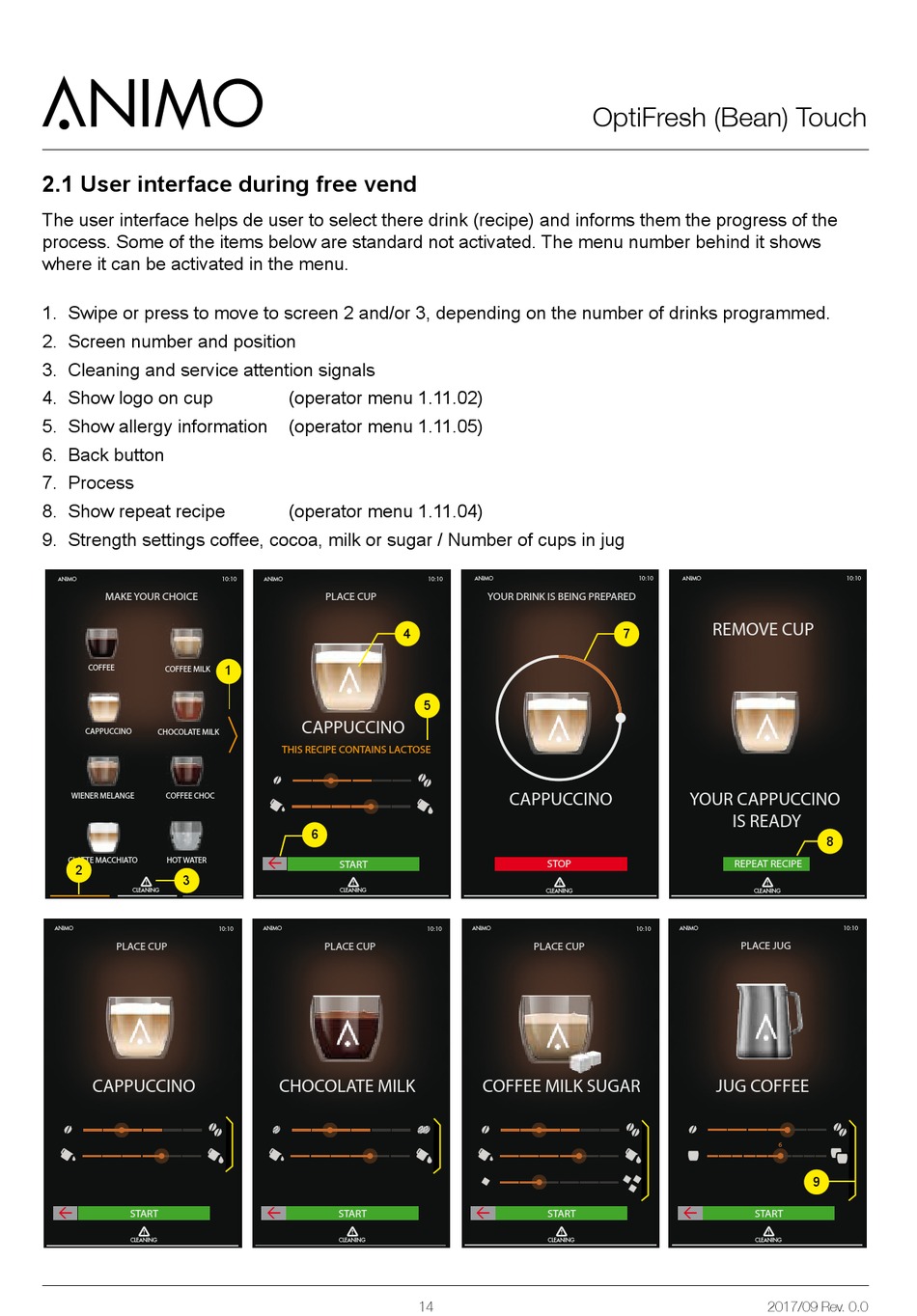

2.1 User interface during free vend

The user interface helps de user to select there drink (recipe) and informs them the progress of the
process. Some of the items below are standard not activated. The menu number behind it shows
where it can be activated in the menu.
1. Swipe or press to move to screen 2 and/or 3, depending on the number of drinks programmed.
2. Screen number and position
3. Cleaning and service attention signals
4. Show logo on cup
5. Show allergy information
6. Back button
7. Process
8. Show repeat recipe
9. Strength settings coffee, cocoa, milk or sugar / Number of cups in jug
