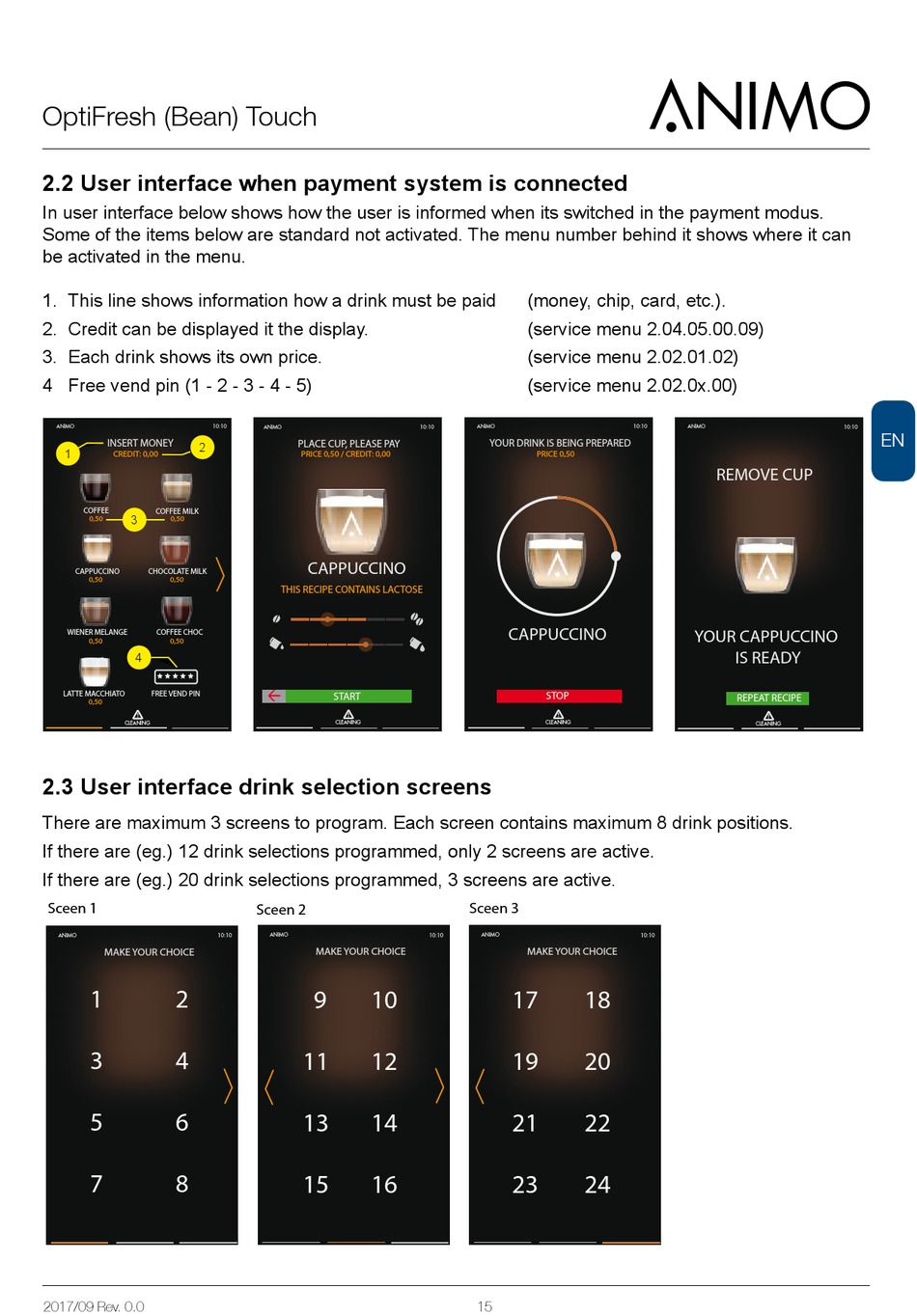

2.2 User interface when payment system is connected

In user interface below shows how the user is informed when its switched in the payment modus.
Some of the items below are standard not activated. The menu number behind it shows where it can
be activated in the menu.
1. This line shows information how a drink must be paid
2. Credit can be displayed it the display.
3. Each drink shows its own price.
4 Free vend pin (1 - 2 - 3 - 4 - 5)
ANIMO 10:10
INSERT MONEY
2
1
CREDIT: 0,00
COFFEE
COFFEE MILK
3
0,50 0,50
CAPPUCCINO CHOCOLATE MILK
0,50 0,50
WIENER MELANGE COFFEE CHOC
0,50 0,50
4

LATTE MACCHIATO FREE VEND PIN
0,50
CLEANING
2.3 User interface drink selection screens
There are maximum 3 screens to program. Each screen contains maximum 8 drink positions.
If there are (eg.) 12 drink selections programmed, only 2 screens are active.
If there are (eg.) 20 drink selections programmed, 3 screens are active.
Sceen 1
ANIMO
MAKE YOUR CHOICE
1 2
3 4
5 6
7 8
