5.1.3 Interface / Display

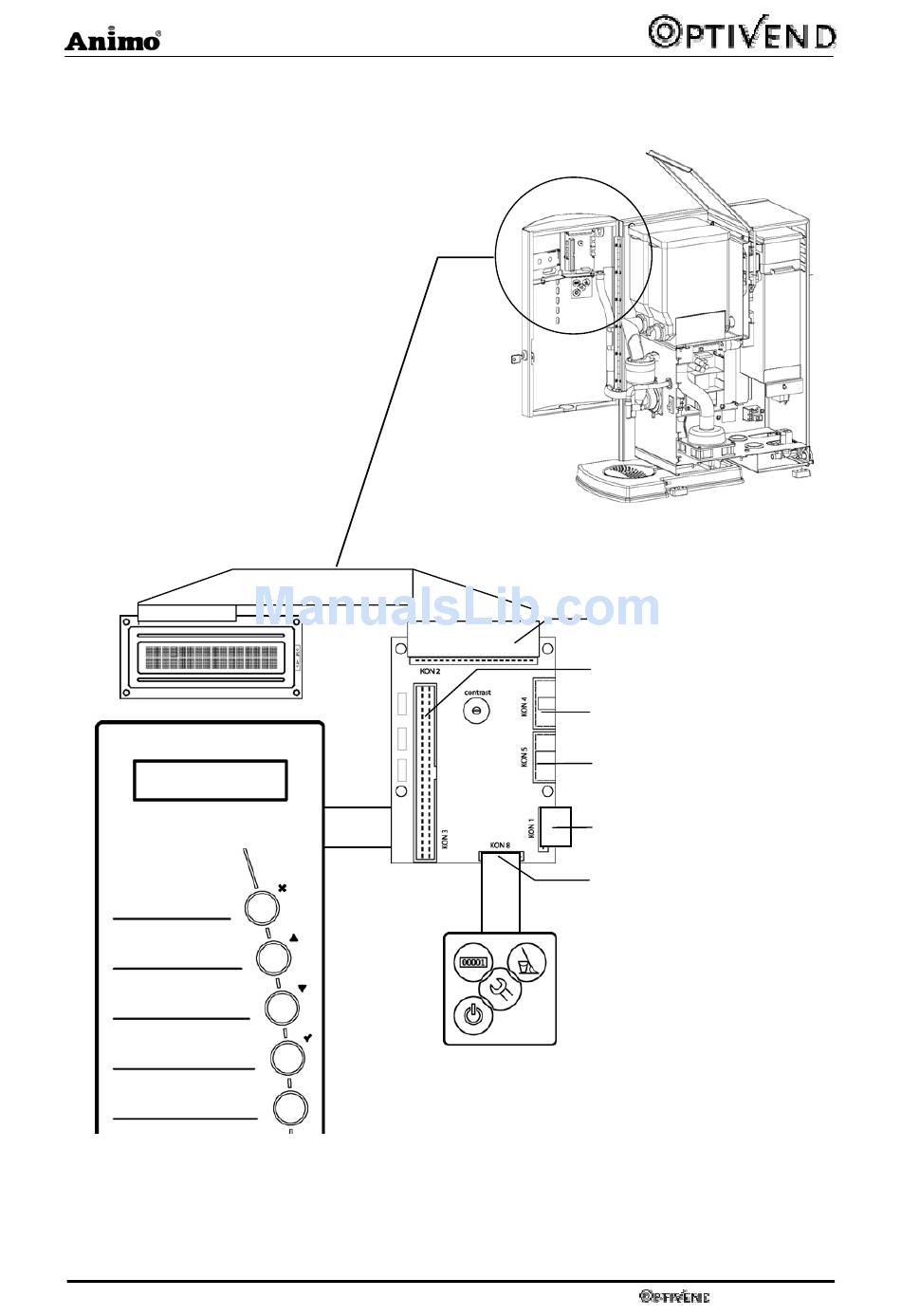

The PP42 interface connects all components in and
on the door and is linked to the main control PP34a
with a flat cable. The contrast of the display can be
measured with the potentiometer.
01/2007 (rev. 6) V2.0
Connector no.
2 – Display
3 – from/to PP34a
4 – not used
5 – Coin mechanism
PP42
1 – Key panel
8 – Service panel
33
Fig. 14
(optional)
Fig. 15
service enclosure
