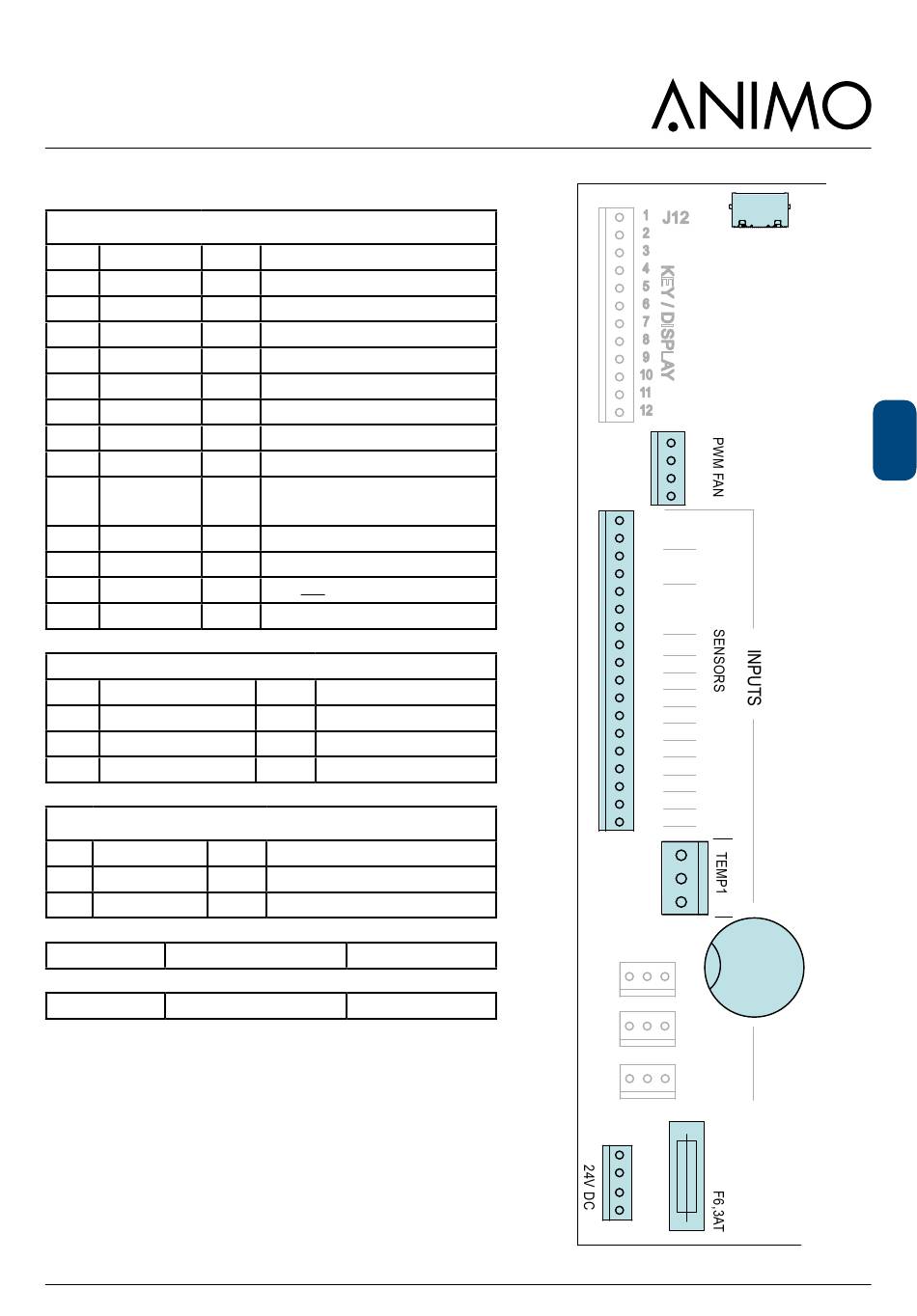

Animo OptiFresh Touch Service Book page 111

OptiFresh (Bean) Touch
Connector J7 (Inputs)
Pin Sensor Colour
1-2 - -
3 LB Drip tray Yellow
4 gND Drip tray Black
5 LSL level low Brown
6 gND level mass green
7 LSH level high White
8 - -
9 AS waste bin Pink
10
Brewer witch grey
11 DS Door 1 Orange Door closed; contact closed
12-15 - -
16 IN3 Door 2 Pink
17-18 - -
Connector J18 / T1 ( NTC sensor)
Pin Sensor
1 NTC sensor
2 -
3 NTC sensor
Connector J1 (Supply)
Pin Colour
1-2 ground (gND) black
3-4 +24 Vdc red
Battery B1
Lithium 3V Type CR2025
Fuse F3
6.3 A slow
2017/09 Rev. 0.0
Notes
Waste bin in position; contact closed
Brewer in home position; contact
closed
Door lock locked; contact closed
Colour Notes
Violet
-
Violet
Notes
art.no. 02816
art.no. 03391
J250
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
J7
T2
FL1
FL2
1
2
3
4
J1
111
HDMI
Main board
1
2
3
4
+5V
GND
LB
GND
LSL
GND
LSH
GND
AS
BS
DS
OM
OM1
IN1
IN2
IN3
GND
24V
+
J18
BATT
J19
J8
J9
F3
EN
