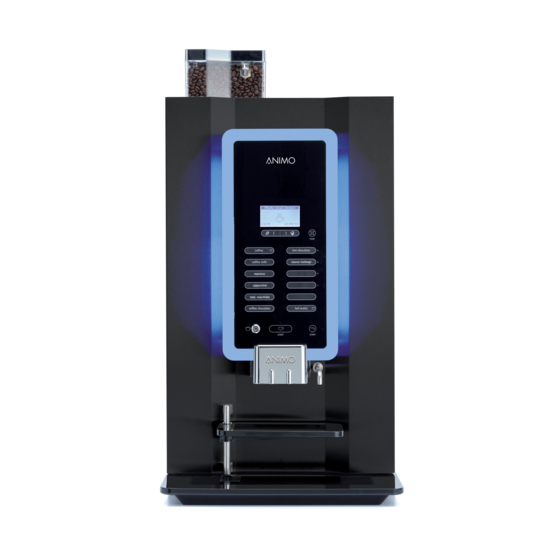

Animo OptiBean Service Book

Hide thumbs Also See for OptiBean:
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version

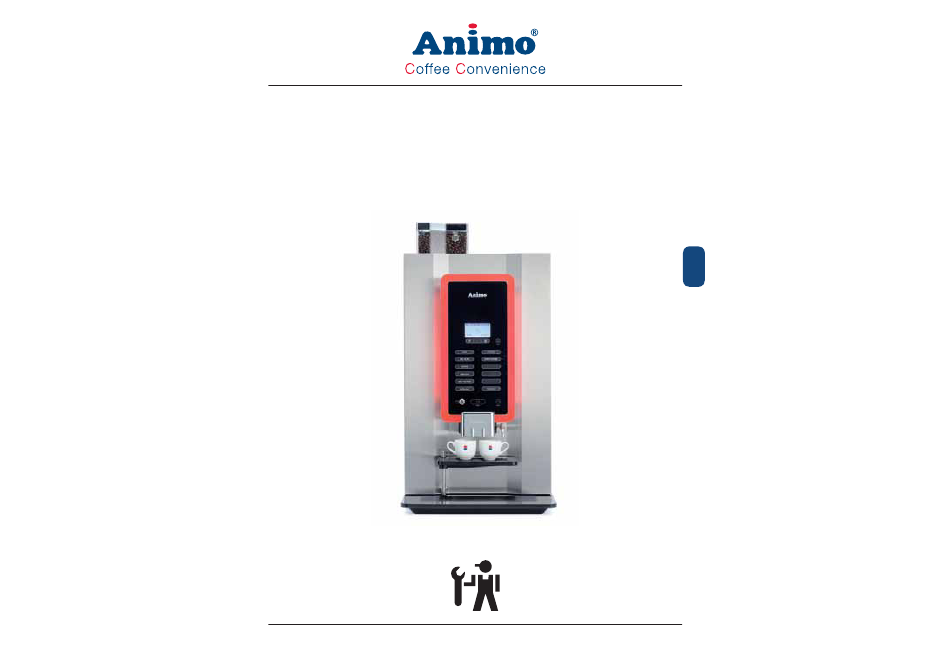

OptiBean
service boek
service book
2011/06 Rev. 0.4
servicehandbuch
manuel de service
1
GB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OptiBean and is the answer not in the manual?

Questions and answers

Related Manuals for Animo OptiBean

Summary of Contents for Animo OptiBean

  • Page 1 OptiBean service boek servicehandbuch service book manuel de service 2011/06 Rev. 0.4...

  • Page 2: Table Of Contents

    OptiBean OptiBean TABLE OF CONTENTS 2. MENU STRUCTURE ......................28 2.1 The Operator and Service menu ..................29 FOREWORD ........................... 5 2.2 The Operator menu ......................30 Free vend [1.0] 1. PRINCIPLES OF OPERATION ....................6 Clock [1.1] 1.1 Water management ......................7 Switching times [1.2] .....................31 1.1.1 Commissioning .......................8...

  • Page 3: Foreword

    OptiBean OptiBean 7. COMPONENT ACCESSIBILITY ...................60 © 2011 Animo® 8. ELECTRONICS OVERVIEW ....................62 All rights reserved. 8.1 Main control 8.1.1 Main circuit board inputs ..................63 No part of this document may be reproduced and/or made public in print, microfi lm, electronic media 8.1.2 Main circuit board outputs...

  • Page 4: Principles Of Operation

    OptiBean OptiBean 1. PRINCIPLES OF OPERATION 1.1 Water management Cold water (Optional) KW3 1 3/2-way NC OPV2 3/2-way NC 3/2-way NC 3/2-way NC NTC sensor 12 bar 3/2-way NC OPV1 3 bar H2-3 water Boiler Chocolate / Topping Coffee Ø 37mm...

  • Page 5: Commissioning

    OptiBean OptiBean 1.1.1 Commissioning measured the set amount of water, the coffee-making process is stopped. +KW1 and DV1 close and DV6 opens. While the brewer turns to the start position [fi ll], the coffee residue (pellet) is ejected into Switch the machine on using the ON/OFF switch. The display illuminates with the text; ‘Position drip the waste bin.

  • Page 6: Components

    OptiBean OptiBean 1.2 Components Component Image Brewer valve DV1 [1000699] Component Image Supplies the brewer with hot water at 10 bar. When the valve is energised, the hot water supply to the brewer is opened. Inlet valve KW1 [1001161] When this closes, the brewer is vented.

  • Page 7: Espresso Group

    OptiBean OptiBean Component Image Component Image Espresso group [1000088] Quick release coupling The brewer is fi lled with ground coffee from the coffee grinder. In this machine various components are used that have quick Then the coffee is compacted, the pump starts and pumps hot release couplings.

  • Page 8: Espresso Group

    OptiBean OptiBean 1.3 Espresso group 1.3.1 Operation The espresso group consists of a drive unit [4.1] and an espresso unit [4]. The ground coffee is measured into the espresso group and then the group closes. Hot water is forced The DC motor [4.1] in the drive unit drives the espresso unit.

  • Page 9: Position Switch

    OptiBean OptiBean 1.3.2 Position switches 1.3.4 Maintenance When the machine is switched on, the software checks Required; the espresso group by running it through a complete - Drip tray cycle. - Cleaning brush In the drive unit there are two microswitches that check - Cleaning tablets [art.

  • Page 10: Coffee Grinder

    OptiBean OptiBean Periodic 1.4 Grinder • The grinder is driven by a powerful DC motor [2.6]. Espresso group The upper grinding disk [2.2] is fi xed. The lower grinding disk [2.3] is driven by a drive belt [2.4]. The grind fi neness can be set with an adjustment screw [2.5]. When the screw is turned clockwise, the Requirements;...

  • Page 11: Service Life

    OptiBean OptiBean 1.4.1 Basic adjustment 1.4.2 Service life The coffee grinder is factory set for an average grind The service life of the ceramic grinding disks is fi neness. approximately 3x longer than steel grinding disks. The service life depends on the type of coffee beans* and is approx.

  • Page 12: Drive Belt Replacement

    OptiBean OptiBean 1.4.4 Drive belt replacement 1.4.5 Cleaning Coffee grinder housing disassembly Depending on the fi neness of the grind and the intensity of use, coffee residue collects in the grinder housing 1. Remove the bean canister and remove the cover plate behind it.

  • Page 13: Adjustment

    OptiBean OptiBean 1.5 Adjustment 1.5.1 Coffee After installation, the machine must always be adjusted for the coffee beans to be used. Use this Required: chapter to help you do this. Once the coffee-making process has been set, the user must always use scales the same bean mixture.

  • Page 14: Espresso

    OptiBean OptiBean 1.5.2 Espresso 1.5.3 Adjustment tips Once the Coffee Creme has been set, there is not much more to be set for the Espresso. Cream layer too low Cream layer perfect Cream layer missing or too light Because the same coffee grind is used for an Espresso as for a Koffie (crème), the coffee-making time for an...

  • Page 15: Menu Structure

    2.16 Cleaning management The operator and service menu of the OptiBean is constructed almost the same as the OptiVend and OptiFresh machines. The menu items where ‘new’ is stated is either a completely new menu item or an extra function.

  • Page 16: The Operator Menu

    OptiBean OptiBean 2.2 The operator menu Operator menu continued... Operator menu Main item Sub-item Range Description Main item Sub-item Range Description 1.3 Recipe counters Recipe 1 Total cups Total count per recipe (free-paid-pots). yes-no Set the machine for free or paid vending.

  • Page 17: The Service Menu

    OptiBean OptiBean 2.3 The service menu Service menu Software menu parameter Key switch Multicup Free Payment system Main item Sub-item Item Range Description switch vend G13 / MDB (off) (on) Cup volume 25-200 ml 120 ml Here you can easily set the volume and 2.1 Quick recipe...

  • Page 18: Recipe Settings [2.3]

    OptiBean OptiBean Service menu continued ... Service menu continued ... Main item Sub-item Item Range Description Main item Sub-item Item Range Description 2.3 Recipe settings <Recipe name> 1 Unit 1 DV 1 WT 0.0-30.0 s Waiting time Water 1 2.3 Recipe settings <Recipe name>...

  • Page 19: Settings [2.4]

    OptiBean OptiBean Service menu continued ... Service menu continued ... Main item Sub-item Item Range Description Main item Sub-item Item Range Description No payment system connected 2.4 Settings Language English Display language selection. 2.4 Settings Coin system None English is factory set.

  • Page 20: Settings (Continued

    OptiBean OptiBean Service menu continued ... Service menu continued ... Main item Sub-item Range Description Main item Sub-item Item Range Description 2.7 Hardware test Inputs Temp Boiler temp °C If this function is set to Yes, the in- 2.4 Settings...

  • Page 21: Hardware Test (Continued)

    The defaults must be loaded when a new circuit board is installed. 0 - 00 : 00 # See Section 3.2 When loading the defaults, the OptiBean model stated on the type IM 4 (cocoa) 2B1A xx00 Model code system plate must be set.
  • Page 22 OptiBean OptiBean Tellers Reading fi les on a computer Service menu continued ... The following fi les can simply be opened on a computer. Main item Sub-item Item Description Counter fi le *.CNT Generated on 2011-01-05, 15:17:02 Button 1 (Coffee) Log fi...

  • Page 23: Cleaning Management [2.16]

    2.14 Installation When a new machine is switched on, the com- The OptiBean model can be changed into one of the following non-standard canister confi gurations. Commissioning missioning menu starts automatically. Follow These models (table page 47) are found in the standard software.

  • Page 24: Standard Canister Confi Guration

    OptiBean OptiBean 3.3.1 Standard canister confi guration 3.3.2 Non-standard canister confi guration* OptiBean 2 OptiBean 3 OptiBean 2 OptiBean 3 Modell 2B1A Modell 2B2A Modell 2B3A Modell 2B4A Modell 2B5A Modell 2B6A Modell 2B7A Modell 2B8A Coffee beans Coffee beans...

  • Page 25: Advanced Recipe Settings

    Before changing the advanced recipe settings (service menu 2.3) you should fi rst know how the various parts such as valves, coffee grinder, ingredient motors and mixers work together, see Section OptiBean 2 OptiBean 3 3.5 Tijdbalk receptinstellingen (timeline recipe settings).

  • Page 26: Software

    OptiBean OptiBean 4. SOFTWARE 1. Download the OptiBean software from the Animo 4.1 Memory card specs extranet site. SELECT FILE/FOLDER 2. Unpack the ZIP fi le and copy all fi les to an SD card. Memory card specs < le name > . MHX 3.

  • Page 27: Service

    The instructions for use, service manuals and software updates are available on the Extranet part of WARNUNG www.animo.eu. If you do not yet access to this, report this via our site for your personal login code. • The machine must never be immersed in or sprayed with water.

  • Page 28: Descaling Instructions

    Check for correct operation Carry out cleaning procedure using cleaning 5.3 Descaling instructions 1001397 tablets. Animo supplies a descaling agent in the following Mixer(s) 10 min. quantities: • Descaling agent 48x 50 g sachets art. no. 49007 Check the motor shaft for dirt and wear.

  • Page 29: Check / Set Pump Pressure

    3. Prepare an acid solution. Read the warnings and 5.4 Check / set the pump pressure instructions for the Animo descaling agent fi rst. Required equipment and tools: 4. Remove the back and connect the hose to the tee of Descaler the fl...

  • Page 30: Drain Set Installation

    OptiBean OptiBean 5.5 Drain set installation TRANSPORT / SHUT DOWN Required equipment and tools: Required equipment and tools: • Crosshead screwdriver • Crosshead screwdriver • Service kit [1001347] • Drip tray of approx. 1.5 L 1. Remove the plastic plug under the brewer valve and 1.

  • Page 31: Component Accessibility

    OptiBean OptiBean 7. COMPONENT ACCESSIBILITY Bean canister Instant canisters Service panel Ingredient motor Bean canister Display Dispensing Ciruit board valve Grinder Dispensing valve Brewer mixer Brewer Mixer Grinder PC board Ventilator Brewer valve Flow meter Waste bin Door switch Pump...

  • Page 32: Electronics Overview

    OptiBean OptiBean 8. ELECTRONICS OVERVIEW 8.1.1 Main circuit board inputs Connector J12 WARNING Connecting cable between the main circuit board and the door circuit board During repair and/or maintenance activities, avoid electrostatic discharges (ESD) to the control. Connector J250 (PWM fan) ●...

  • Page 33: Main Circuit Board Outputs

    OptiBean OptiBean 8.1.3 Main circuit board communication Connector J1 (Supply) Colour Notes Ground (GND) black MIX/BR Ground (GND) black MIX2 +24 Vdc +24 Vdc MIX3 COMMUNICATION RS232 8.1.2 Main circuit board outputs Connector J2 Motor Colour Notes Communicatie 17-18 Brewer...

  • Page 34: Interface / Display

    OptiBean OptiBean 8.2 Interface / Display 8.3 Power supply The interface connects all the components located in The 24 Vdc supply consists of a 24 Vdc – 65 W and on the door and is connected by a cable to the switched power supply and can be accessed by main control.

  • Page 35: Grinder Circuit Board

    OptiBean OptiBean 8.4 Grinder circuit board 230 Vac / 230 Vdc 9. FAULT RECTIFICATION This grinder circuit board converts 230 Vac (alternating WARNING current) into 230 Vdc (direct current) with a rectifi er to drive the grinder motor. ● When there are defects and for (cleaning) activities on the machine, the plug must be removed The IM1 signal (24 Vdc) from the main control is from the wall socket before the machine is opened.

  • Page 36: Fault Analysis

    OptiBean OptiBean 9.3 Fault analysis Display Possible cause Action Display Possible cause Action Check whether the brewer is properly Brewer switches do not return to Out of service positioned in the motor unit. Check brewer the right position when starting the...

  • Page 37: Payment Systems

    Ingredient motor / valve / fan Ingredient motor / valve / fan output (FET) E19 output FET Fig. The OptiBean is available with an optional coin output remains activated defective. Replace control. mechanism suitable for euros (€ 0.05 to 2.00). Other error currencies are available on request.

  • Page 38: Accepting Euros And Tokens

    OptiBean OptiBean 10.1.3 Activate existing coffee coin 10.1.6 Accept only tokens (token) (no euros) The token shown opposite is already programmed as Carry out Section 10.1.3 and 10.1.4 first. standard in the coin mechanism. 1. Open the service menu Set the service menu as described in the following 2.

  • Page 39: Coin Changer (Optional)

    OptiBean OptiBean 10.2 Coin changer (optional) The OptiBean is available with an optional coin changer suitable for euros (€ 0.05 to 2.00). Other currencies are available on request. The changer has 6 change tubes (€ 0.05 / 2x 0.10 / 0.20 / 0.50 / 1.00).
  • Page 40 OptiBean OptiBean 2011/06 Rev. 0.4 2011/06 Rev. 0.4...
  • Page 41 Animo B.V. Dr. A.F. Philipsweg 47 P.O. Box 71 9400 AB Assen The Netherlands Tel. no. +31 (0) 592 376376 Fax no. +31 (0) 592 341751 E-mail: info@animo.nl www.animo.eu Rev. 0.3 05/2011 Art.nr 1001224 2011/06 Rev. 0.4...
