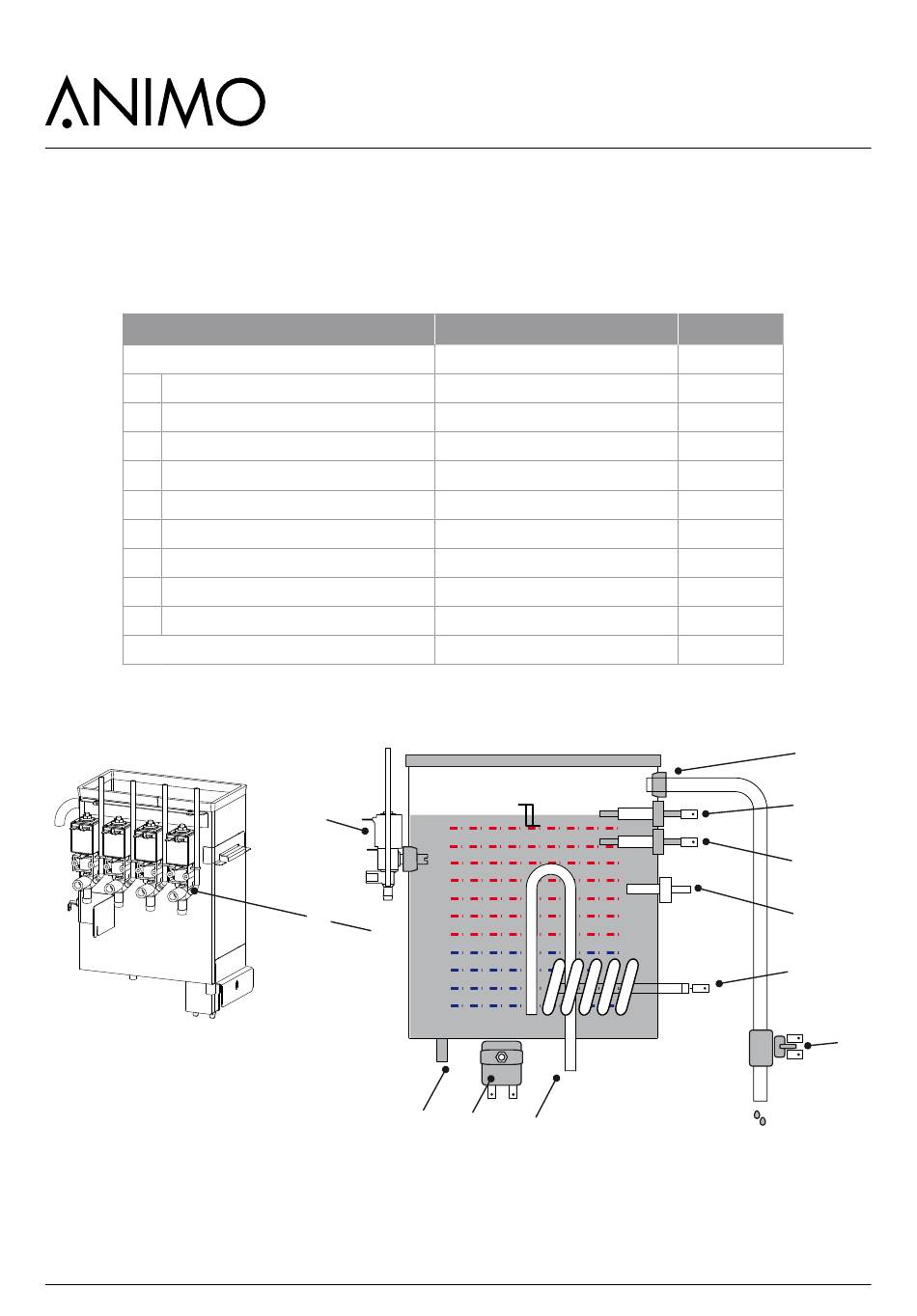

3.8 Boiler system
Turn on the device using the ON/OFF switch. The display will light up. The magnetic valve [1.7] will
open and the hot water reservoir [1] will be filled to the maximum level electrode [1.2]. The heating
element will be switched on when the minimum level electrode [1.3] is in the water. As soon as the
NTC sensor [1.4] measures the set temperature, the heating element [1.6] will be switched off.
Major parts
1. Boiler system
1.1 Overflow tube
1.2 Maximum level electrode
1.3 Minimum level electrode
1.4 Temperature sensor NTC
1.5 Heating element
1.6 Steam thermostat
1.7 Boiler inlet
1.8 Dry boil protection
1.9 Boiler drain
2. Dispensing valve
Technical data
3 Litre
230V 2200W
230V 16A
230V 16A
See 3.8.1 Dispensing valve
2
1
1.9
1.8
48
OptiFresh (Bean) Touch
Material
1.7
st.st.
st.st.
st.st.
st.st.
st.st.
st.st.
1.1
1.2
1.3
1.4
1.5
1.6
