3.4.4 Removing the brewer group

The brewer can be entirely removed for thorough
cleaning and service.

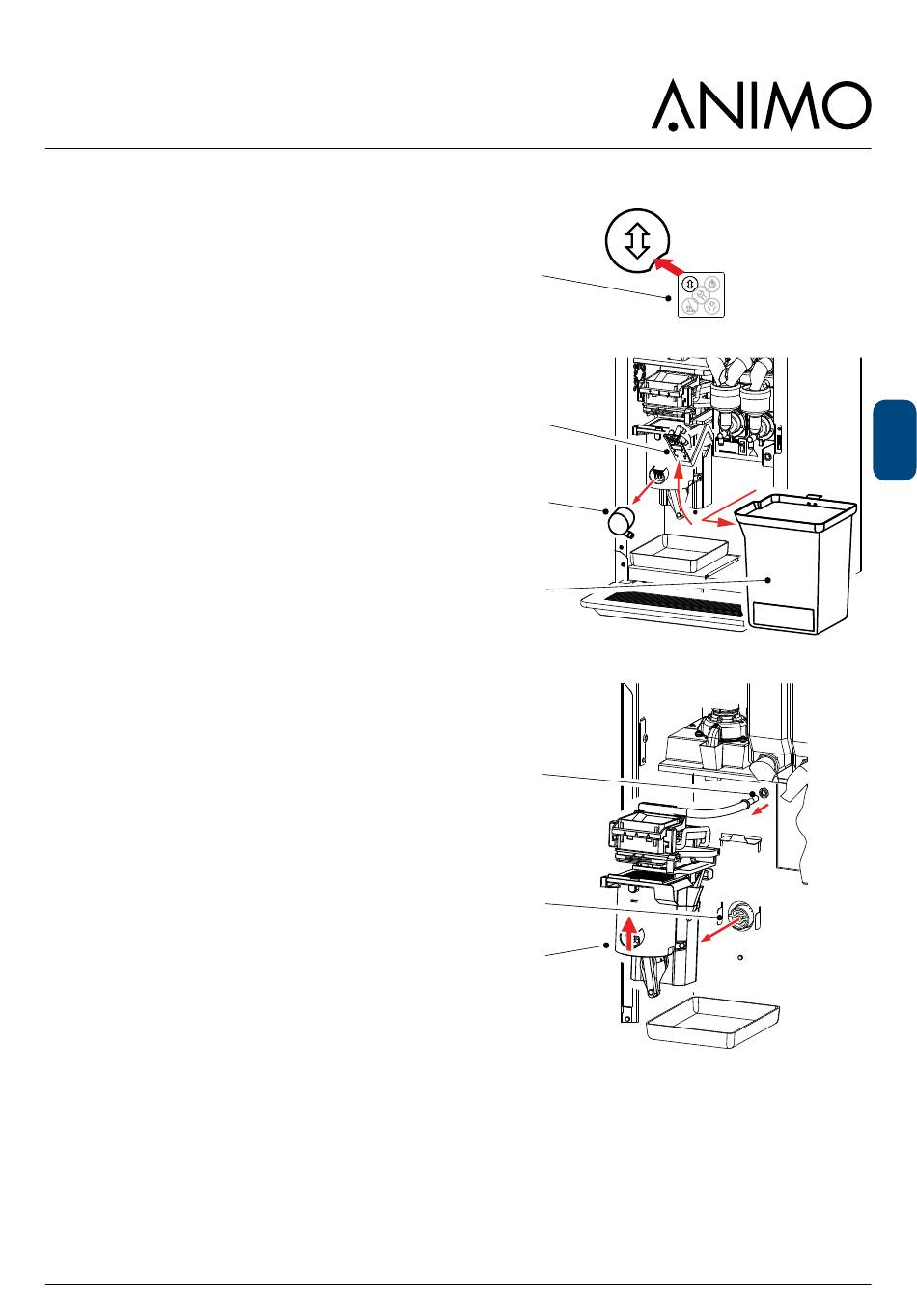

Removing the brewer:
1. Open the door of the machine and press the open/
close brewer button [1]. The brewer will turn into the
'open' position.
2. Remove the coffee sprout [3] outlet from the brewer.
3. Flip up the hot water machine arm [2].
4. Remove the waste bin [4].
5. Remove the water connection [5].
6. First pull the bottom section [6] of the brewer
towards you to release it from the drive mechanism.
7. Lift the brewer [7] from the suspension bracket.
8. The brewer can now be thoroughly cleaned.
9. Position the parts back into the machine in
reverse order. Caution: first secure the brewer into
the suspension bracket and then press the bottom
section back into the drive mechanism. Do not
forget to reconnect the water supply [5]!
10. Press the open/close brewer button [1].
Confirm / answer the display text
[ is filter replaced? ] Yes: OK / No: Cancel.
The brewer will return to its initial position.
The machine is ready for use again.
