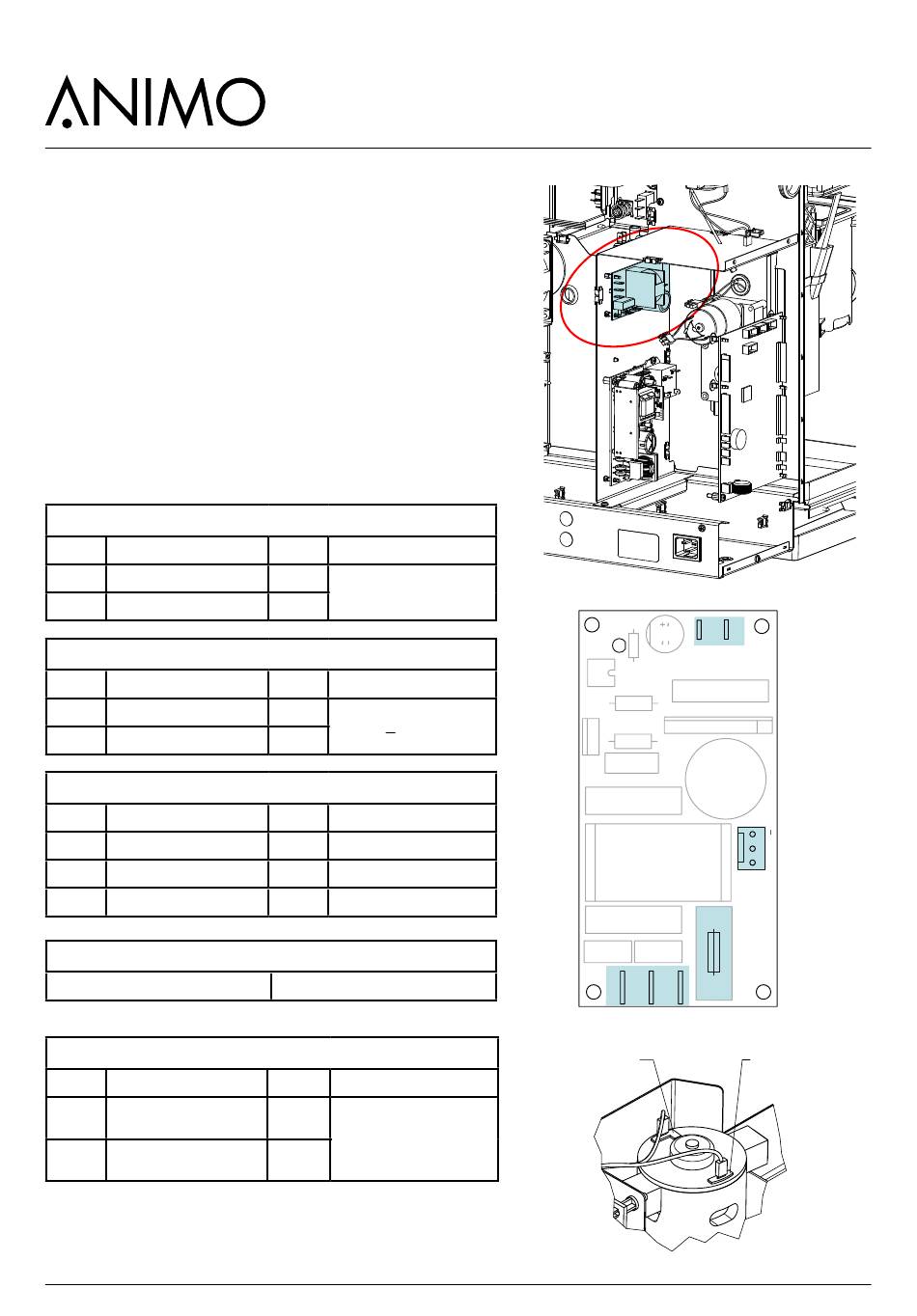

9.4 Grinder circuit board
This grinder circuit board converts 230 Vac (alternating
current) into 230 Vdc (direct current) with a rectifier to
drive the grinder motor. (OptiFresh Bean)
The IM1 signal (24 Vdc) from the main control is
connected to connection J5-J6 (the red LED lights). This
signal controls the grinder motor with a triac.
This control can be accessed by removing the rear wall.
● Fuse 3.15 A Slow art.no. 02580; to protect the
grinder motor.

9.4.1 Connections

24 Vdc ingredient 1 signal
Pin
J5 24Vdc +
J6 24Vdc -
230Vdc
Pin
1 230Vdc +
3 230Vdc -
230Vac
Pin
J2 230 Vac Zero
J3 PE (ground)
J4 230 Vac Phase
Fuse F1
3.15 A slow
Grinder motor 230Vdc
Pin
230Vdc +
230Vdc -
Colour Notes
red
polarity not important
brown
Colour Notes
red
polarity is important!
black
Colour Notes
blue
y/gr/
brown
art.no. 02580
Colour Comments
red
Please pay attention,
for right direction.
+24dc (red wire)
black
according drawing
116
OptiFresh (Bean) Touch
LED
J5 J6
+
J7
F 3,15A T
J2 J3 J4
F1
N PE L
230Vac
+ -
RED BLACK
24Vdc
grinder
signal
Grinder
motor
230Vdc
