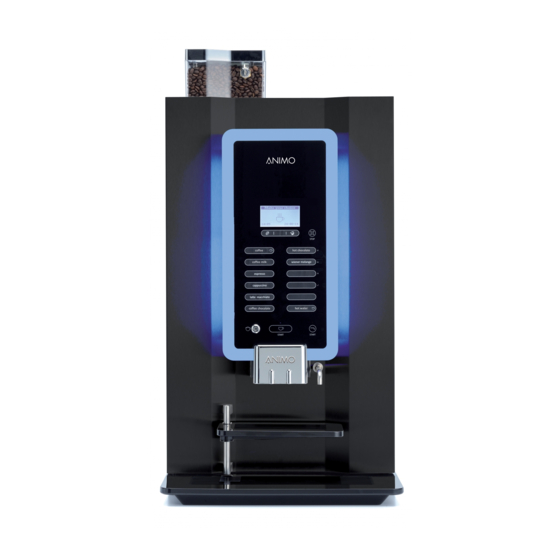

Summary of Contents for Animo OptiBean

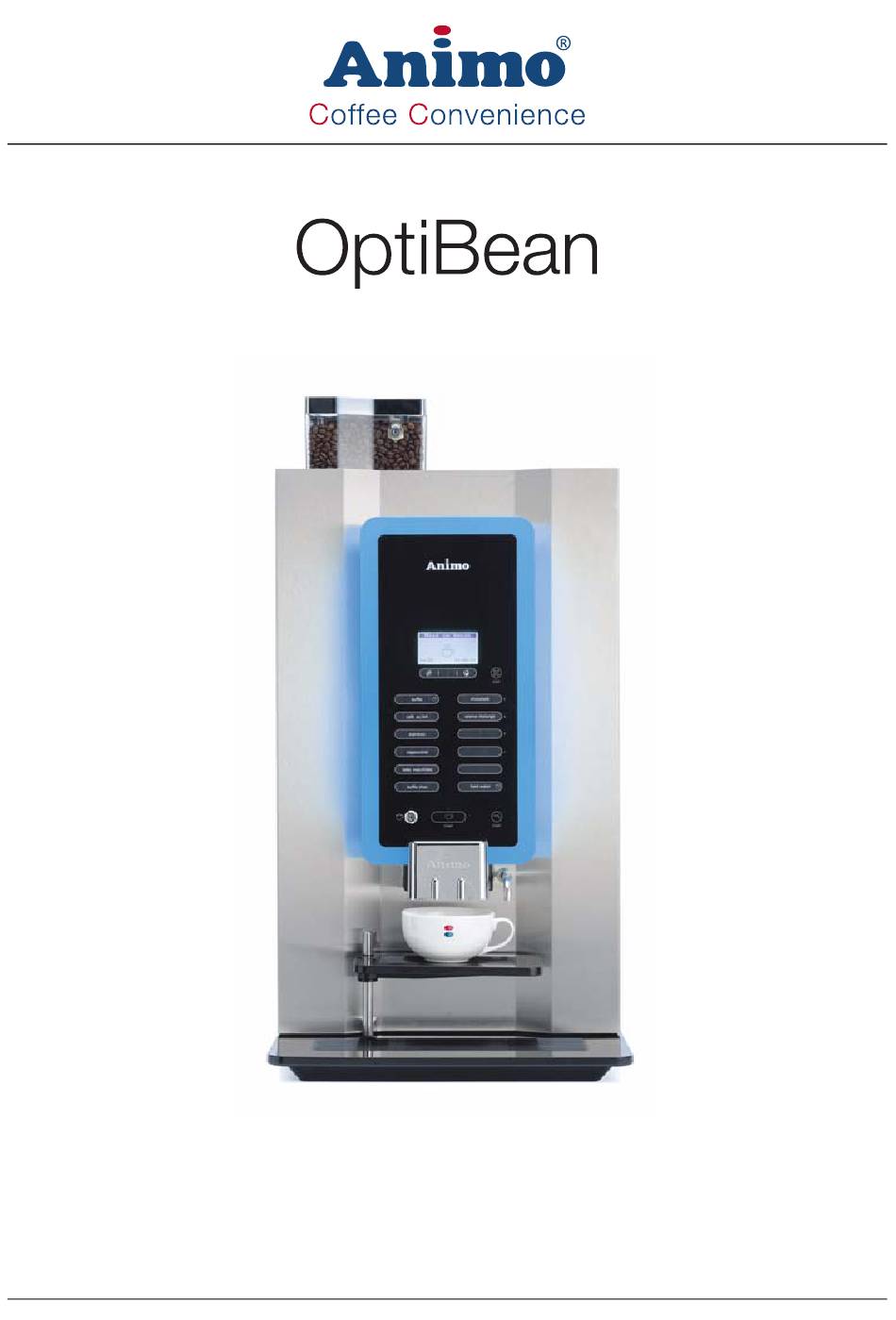

  • Page 1 gebruiksaanwijzing betriebsanleitung user manual mode d’emploi...

  • Page 2: Table Of Contents

    OptiBean TABLE OF CONTENTS Copyright ........................... 3 Safety ............................4 Important information ......................4 Warning signs ........................4 Intended use ........................5 Modifications ........................5 Safety devices ........................6 Safety precautions ......................7 Users ..........................8 Directives ..........................9 Guarantee .......................... 9 2.10 Disposal ..........................
  • Page 3 OptiBean Troubleshooting ........................41 Error messages ........................ 41 Display messages ......................43 Malfunctions ........................43 2011/04...

  • Page 4: Copyright

    This also applies to the corresponding diagrams and/or charts. Animo retains the right to alter parts at any given time without prior or immediate announcement to the consumer. The content of this manual can also be changed without any prior warning. This manual is valid for the standard model of the device.

  • Page 5: Safety

    OptiBean Safety Important information This user manual is intended to help you operate this machine safely and effectively. This manual gives information about installation, operation and maintenance of the equipment. Make sure to read and understand the manual before use.

  • Page 6: Intended Use

    Do not attempt to apply changes that violate local, regional or national regulations. WARNING Make sure the main switch and operating button are freely accessible. Animo is always willing to discuss improving the value of its machines to users by means of modifications or alterations. Refer to ‘Further help and information’. 2011/04...

  • Page 7: Safety Devices

    OptiBean Safety devices 2.5.1 Door switch The door switch (A) automatically switches off the machine when the door is opened. 2.5.2 Temperature safety device The temperature safety device turns off the heating element if the temperature is too high. 2.5.3 On/Off switch The on/off switch (A) puts the machine in the on/off position.

  • Page 8: Safety Precautions

    General safety precautions • Make sure that the environment around the machine is dry, clean and lit sufficiently well; • Keep away from moving parts; • Use Animo replacement parts only. • Use Animo recommended products only. 2.6.2 During installation •...

  • Page 9: Users

    OptiBean • Observe local regulations and use approved materials and parts. • Check if the details on the type plate correspond to the country. 2.6.3 During normal operation • Inspect the machine for damage before use. • Do not tilt the machine.

  • Page 10: Directives

    2.11 Further help and information Animo is committed to provide the highest level of support to users and operators of its products. Contact the dealer for information regarding settings, maintenance and repair work, which is not included in this document. See the back page for the dealer’s details.

  • Page 11: Description

    OptiBean Description Overview 3.1.1 Front A: Bean canister B: Control panel C: Outlet D: Tray E: Drip tray F: Water outlet G: Door lock H: OptiLight 2011/04...
  • Page 12 OptiBean 3.1.2 Back A: Fan B: Water connection C: Power cord 2011/04...
  • Page 13 OptiBean 3.1.3 Inside A: Grinder B: Canisters C: On/off switch D: Brewer E: Mixer F: Waste bins G: Outlet H: Control panel 2011/04...

  • Page 14: Working Principle

    OptiBean Working principle Canisters The canisters contain the coffee beans (A) and instant products (B). Grinder The grinder (A) grinds the coffee beans and transfers the product to the brewer. 2011/04...

  • Page 15: Brewer

    OptiBean Brewer The brewer (A) receives the product from the grinder. The product is made after adding pressurized hot water. The brewer transfers the product to the outlet and transfers the residue to the waste bin. Mixer The mixer (A) mixes the instant products with hot water and transfers the product to the outlet.

  • Page 16: Outlet

    Acoustic pressure < 70 dB(A) 3.8.2 Electrical system Item Specification Voltage 220-240 V Frequency 50-60 Hz Power 2275 W Heating element power 1800 W Fuse 10 A 3.8.3 Power consumption - OptiBean Item Specification Reaching operating 90 Wh temperature 2011/04...
  • Page 17 OptiBean Item Specification Opering mode without 20 Wh dispensing Operating mode with 30 Wh dispensing Standby (every hour) 0 Wh 3.8.4 Capacities - Coffee Item Specification Hour capacity per cup of 120 ml 90 cups Preparation time per cup of 120...

  • Page 18: Display

    OptiBean 3.8.9 Type plate Animo Coffee- and teamak ngsystems ........../ ............ V 50-60Hz ....W ......... MADE IN HOLLAND A: Model number B: Article number C: Supply voltage [V] D: Machine number...

  • Page 19: Configuration Menu

    OptiBean 3.9.2 Icons Icon Name Description Rinsing The machine is rinsing. The machine must be rinsed. Waste Bin Missing The waste bin is missing. Waste Bin Full The waste bin is full. Boiler Heating The boiler is heating up. Boiler Filling The boiler is filling up.
  • Page 20 OptiBean Screen Title Level Quick recipe Operator 3.10.6 Software Operator 3.10.7 PIN-code Service 3.10.8 OptiLight Operator 3.10.9 Contrast Operator 3.10.10 3.10.2 Free dispensing Screen Item Description Free dispensing To activate free dispensing on machines with a payment system [yes|no] 3.10.3...

  • Page 21: Energy Safe Mode

    OptiBean 3.10.7 Software Screen Item Description Software To show the software version. 3.10.8 PIN-code Screen Item Description PIN-code To enter the service menus. 3.10.9 OptiLight Screen Item Description 1.8.0 To set the amount of red in the colour [0-100%]. 1.8.1 Green To set the amount of green in the colour [0-100%].
  • Page 22 OptiBean 9.00 - 11.00 14.00 - 15.00 12.00 - 13.00 If the machine is switched on after being on standby and there is no dispensing, the machine will be in energy safe mode after 30 min. The temperature of the boiler drops every 30 min. with 5 °C. If there is dispensing after 2 hours the machine is reactivated.

  • Page 23: Transport & Installation

    OptiBean Transport & Installation Transport 4.1.1 General When the machine and its additional equipment is delivered.: • Check the machine for possible transport damage. • Make sure the delivery is complete. Refer to the sales and delivery conditions. Installation Caution •...
  • Page 24 OptiBean 4.2.2 Positioning Place the machine at work top on a firm, flat surface. If available, place the machine on a base cabinet. Make sure that the area on the left of the machine is at least 11 cm to open the door.
  • Page 25 OptiBean If necessary, connect the machine (A) with the hose (B) to the stand-alone pump set (E). Make sure that the minimal water pressure is not below 2 bar (at 5 l/min flow pressure). 4.2.4 Electrical connection The machine is provided with an electrically suitable plug as advised and provided by the installer.
  • Page 26 OptiBean 4.2.6 Applying the recipe strips Open the machine door. Remove the screws and remove the cover (A). Insert the recipe strip (B). 4.2.7 Applying the ingredient stickers Open the machine door. Place the stickers as shown (A & B).
  • Page 27 OptiBean Use the recipe buttons (B) to navigate through the menu. Select clock to set the time and date. Select switching time / energy save mode to set the mode. Select OptiLight to set the colour setting. 4.2.9 Using the machine for the first time Plug the machine into an earthed socket.

  • Page 28: Operation

    OptiBean Operation WARNING • Inspect the machine for damage before use. • Do not submerge or hose down the machine. • Do not use sharp objects to operate the buttons. • Keep the operating controls free of dirt. • Unplug the machine and unplug the water supply when the machine is not used for a longer period of time.

  • Page 29: Overview Control Panel

    OptiBean Overview control panel A: Display B: Strength button C: Recipe selection buttons / Navigation buttons / Confirm button / Cancel button D: Jug lock E: Recipe dispensing button F: Water dispensing button G: Dispensing LED H: Stop button Strength button...

  • Page 30: Overview Control Panel (Inside)

    OptiBean Overview control panel (inside) A: Standby button B: Configuration menu button C: Rinsing button D: Cleaning button Opening the door Place the key in the door lock (A). Turn the key and open the machine door. 2011/04...

  • Page 31: Switching On And Off

    OptiBean Switching on and off Open the machine door. Press the on/off switch (A) to switch the machine on or off. Start dispensing cups Place a cup on the tray. Press a recipe or press the hot water button. The dispensing LED starts to flash.

  • Page 32: Filling The Bean Canister

    OptiBean Filling the bean canister If required, unlock the cover of the bean canister. Remove the cover (A). Fill the bean canister. First put the beans in the small section and then in the large section of the bean canister.

  • Page 33: Using The Coin Mechanism (Optional)

    OptiBean 5.10 Using the coin mechanism (optional) Place a cup on the tray. Press a recipe or press the hot water button. Insert the correct amount of money. The dispensing LED starts to flash if sufficient money is inserted. Press the strength button to set the strength.

  • Page 34: Maintenance

    Maintenance Cleaning and disinfecting detergents WARNING • Do not use other chemicals unless it is approved by Animo. • Do not put the machine parts in a dishwasher except for the instant canister. • Dry the canister thoroughly before replacing it.
  • Page 35 OptiBean 6.2.4 Using the rinsing program Open the machine door. Press the rinsing button (A) from the control panel on the inside on the machine. Close the door of the machine. Place a bowl (min. 1.5 l) under the outlet.
  • Page 36 OptiBean 6.2.6 Cleaning the brewer Open the machine door. Switch off the machine. Remove and clean the hood (A). Remove the bean canister. Clean the surface of the brewer with the brush. Replace the hood (A). 6.2.7 Cleaning/Emptying the waste bins Open the machine door.
  • Page 37 OptiBean 6.2.10 Cleaning the mixer Turn the canister’s outlet upwards. Remove the outlet hose from the mixer. Turn the green mounting ring (C) to the right. Take off the mixer housing (B). Pull off the mixer fan (A). Turn the green mounting ring (A) to the right.
  • Page 38 OptiBean 6.2.11 Cleaning the bean canister Close the supply (A) to the grinder. Take out the bean canister (B). Remove the cover (C). Clean and dry the canister. Clean the grinder (D) with the brush. Replace the canister as shown.
  • Page 39 OptiBean 6.2.12 Cleaning the instant canisters Open the machine door. Turn the canister’s outlet upwards (A). Lift the canister from the socket and pull it out from the rotor (B). Remove the cover (C). Clean the instant canister and its parts.
  • Page 40 OptiBean 6.2.13 Cleaning the outlet Open the machine door. Remove the outlet front (A) while holding the tab at the back of the front. Take out the outlet housing (B). Clean the outlet housing. Replace the outlet housing. Replace the outlet front.
  • Page 41 OptiBean Remove the front piece from the outlet arm (F). Clean the parts. 10 Replace the outlet hoses. 2011/04...
  • Page 42 OptiBean Troubleshooting Error messages Problem Possible cause Correction E3 Fill error Boiler is filling up too slowly. Check the water pressure. Turn the water supply tap completely open. Check the connection tube for any kinks. Switch the machine off and on again.
  • Page 43 OptiBean Problem Possible cause Correction E17 MDB error There is no communication Switch the machine off and on between the machine and MDB again. Contact the dealer or serv- payment system. ice engineer. E18 Mixer group FET error Brewer or mixer motor still active Contact the dealer or service engineer.
  • Page 44 OptiBean Display messages Problem Possible cause Correction Out of order boiler filling Boiler is still empty, boiler is not No action required. filling up or is filling up too slowly. Out of order boiler heating The boiler temperature is too low Wait until the boiler temperature because too much water is used.
  • Page 45 Animo B.V. Dr. A. F. Philipsweg 47 P.O. Box 71 9400 AB Assen The Netherlands Tel: +31 (0) 592 376376 Fax: +31 (0) 592 341751 E-mail: info@animo.nl www.animo.eu 2011/04 1001222...
